V. D. Eroshenko, V. E. Andreeva, D. V. Tokarev, O. A. Medennikov, V. A. Klushin, L. N. Fesenko, N. V. Smirnova
{"title":"Composite Materials Based on Thermally Expanded Graphite for Fuel Cell’s Bipolar Plates","authors":"V. D. Eroshenko, V. E. Andreeva, D. V. Tokarev, O. A. Medennikov, V. A. Klushin, L. N. Fesenko, N. V. Smirnova","doi":"10.1134/s1023193523120054","DOIUrl":null,"url":null,"abstract":"<h3 data-test=\"abstract-sub-heading\">Abstract</h3><p>The composite materials based on a thermosetting binder mark SFP and thermally expanded graphite and containing 50–70% of the filler are prepared by the method of hot pressing. It is studied how the physicochemical and mechanical characteristics of the composite depend on the method of filler introduction. The materials prepared by mixing air-dry components are shown to exhibit the high conductivity (up to 195 S/cm) and strength (above 25 mPa), the low interface contact resistance (less than 10 mΩ cm<sup>2</sup>), and the corrosion current not exceeding 1 µA/cm<sup>2</sup>, which allows the high efficiency of energy conversion in SPFC to be reached.</p>","PeriodicalId":760,"journal":{"name":"Russian Journal of Electrochemistry","volume":null,"pages":null},"PeriodicalIF":1.1000,"publicationDate":"2024-01-16","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Russian Journal of Electrochemistry","FirstCategoryId":"5","ListUrlMain":"https://doi.org/10.1134/s1023193523120054","RegionNum":4,"RegionCategory":"工程技术","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q4","JCRName":"ELECTROCHEMISTRY","Score":null,"Total":0}
引用次数: 0
Abstract

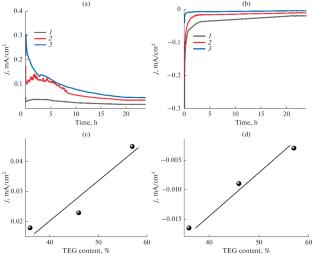

The composite materials based on a thermosetting binder mark SFP and thermally expanded graphite and containing 50–70% of the filler are prepared by the method of hot pressing. It is studied how the physicochemical and mechanical characteristics of the composite depend on the method of filler introduction. The materials prepared by mixing air-dry components are shown to exhibit the high conductivity (up to 195 S/cm) and strength (above 25 mPa), the low interface contact resistance (less than 10 mΩ cm2), and the corrosion current not exceeding 1 µA/cm2, which allows the high efficiency of energy conversion in SPFC to be reached.
期刊介绍：
Russian Journal of Electrochemistry is a journal that covers all aspects of research in modern electrochemistry. The journal welcomes submissions in English or Russian regardless of country and nationality of authors.
