Multi-Parameter Characterization of Liquid-to-Ice Phase Transition Using Bulk Acoustic Waves.

Abstract

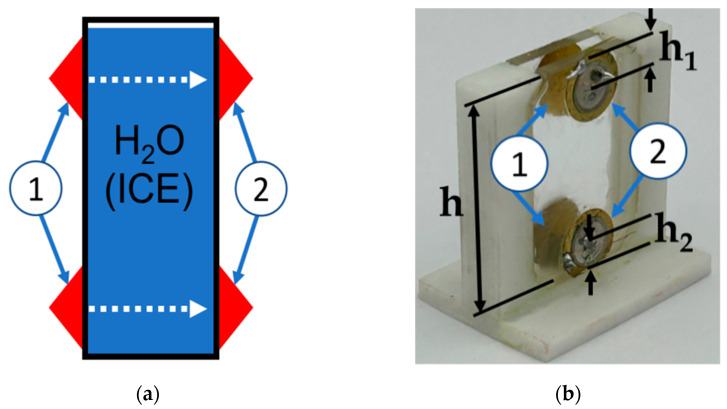

The detection of the liquid-to-ice transition is an important challenge for many applications. In this paper, a method for multi-parameter characterization of the liquid-to-ice phase transition is proposed and tested. The method is based on the fundamental properties of bulk acoustic waves (BAWs). BAWs with shear vertical (SV) or shear horizontal (SH) polarization cannot propagate in liquids, only in solids such as ice. BAWs with longitudinal (L) polarization, however, can propagate in both liquids and solids, but with different velocities and attenuations. Velocities and attenuations for L-BAWs and SV-BAWs are measured in ice using parameters such as time delay and wave amplitude at a frequency range of 1-37 MHz. Based on these measurements, relevant parameters for Rayleigh surface acoustic waves and Poisson's modulus for ice are determined. The homogeneity of the ice sample is also detected along its length. A dual sensor has been developed and tested to analyze two-phase transitions in two liquids simultaneously. Distilled water and a 0.9% solution of NaCl in water were used as examples.
