{"title":"Intestinal distribution of anionic, cationic, and neutral polymer-stabilized nanocarriers measured with a lanthanide (europium) tracer assay","authors":"","doi":"10.1016/j.jconrel.2024.10.006","DOIUrl":null,"url":null,"abstract":"<div><div>Nanocarriers, more commonly called nanoparticles (NPs), have found increasing use as delivery vehicles which increase the oral bioavailability of poorly water-soluble and peptide therapeutics. Therapeutic bioavailability is commonly assessed by measuring plasma concentrations that reflect the absorption kinetics. This bioavailability is a convolution of the gastrointestinal distribution of the NP vehicle, the release rate of the encapsulated therapeutic cargo, and the absorption-metabolism-distribution kinetics of the released therapeutic. The spatiotemporal distribution of the NP vehicle in the gastrointestinal tract is not well studied and is a buried parameter in PK studies used to measure the effectiveness of an NP formulation. This work is a study of the intestinal distribution and fate of orally dosed NPs in male CD-1 mice over 24 h. NPs have identical hydrophobic cores – composed of poly(styrene) homopolymer, a naphthalocyanine dye, and oleate-coated europium oxide colloids – with one of four different surface stabilizers: neutral poly(styrene)-<em>block</em>-poly(ethylene glycol) (PS-b-PEG), moderately negative hydroxypropyl methylcellulose acetate succinate (HPMCAS), highly negative poly(styrene)-<em>block</em>-poly(acrylic acid) (PS-b-PAA), and highly cationic adsorbed chitosan HCl on PS-b-PAA stabilized NPs. NP hydrodynamic diameters are all below 200 nm, with some variation attributable to the molecular properties of the stabilizing polymer. The encapsulated hydrophobic europium oxide colloids do not release soluble europium ions, enabling the use of highly sensitive inductively coupled plasma mass spectrometry (ICP-MS) to detect NP concentrations in digested biological tissues.</div><div>Highly anionically-charged PAA and cationically-charged chitosan stabilized NPs showed statistically significant increased retention compared to the neutral PEG-stabilized NPs at <em>p</em> < 0.05 significance and (1-β) > 0.95 power. HPMCAS-stabilized NPs showed statistically insignificant greater retention than PEG-stabilized NPs, and all NP formulations showed clearance from the intestines within 24 h. Different surface charges preferentially reside in different segments of the intestines, where cationic chitosan-stabilized NPs showed increased retention in the small intestines (ileum) and anionic PAA-stabilized NPs in the large intestines (caecum and colon). Modifying the surface charge of a NP can be used to modulate mucoadhesion, total retention, and intestinal segment specific retention, which enables the rational design of delivery vehicles that maximize residence times in appropriate locations.</div></div>","PeriodicalId":15450,"journal":{"name":"Journal of Controlled Release","volume":null,"pages":null},"PeriodicalIF":10.5000,"publicationDate":"2024-10-12","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of Controlled Release","FirstCategoryId":"3","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S0168365924006692","RegionNum":1,"RegionCategory":"医学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0
Abstract

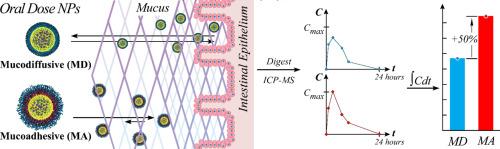

Nanocarriers, more commonly called nanoparticles (NPs), have found increasing use as delivery vehicles which increase the oral bioavailability of poorly water-soluble and peptide therapeutics. Therapeutic bioavailability is commonly assessed by measuring plasma concentrations that reflect the absorption kinetics. This bioavailability is a convolution of the gastrointestinal distribution of the NP vehicle, the release rate of the encapsulated therapeutic cargo, and the absorption-metabolism-distribution kinetics of the released therapeutic. The spatiotemporal distribution of the NP vehicle in the gastrointestinal tract is not well studied and is a buried parameter in PK studies used to measure the effectiveness of an NP formulation. This work is a study of the intestinal distribution and fate of orally dosed NPs in male CD-1 mice over 24 h. NPs have identical hydrophobic cores – composed of poly(styrene) homopolymer, a naphthalocyanine dye, and oleate-coated europium oxide colloids – with one of four different surface stabilizers: neutral poly(styrene)-block-poly(ethylene glycol) (PS-b-PEG), moderately negative hydroxypropyl methylcellulose acetate succinate (HPMCAS), highly negative poly(styrene)-block-poly(acrylic acid) (PS-b-PAA), and highly cationic adsorbed chitosan HCl on PS-b-PAA stabilized NPs. NP hydrodynamic diameters are all below 200 nm, with some variation attributable to the molecular properties of the stabilizing polymer. The encapsulated hydrophobic europium oxide colloids do not release soluble europium ions, enabling the use of highly sensitive inductively coupled plasma mass spectrometry (ICP-MS) to detect NP concentrations in digested biological tissues.
Highly anionically-charged PAA and cationically-charged chitosan stabilized NPs showed statistically significant increased retention compared to the neutral PEG-stabilized NPs at p < 0.05 significance and (1-β) > 0.95 power. HPMCAS-stabilized NPs showed statistically insignificant greater retention than PEG-stabilized NPs, and all NP formulations showed clearance from the intestines within 24 h. Different surface charges preferentially reside in different segments of the intestines, where cationic chitosan-stabilized NPs showed increased retention in the small intestines (ileum) and anionic PAA-stabilized NPs in the large intestines (caecum and colon). Modifying the surface charge of a NP can be used to modulate mucoadhesion, total retention, and intestinal segment specific retention, which enables the rational design of delivery vehicles that maximize residence times in appropriate locations.
