Computed tomography enterography-based deep learning radiomics to predict stratified healing in patients with Crohn's disease: a multicenter study.

IF 4.1 2区 医学 Q1 RADIOLOGY, NUCLEAR MEDICINE & MEDICAL IMAGING Insights into Imaging Pub Date : 2024-11-15 DOI:10.1186/s13244-024-01854-x
Chao Zhu, Kaicai Liu, Chang Rong, Chuanbin Wang, Xiaomin Zheng, Shuai Li, Shihui Wang, Jing Hu, Jianying Li, Xingwang Wu
{"title":"Computed tomography enterography-based deep learning radiomics to predict stratified healing in patients with Crohn's disease: a multicenter study.","authors":"Chao Zhu, Kaicai Liu, Chang Rong, Chuanbin Wang, Xiaomin Zheng, Shuai Li, Shihui Wang, Jing Hu, Jianying Li, Xingwang Wu","doi":"10.1186/s13244-024-01854-x","DOIUrl":null,"url":null,"abstract":"<p><strong>Objectives: </strong>This study developed a deep learning radiomics (DLR) model utilizing baseline computed tomography enterography (CTE) to non-invasively predict stratified healing in Crohn's disease (CD) patients following infliximab (IFX) treatment.</p><p><strong>Methods: </strong>The study included 246 CD patients diagnosed at three hospitals. From the first two hospitals, 202 patients were randomly divided into a training cohort (n = 141) and a testing cohort (n = 61) in a 7:3 ratio. The remaining 44 patients from the third hospital served as the validation cohort. Radiomics and deep learning features were extracted from both the active lesion wall and mesenteric adipose tissue. The most valuable features were selected using univariate analysis and least absolute shrinkage and selection operator (LASSO) regression. Multivariate logistic regression was then employed to construct the radiomics, deep learning, and DLR models. Model performance was evaluated using receiver operating characteristic (ROC) curves.</p><p><strong>Results: </strong>The DLR model achieved an area under the ROC curve (AUC) of 0.948 (95% CI: 0.916-0.980), 0.889 (95% CI: 0.803-0.975), and 0.938 (95% CI: 0.868-1.000) in the training, testing, and validation cohorts, respectively in predicting mucosal healing (MH). Furthermore, the diagnostic performance of DLR model in predicting transmural healing (TH) was 0.856 (95% CI: 0.776-0.935).</p><p><strong>Conclusions: </strong>We have developed a DLR model based on the radiomics and deep learning features of baseline CTE to predict stratified healing (MH and TH) in CD patients following IFX treatment with high accuracies in both testing and external cohorts.</p><p><strong>Critical relevance statement: </strong>The deep learning radiomics model developed in our study, along with the nomogram, can intuitively, accurately, and non-invasively predict stratified healing at baseline CT enterography.</p><p><strong>Key points: </strong>Early prediction of mucosal and transmural healing in Crohn's Disease patients is beneficial for treatment planning. This model demonstrated excellent performance in predicting mucosal healing and had a diagnostic performance in predicting transmural healing of 0.856. CT enterography images of active lesion walls and mesenteric adipose tissue exhibit an association with stratified healing in Crohn's disease patients.</p>","PeriodicalId":13639,"journal":{"name":"Insights into Imaging","volume":"15 1","pages":"275"},"PeriodicalIF":4.1000,"publicationDate":"2024-11-15","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC11568089/pdf/","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Insights into Imaging","FirstCategoryId":"3","ListUrlMain":"https://doi.org/10.1186/s13244-024-01854-x","RegionNum":2,"RegionCategory":"医学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"RADIOLOGY, NUCLEAR MEDICINE & MEDICAL IMAGING","Score":null,"Total":0}
引用次数: 0

Abstract

Objectives: This study developed a deep learning radiomics (DLR) model utilizing baseline computed tomography enterography (CTE) to non-invasively predict stratified healing in Crohn's disease (CD) patients following infliximab (IFX) treatment.

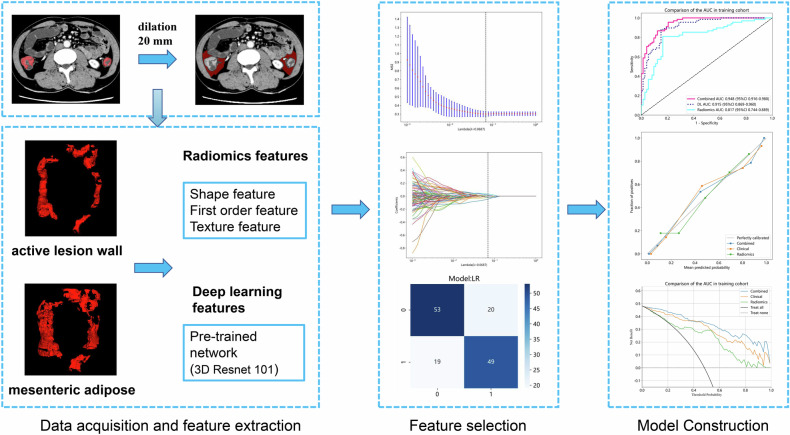

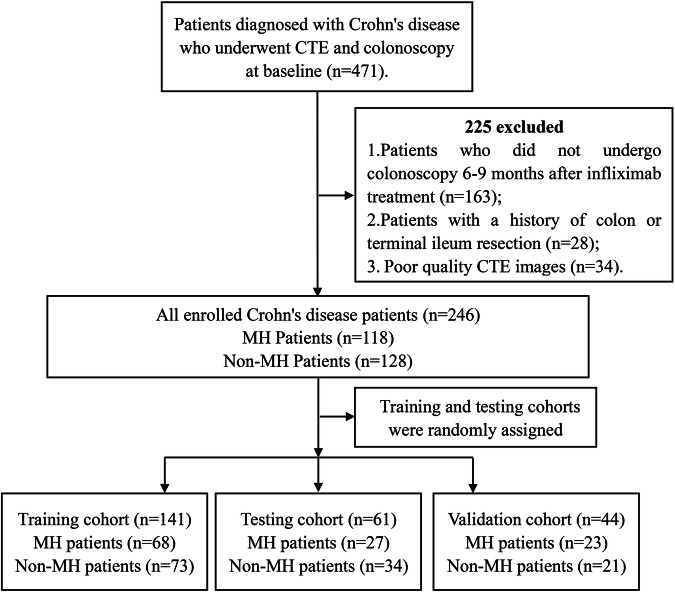

Methods: The study included 246 CD patients diagnosed at three hospitals. From the first two hospitals, 202 patients were randomly divided into a training cohort (n = 141) and a testing cohort (n = 61) in a 7:3 ratio. The remaining 44 patients from the third hospital served as the validation cohort. Radiomics and deep learning features were extracted from both the active lesion wall and mesenteric adipose tissue. The most valuable features were selected using univariate analysis and least absolute shrinkage and selection operator (LASSO) regression. Multivariate logistic regression was then employed to construct the radiomics, deep learning, and DLR models. Model performance was evaluated using receiver operating characteristic (ROC) curves.

Results: The DLR model achieved an area under the ROC curve (AUC) of 0.948 (95% CI: 0.916-0.980), 0.889 (95% CI: 0.803-0.975), and 0.938 (95% CI: 0.868-1.000) in the training, testing, and validation cohorts, respectively in predicting mucosal healing (MH). Furthermore, the diagnostic performance of DLR model in predicting transmural healing (TH) was 0.856 (95% CI: 0.776-0.935).

Conclusions: We have developed a DLR model based on the radiomics and deep learning features of baseline CTE to predict stratified healing (MH and TH) in CD patients following IFX treatment with high accuracies in both testing and external cohorts.

Critical relevance statement: The deep learning radiomics model developed in our study, along with the nomogram, can intuitively, accurately, and non-invasively predict stratified healing at baseline CT enterography.

Key points: Early prediction of mucosal and transmural healing in Crohn's Disease patients is beneficial for treatment planning. This model demonstrated excellent performance in predicting mucosal healing and had a diagnostic performance in predicting transmural healing of 0.856. CT enterography images of active lesion walls and mesenteric adipose tissue exhibit an association with stratified healing in Crohn's disease patients.

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
基于计算机断层扫描肠造影术的深度学习放射组学预测克罗恩病患者的分层愈合:一项多中心研究。
研究目的本研究利用基线计算机断层扫描肠造影术(CTE)开发了一种深度学习放射组学(DLR)模型,用于无创预测英夫利西单抗(IFX)治疗后克罗恩病(CD)患者的分层愈合情况:该研究包括在三家医院确诊的 246 名 CD 患者。前两家医院的 202 名患者按 7:3 的比例随机分为训练组(141 人)和测试组(61 人)。第三家医院的剩余 44 名患者作为验证队列。从活动病灶壁和肠系膜脂肪组织中提取放射组学和深度学习特征。使用单变量分析和最小绝对收缩和选择算子(LASSO)回归法选出最有价值的特征。然后采用多元逻辑回归构建放射组学、深度学习和 DLR 模型。使用接收者操作特征曲线(ROC)对模型性能进行评估:在预测粘膜愈合(MH)方面,DLR 模型在训练队列、测试队列和验证队列中的 ROC 曲线下面积(AUC)分别为 0.948(95% CI:0.916-0.980)、0.889(95% CI:0.803-0.975)和 0.938(95% CI:0.868-1.000)。此外,DLR 模型在预测跨壁愈合(TH)方面的诊断性能为 0.856(95% CI:0.776-0.935):我们根据基线CTE的放射组学和深度学习特征开发了一个DLR模型,用于预测IFX治疗后CD患者的分层愈合(MH和TH),在测试组群和外部组群中的准确率都很高:我们研究中开发的深度学习放射组学模型以及提名图可以直观、准确、无创地预测基线 CT 肠造影的分层愈合:要点:早期预测克罗恩病患者的粘膜和跨膜愈合有利于制定治疗计划。该模型在预测粘膜愈合方面表现出色,在预测跨壁愈合方面的诊断性能为 0.856。活动病灶壁和肠系膜脂肪组织的 CT 肠造影图像与克罗恩病患者的分层愈合有关。
