Agreement on Lesion Presence and Location at Colposcopy.

IF 2.4 4区 医学 Q2 OBSTETRICS & GYNECOLOGY Journal of Lower Genital Tract Disease Pub Date : 2024-01-01 Epub Date: 2023-11-13 DOI:10.1097/LGT.0000000000000786
Kathrine Dyhr Lycke, Jayashree Kalpathy-Cramer, Jose Jeronimo, Silvia de Sanjose, Didem Egemen, Marta Del Pino, Jenna Marcus, Mark Schiffman, Anne Hammer
{"title":"Agreement on Lesion Presence and Location at Colposcopy.","authors":"Kathrine Dyhr Lycke, Jayashree Kalpathy-Cramer, Jose Jeronimo, Silvia de Sanjose, Didem Egemen, Marta Del Pino, Jenna Marcus, Mark Schiffman, Anne Hammer","doi":"10.1097/LGT.0000000000000786","DOIUrl":null,"url":null,"abstract":"<p><strong>Objectives/purpose: </strong>The reproducibility and sensitivity of image-based colposcopy is low, but agreement on lesion presence and location remains to be explored. Here, we investigate the interobserver agreement on lesions on colposcopic images by evaluating and comparing marked lesions on digitized colposcopic images between colposcopists.</p><p><strong>Methods: </strong>Five colposcopists reviewed images from 268 colposcopic examinations. Cases were selected based on histologic diagnosis, i.e., normal/cervical intraepithelial neoplasia (CIN)1 ( n = 50), CIN2 ( n = 50), CIN3 ( n = 100), adenocarcinoma in situ ( n = 53), and cancer ( n = 15). We obtained digitized time-series images every 7-10 seconds from before acetic acid application to 2 minutes after application. Colposcopists were instructed to digitally annotate all areas with acetowhitening or suspect of lesions. To estimate the agreement on lesion presence and location, we assessed the proportion of images with annotations and the proportion of images with overlapping annotated area by at least 4 (4+) colposcopists, respectively.</p><p><strong>Results: </strong>We included images from 241 examinations (1 image from each) with adequate annotations. The proportion with a least 1 lesion annotated by 4+ colposcopists increased by severity of histologic diagnosis. Among the CIN3 cases, 84% had at least 1 lesion annotated by 4+ colposcopists, whereas 54% of normal/CIN1 cases had a lesion annotated. Notably, the proportion was 70% for adenocarcinoma in situ and 71% for cancer. Regarding lesion location, there was no linear association with severity of histologic diagnosis.</p><p><strong>Conclusion: </strong>Despite that 80% of the CIN2 and CIN3 cases were annotated by 4+ colposcopists, we did not find increasing agreement on lesion location with histology severity. This underlines the subjective nature of colposcopy.</p>","PeriodicalId":50160,"journal":{"name":"Journal of Lower Genital Tract Disease","volume":" ","pages":"37-42"},"PeriodicalIF":2.4000,"publicationDate":"2024-01-01","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of Lower Genital Tract Disease","FirstCategoryId":"3","ListUrlMain":"https://doi.org/10.1097/LGT.0000000000000786","RegionNum":4,"RegionCategory":"医学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"2023/11/13 0:00:00","PubModel":"Epub","JCR":"Q2","JCRName":"OBSTETRICS & GYNECOLOGY","Score":null,"Total":0}
引用次数: 0

Abstract

Objectives/purpose: The reproducibility and sensitivity of image-based colposcopy is low, but agreement on lesion presence and location remains to be explored. Here, we investigate the interobserver agreement on lesions on colposcopic images by evaluating and comparing marked lesions on digitized colposcopic images between colposcopists.

Methods: Five colposcopists reviewed images from 268 colposcopic examinations. Cases were selected based on histologic diagnosis, i.e., normal/cervical intraepithelial neoplasia (CIN)1 ( n = 50), CIN2 ( n = 50), CIN3 ( n = 100), adenocarcinoma in situ ( n = 53), and cancer ( n = 15). We obtained digitized time-series images every 7-10 seconds from before acetic acid application to 2 minutes after application. Colposcopists were instructed to digitally annotate all areas with acetowhitening or suspect of lesions. To estimate the agreement on lesion presence and location, we assessed the proportion of images with annotations and the proportion of images with overlapping annotated area by at least 4 (4+) colposcopists, respectively.

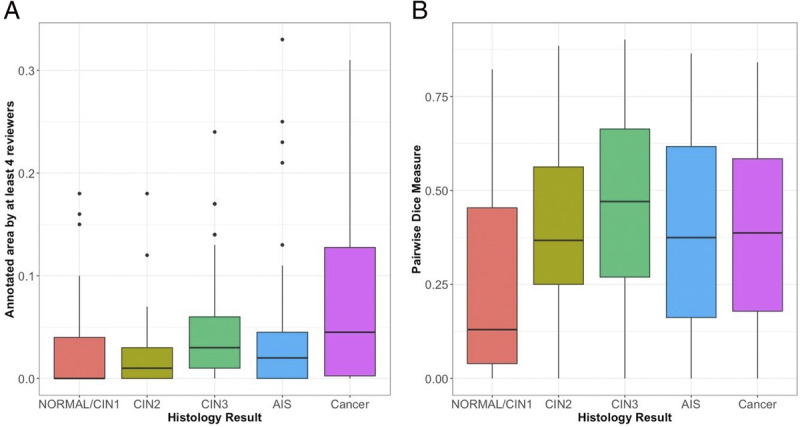

Results: We included images from 241 examinations (1 image from each) with adequate annotations. The proportion with a least 1 lesion annotated by 4+ colposcopists increased by severity of histologic diagnosis. Among the CIN3 cases, 84% had at least 1 lesion annotated by 4+ colposcopists, whereas 54% of normal/CIN1 cases had a lesion annotated. Notably, the proportion was 70% for adenocarcinoma in situ and 71% for cancer. Regarding lesion location, there was no linear association with severity of histologic diagnosis.

Conclusion: Despite that 80% of the CIN2 and CIN3 cases were annotated by 4+ colposcopists, we did not find increasing agreement on lesion location with histology severity. This underlines the subjective nature of colposcopy.

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
阴道镜检查中病变存在和位置的一致。
目的:基于图像的阴道镜检查的重复性和灵敏度较低,但对病变存在和位置的一致意见仍有待探讨。在这里,我们通过评估和比较数字化阴道镜图像上标记的病变,来研究阴道镜图像上的病变在观察者之间的一致性。方法:5名阴道镜医师回顾了268例阴道镜检查的图像。根据组织学诊断选择病例,即正常/宫颈上皮内瘤变(CIN)1型(n = 50)、CIN2型(n = 50)、CIN3型(n = 100)、原位腺癌(n = 53)和癌(n = 15)。我们从醋酸应用前到应用后2分钟每7-10秒获得数字化时间序列图像。阴道镜检查人员被指示对所有有醋酸变白或怀疑病变的区域进行数字注释。为了评估病变存在和位置的一致性,我们分别评估了至少4(4+)位阴道镜检查人员带注释的图像比例和重叠注释区域的图像比例。结果:我们纳入了241张检查的图像(每张1张),并进行了适当的注释。经4名以上阴道镜检查者发现至少1个病变的比例随着组织学诊断的严重程度而增加。在CIN3病例中,84%至少有1个病变被4名以上阴道镜检查人员注释,而54%的正常/CIN1病例有1个病变被注释。值得注意的是,原位腺癌的比例为70%,癌症的比例为71%。关于病变位置,与组织学诊断的严重程度没有线性关系。结论:尽管80%的CIN2和CIN3病例由4名以上阴道镜检查人员注释,但我们没有发现病变位置与组织学严重程度的一致性增加。这强调了阴道镜检查的主观性。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
