The displacement of teeth and stress distribution on periodontal ligament under different upper incisors proclination with clear aligner in cases of extraction: a finite element study.

Abstract

Objectives: To investigate the displacement of dentition and stress distribution on periodontal ligament (PDL) during retraction and intrusion of anterior teeth under different proclination of incisors using clear aligner (CA) in cases involving extraction of the first premolars.

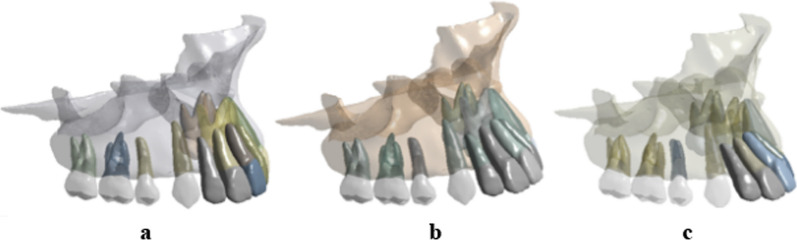

Methods: Models were constructed, consisting of the maxilla, PDLs, CA and maxillary dentition without first premolars. These models were then imported to finite element analysis (FEA) software. The incisor proclination determined the division of the models into three groups: Small torque (ST) with U1-SN = 100°, Middle torque (MT) with U1-SN = 110°, and High torque (HT) with U1-SN = 120°. Following space closure, a 200 g intrusion force was applied at angles of 60°, 70°, 80°, and 90° to the occlusal plane, respectively.

Results: CA therapy caused lingual tipping and extrusion of incisors, mesial tipping and intrusion of canines, and mesial tipping of posterior teeth in each group. As the proclination of incisors increased, the incisors presented more extrusion and minor retraction, and the teeth from the canine to the second molar displayed an increased tendency of intrusion. The peak Von Mises equivalent stress (VMES) value successively decreased from the central incisor to the canine and from the second premolar to the second molar, and the VMES of the second molar was the lowest among the three groups. When the angle between the intrusion force and occlusal plane got larger, the incisors exhibited greater intrusion but minor retraction.

Conclusions: The "roller coaster effect" usually occurred in cases involving premolar extraction with CA, especially in patients with protruded incisors. The force closer to the vertical direction were more effective in achieving incisor intrusion. The stress on PDLs mainly concentrated on the cervix and apex of incisors during the retraction process, indicating a possibility of root resorption.
