Semi-supervised Learning for Generalizable Intracranial Hemorrhage Detection and Segmentation.

IF 8.1 Q1 COMPUTER SCIENCE, ARTIFICIAL INTELLIGENCE Radiology-Artificial Intelligence Pub Date : 2024-05-01 DOI:10.1148/ryai.230077
Emily Lin, Esther L Yuh
{"title":"Semi-supervised Learning for Generalizable Intracranial Hemorrhage Detection and Segmentation.","authors":"Emily Lin, Esther L Yuh","doi":"10.1148/ryai.230077","DOIUrl":null,"url":null,"abstract":"<p><p>Purpose To develop and evaluate a semi-supervised learning model for intracranial hemorrhage detection and segmentation on an out-of-distribution head CT evaluation set. Materials and Methods This retrospective study used semi-supervised learning to bootstrap performance. An initial \"teacher\" deep learning model was trained on 457 pixel-labeled head CT scans collected from one U.S. institution from 2010 to 2017 and used to generate pseudo labels on a separate unlabeled corpus of 25 000 examinations from the Radiological Society of North America and American Society of Neuroradiology. A second \"student\" model was trained on this combined pixel- and pseudo-labeled dataset. Hyperparameter tuning was performed on a validation set of 93 scans. Testing for both classification (<i>n</i> = 481 examinations) and segmentation (<i>n</i> = 23 examinations, or 529 images) was performed on CQ500, a dataset of 481 scans performed in India, to evaluate out-of-distribution generalizability. The semi-supervised model was compared with a baseline model trained on only labeled data using area under the receiver operating characteristic curve, Dice similarity coefficient, and average precision metrics. Results The semi-supervised model achieved a statistically significant higher examination area under the receiver operating characteristic curve on CQ500 compared with the baseline (0.939 [95% CI: 0.938, 0.940] vs 0.907 [95% CI: 0.906, 0.908]; <i>P</i> = .009). It also achieved a higher Dice similarity coefficient (0.829 [95% CI: 0.825, 0.833] vs 0.809 [95% CI: 0.803, 0.812]; <i>P</i> = .012) and pixel average precision (0.848 [95% CI: 0.843, 0.853]) vs 0.828 [95% CI: 0.817, 0.828]) compared with the baseline. Conclusion The addition of unlabeled data in a semi-supervised learning framework demonstrates stronger generalizability potential for intracranial hemorrhage detection and segmentation compared with a supervised baseline. <b>Keywords:</b> Semi-supervised Learning, Traumatic Brain Injury, CT, Machine Learning <i>Supplemental material is available for this article.</i> Published under a CC BY 4.0 license. See also the commentary by Swimburne in this issue.</p>","PeriodicalId":29787,"journal":{"name":"Radiology-Artificial Intelligence","volume":null,"pages":null},"PeriodicalIF":8.1000,"publicationDate":"2024-05-01","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC11140498/pdf/","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Radiology-Artificial Intelligence","FirstCategoryId":"1085","ListUrlMain":"https://doi.org/10.1148/ryai.230077","RegionNum":0,"RegionCategory":null,"ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"COMPUTER SCIENCE, ARTIFICIAL INTELLIGENCE","Score":null,"Total":0}
引用次数: 0

Abstract

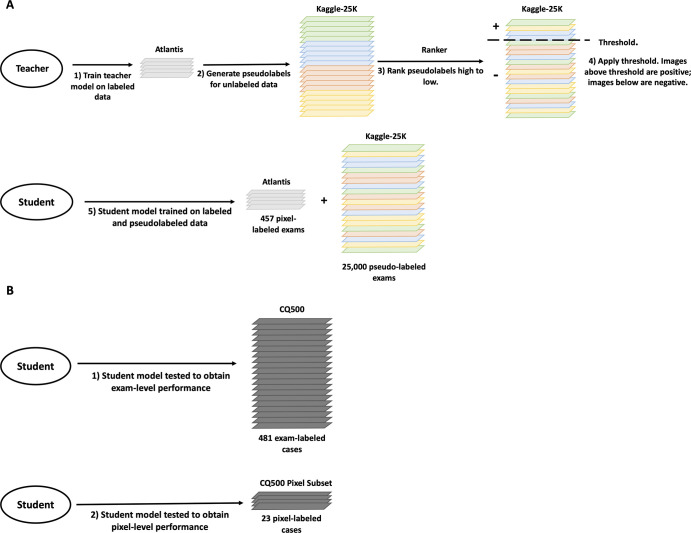

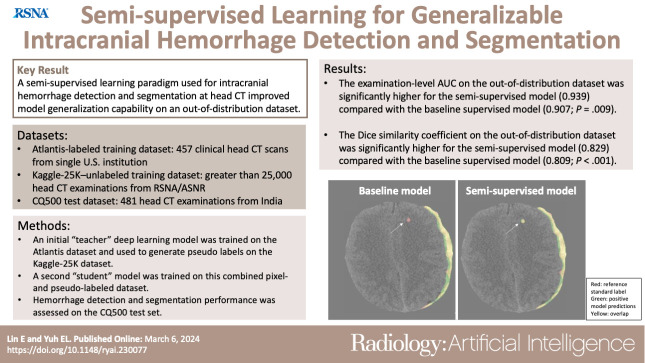

Purpose To develop and evaluate a semi-supervised learning model for intracranial hemorrhage detection and segmentation on an out-of-distribution head CT evaluation set. Materials and Methods This retrospective study used semi-supervised learning to bootstrap performance. An initial "teacher" deep learning model was trained on 457 pixel-labeled head CT scans collected from one U.S. institution from 2010 to 2017 and used to generate pseudo labels on a separate unlabeled corpus of 25 000 examinations from the Radiological Society of North America and American Society of Neuroradiology. A second "student" model was trained on this combined pixel- and pseudo-labeled dataset. Hyperparameter tuning was performed on a validation set of 93 scans. Testing for both classification (n = 481 examinations) and segmentation (n = 23 examinations, or 529 images) was performed on CQ500, a dataset of 481 scans performed in India, to evaluate out-of-distribution generalizability. The semi-supervised model was compared with a baseline model trained on only labeled data using area under the receiver operating characteristic curve, Dice similarity coefficient, and average precision metrics. Results The semi-supervised model achieved a statistically significant higher examination area under the receiver operating characteristic curve on CQ500 compared with the baseline (0.939 [95% CI: 0.938, 0.940] vs 0.907 [95% CI: 0.906, 0.908]; P = .009). It also achieved a higher Dice similarity coefficient (0.829 [95% CI: 0.825, 0.833] vs 0.809 [95% CI: 0.803, 0.812]; P = .012) and pixel average precision (0.848 [95% CI: 0.843, 0.853]) vs 0.828 [95% CI: 0.817, 0.828]) compared with the baseline. Conclusion The addition of unlabeled data in a semi-supervised learning framework demonstrates stronger generalizability potential for intracranial hemorrhage detection and segmentation compared with a supervised baseline. Keywords: Semi-supervised Learning, Traumatic Brain Injury, CT, Machine Learning Supplemental material is available for this article. Published under a CC BY 4.0 license. See also the commentary by Swimburne in this issue.

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
用于颅内出血检测和分割的半监督学习。
"刚刚接受 "的论文经过同行评审,已被接受在《放射学》上发表:人工智能》上发表。这篇文章在以最终版本发表之前,还将经过校对、排版和校对审核。请注意,在制作最终校对稿的过程中,可能会发现影响文章内容的错误。目的 在分布外头部 CT 评估集上开发和评估用于颅内出血检测和分割的半监督学习模型。材料与方法 这项回顾性研究使用半监督学习来引导性能。最初的 "教师 "深度学习模型是在 2010-2017 年间从一家美国机构收集的 457 个像素标记的头部 CT 扫描上训练的,并用于在来自 RSNA 和 ASNR 的 25,000 次检查的单独无标记语料库上生成伪标签。第二个 "学生 "模型是在这个像素与伪标签相结合的数据集上进行训练的。超参数调整在 93 个扫描的验证集上进行。分类(n = 481 次检查)和分割(n = 23 次检查,或 529 张图像)测试在 CQ500(印度进行的 481 次扫描的数据集)上进行,以评估分布外的通用性。使用接收者工作特征曲线下面积 (AUC)、Dice 相似性系数 (DSC) 和平均精确度 (AP) 指标,将半监督模型与仅在标记数据上训练的基线模型进行比较。结果 与基线模型相比,半监督模型在 CQ500 上的检查 AUC 明显更高(0.939 [0.938, 0.940] 对 0.907 [0.906, 0.908])(P = .009)。与基线相比,DSC(0.829 [0.825, 0.833] 对 0.809 [0.803, 0.812])(P = .012)和 Pixel AP(0.848 [0.843, 0.853])对 0.828 [0.817, 0.828])也更高。结论 与监督基线相比,在半监督学习框架中加入无标记数据,可为颅内出血检测和分割提供更强的通用性。©RSNA, 2024.
本文章由计算机程序翻译,如有差异,请以英文原文为准。
求助全文
约1分钟内获得全文 去求助
