Comparison of 3D-printed and laboratory-fabricated Hyrax on stress distribution and displacement of the maxillary complex: a 3D finite element study.

Abstract

Objective: To analyze and compare the effects of a traditional laboratory-fabricated Hyrax expander (T-Hyrax) and two different 3D-printed Hyrax expander models relative to tension points, force distribution, and areas of concentration in the craniofacial complex during maxillary expansion using finite element analysis.

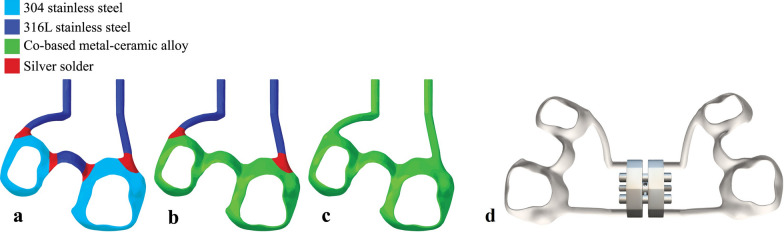

Materials and methods: Three maxillary expanders with similar designs, but various alloys were modeled: a T-Hyrax, a fully printed Hyrax (F-Hyrax), and a hybrid printed Hyrax (H-Hyrax). The stress distributions and magnitude of displacements were assessed with a 5 mm expansion in a symmetrical finite element model. The areas of interest included the teeth, alveolar processes, midpalatal suture, nasal complex, circummaxillary sutures (CS), and the expanders themselves.

Results: The highest stress value (29.2 MPa) was found at the midpalatal suture of the F-Hyrax, while the lowest stress (0.90 MPa) was found at the temporozygomatic suture in the T-Hyrax. On average, the F-Hyrax increased stress at the CS by 24.76% compared with the T-Hyrax and H-Hyrax. The largest displacements were found at the upper incisor (U1) and anterior nasal spine (ANS). The findings indicated an average increase of 12.80% displacement at the CS using the F-Hyrax compared to the T-Hyrax.

Conclusion: The F-Hyrax exerts more stress and displacement on the maxilla than both the T-Hyrax and H-Hyrax, where the weak link appears to be the solder joint.
