Evaluation of Radiation Exposure and Influential Factors in Cone-Beam Computed Tomography (CBCT) of the Head and Abdomen during Interventional Procedures.

IF 2.2 4区 医学 Q2 RADIOLOGY, NUCLEAR MEDICINE & MEDICAL IMAGING Tomography Pub Date : 2024-02-26 DOI:10.3390/tomography10030025
Mingming Li, Weiwei Qu, Dong Zhang, Binyan Zhong, Zhi Li, Zhengyu Jiang, Guanyin Ni, Caifang Ni
{"title":"Evaluation of Radiation Exposure and Influential Factors in Cone-Beam Computed Tomography (CBCT) of the Head and Abdomen during Interventional Procedures.","authors":"Mingming Li, Weiwei Qu, Dong Zhang, Binyan Zhong, Zhi Li, Zhengyu Jiang, Guanyin Ni, Caifang Ni","doi":"10.3390/tomography10030025","DOIUrl":null,"url":null,"abstract":"<p><p>Cone-beam computed tomography (CBCT) is a widely used imaging technique in interventional radiology. Although CBCT offers great advantages in terms of improving comprehension of complex angioarchitectures and guiding therapeutic decisions, its additional degree of radiation exposure has also aroused considerable concern. In this study, we aimed to assess radiation exposure and its influential factors in patients undergoing CBCT scans of the head and abdomen during interventional procedures. A total of 752 patients were included in this retrospective study. Dose area product (DAP) and reference air kerma (RAK) were used as measures of patient dose. The results showed that the median values of DAP were 53.8 (50.5-64.4) Gy⋅cm<sup>2</sup> for head CBCT and 47.4 (39.6-54.3) Gy⋅cm<sup>2</sup> for that of the abdomen. Male gender and body mass index (BMI) were characterized by increased DAP and RAK values in both head and abdominal CBCT scans. Larger FOV size was associated with a higher DAP but a lower RAK value, especially in head CBCT scans. Exposure parameters under automatic exposure control (AEC) also varied according to patient BMI and gender. In conclusion, the patients received slightly higher radiation doses from head CBCT scans than from those applied to the abdomen. BMI, gender, and FOV size were the key factors that influenced the radiation dose administered to the patients during CBCT scans. Our results may help to define and minimize patients' exposure to radiation.</p>","PeriodicalId":51330,"journal":{"name":"Tomography","volume":null,"pages":null},"PeriodicalIF":2.2000,"publicationDate":"2024-02-26","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC10976106/pdf/","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Tomography","FirstCategoryId":"3","ListUrlMain":"https://doi.org/10.3390/tomography10030025","RegionNum":4,"RegionCategory":"医学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"RADIOLOGY, NUCLEAR MEDICINE & MEDICAL IMAGING","Score":null,"Total":0}
引用次数: 0

Abstract

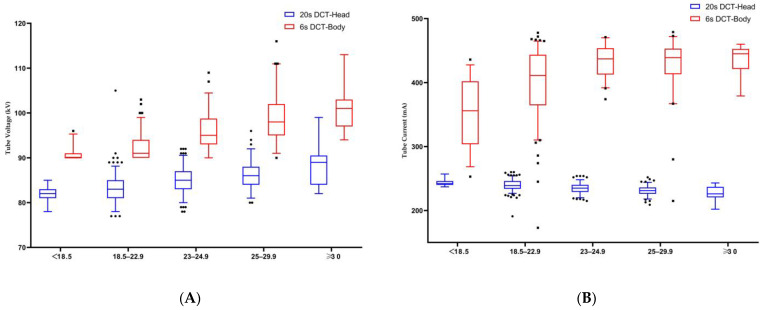

Cone-beam computed tomography (CBCT) is a widely used imaging technique in interventional radiology. Although CBCT offers great advantages in terms of improving comprehension of complex angioarchitectures and guiding therapeutic decisions, its additional degree of radiation exposure has also aroused considerable concern. In this study, we aimed to assess radiation exposure and its influential factors in patients undergoing CBCT scans of the head and abdomen during interventional procedures. A total of 752 patients were included in this retrospective study. Dose area product (DAP) and reference air kerma (RAK) were used as measures of patient dose. The results showed that the median values of DAP were 53.8 (50.5-64.4) Gy⋅cm2 for head CBCT and 47.4 (39.6-54.3) Gy⋅cm2 for that of the abdomen. Male gender and body mass index (BMI) were characterized by increased DAP and RAK values in both head and abdominal CBCT scans. Larger FOV size was associated with a higher DAP but a lower RAK value, especially in head CBCT scans. Exposure parameters under automatic exposure control (AEC) also varied according to patient BMI and gender. In conclusion, the patients received slightly higher radiation doses from head CBCT scans than from those applied to the abdomen. BMI, gender, and FOV size were the key factors that influenced the radiation dose administered to the patients during CBCT scans. Our results may help to define and minimize patients' exposure to radiation.

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
评估介入手术中头部和腹部锥形束计算机断层扫描 (CBCT) 的辐射量和影响因素。
锥形束计算机断层扫描(CBCT)是介入放射学中广泛使用的成像技术。虽然 CBCT 在提高对复杂血管结构的理解和指导治疗决策方面具有很大优势,但其额外的辐射暴露程度也引起了相当大的关注。在这项研究中,我们旨在评估在介入手术中接受 CBCT 头部和腹部扫描的患者的辐射暴露及其影响因素。这项回顾性研究共纳入了 752 名患者。研究采用剂量面积乘积(DAP)和参考空气开尔玛(RAK)来衡量患者的剂量。结果显示,头部 CBCT 的 DAP 中值为 53.8(50.5-64.4)Gy-cm2,腹部 CBCT 的 DAP 中值为 47.4(39.6-54.3)Gy-cm2。在头部和腹部CBCT扫描中,男性性别和体重指数(BMI)的特点是DAP和RAK值增加。FOV尺寸越大,DAP越高,但RAK值越低,尤其是在头部CBCT扫描中。自动曝光控制(AEC)下的曝光参数也因患者的体重指数和性别而异。总之,患者头部 CBCT 扫描的辐射剂量略高于腹部扫描。体重指数、性别和 FOV 大小是影响患者在 CBCT 扫描过程中所受辐射剂量的关键因素。我们的研究结果可能有助于确定并尽量减少患者的辐射量。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
