Bioengineering scalable and drug-responsive in vitro human multicellular non-alcoholic fatty liver disease microtissues encapsulated in the liver extracellular matrix-derived hydrogel.

Abstract

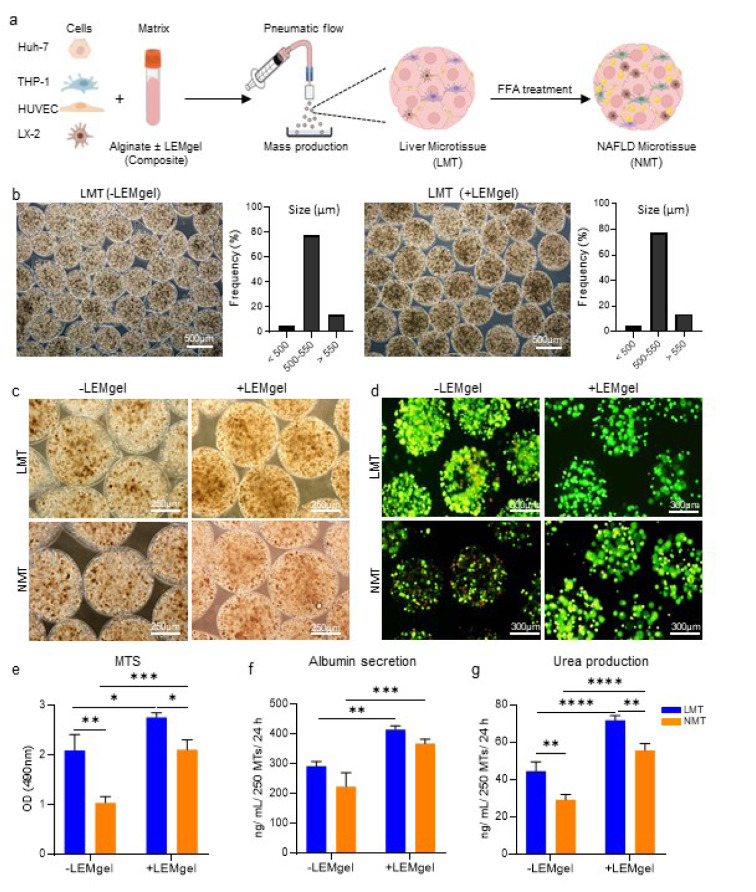

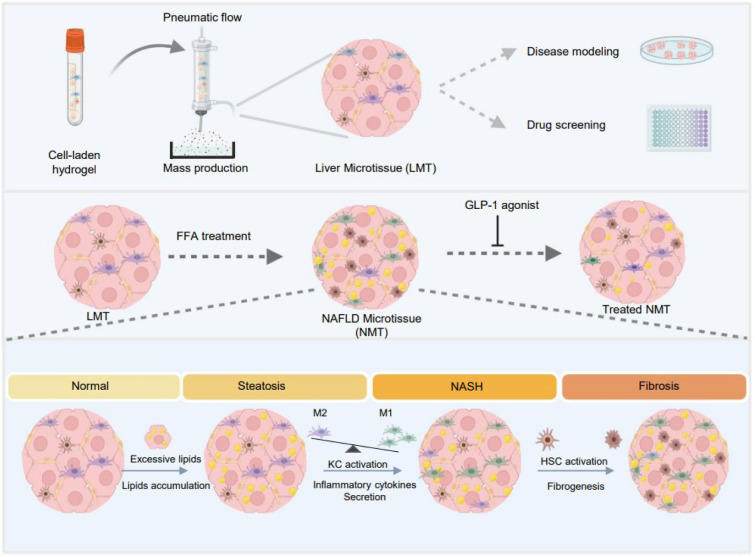

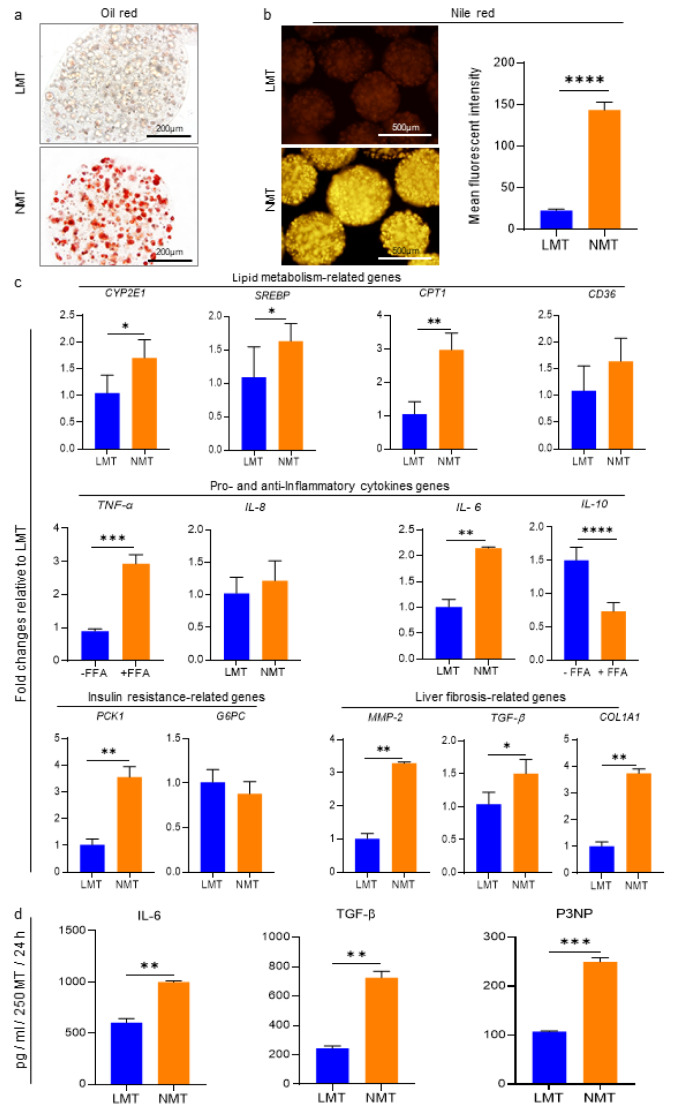

Non-alcoholic fatty liver disease (NAFLD) is a high-prevalence and progressive disorder. Due to lack of reliable in vitro models to recapitulate the consecutive phases, the exact pathogenesis mechanism of this disease and approved therapeutic medications have not been revealed yet. It has been proven that the interplay between multiple hepatic cell types and liver extracellular matrix (ECM) are critical in NAFLD initiation and progression. Herein, a liver microtissue (LMT) consisting of Huh-7, THP-1, and LX-2 cell lines and human umbilical vein endothelial cells (HUVEC), which could be substituted for the main hepatic cells (hepatocyte, Kupffer, stellate, and sinusoidal endothelium, respectively), encapsulated in liver derived ECM-Alginate composite, was bioengineered. When the microtissues were treated with free fatty acids (FFAs) including Oleic acid (6.6×10^-4M) and Palmitic acid (3.3×10^-4M), they displayed the key features of NAFLD, including similar pattern of transcripts for genes involved in lipid metabolism, inflammation, insulin-resistance, and fibrosis, as well as pro-inflammatory and pro-fibrotic cytokines' secretions and intracellular lipid accumulation. Continuing FFAs supplementation, we demonstrated that the NAFLD phenomenon was established on day 3 and progressed to the initial fibrosis stage by day 8. Furthermore, this model was stable until day 12 post FFAs withdrawal on day 3. Moreover, administration of an anti-steatotic drug candidate, Liraglutide (15 μM), on the NAFLD microtissues significantly ameliorated the NAFLD phenomenon. Overall, we bioengineered a drug-responsive, cost-benefit liver microtissues which can simulate the initiation and progression of NAFLD. It is expected that this platform could potentially be used for studying molecular pathogenesis of NAFLD and high-throughput drug screening. See also the graphical abstract(Fig. 1).
