Effectiveness of deep learning-based reconstruction for improvement of image quality and liver tumor detectability in the hepatobiliary phase of gadoxetic acid-enhanced magnetic resonance imaging.
{"title":"Effectiveness of deep learning-based reconstruction for improvement of image quality and liver tumor detectability in the hepatobiliary phase of gadoxetic acid-enhanced magnetic resonance imaging.","authors":"Yukihisa Takayama, Keisuke Sato, Shinji Tanaka, Ryo Murayama, Ryotaro Jingu, Kengo Yoshimitsu","doi":"10.1007/s00261-024-04374-w","DOIUrl":null,"url":null,"abstract":"<p><strong>Purpose: </strong>To evaluate the effectiveness of deep learning-based reconstruction (DLR) in improving image quality and tumor detectability of isovoxel high-resolution breath-hold fat-suppressed T1-weighted imaging (HR-BH-FS-T1WI) in the hepatobiliary phase (HBP) of Gadoxetic acid-enhanced magnetic resonance imaging (Gd-EOB-MRI).</p><p><strong>Materials and methods: </strong>This retrospective evaluated 42 patients with 98 liver tumors who underwent Gd-EOB-MRI between March 2023 and May 2023 using three techniques based on HBP imaging: isovoxel HR-BH-FS-T1WI reconstructed (1) with DLR (BH-DLR +) and (2) without DLR (BH-DLR -) and (3) HR-FS-T1WI scanned with a free-breathing technique using a navigator-echo-triggered technique and DLR (Navi-DLR +). The three techniques were qualitatively and quantitatively compared by the Friedman test and the Bonferroni post-hoc test. Tumor detectability was compared using the McNemar test.</p><p><strong>Results: </strong>BH-DLR + (3.85, average score of two radiologists) showed significantly better qualitative scores for image noise than BH-DLR - (2.84) and Navi-DLR + (3.37) (p < 0.0167), and Navi-DLR + showed significantly better scores than BH-DLR - (p < 0.0167). BH-DLR + (3.77) and BH-DLR - (3.77) showed significantly better qualitative scores for respiratory motion artifact than Navi-DLR + (2.75) (p < 0.0167), but there was no significant difference in scores between BH-DLR + and BH-DLR - (p > 0.0167). BH-DLR + (0.32) and Navi-DLR + (0.33) showed significantly higher lesion-to-nonlesion CR than BH-DLR - (0.29) (p < 0.0167), but there was no significant difference in lesion-to-nonlesion CR between BH-DLR + and Navi-DLR + (p > 0.0167). BH-DLR + (89.8%) showed significantly better tumor detectability than BH-DLR - (76.0%) and Navi-DLR + (77.6%) (p < 0.05).</p><p><strong>Conclusion: </strong>The use of DLR for isovoxel HR-BH-FS-T1WI was effective in improving image quality and tumor detectability.</p>","PeriodicalId":7126,"journal":{"name":"Abdominal Radiology","volume":null,"pages":null},"PeriodicalIF":2.3000,"publicationDate":"2024-10-01","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Abdominal Radiology","FirstCategoryId":"3","ListUrlMain":"https://doi.org/10.1007/s00261-024-04374-w","RegionNum":3,"RegionCategory":"医学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"2024/5/16 0:00:00","PubModel":"Epub","JCR":"Q2","JCRName":"RADIOLOGY, NUCLEAR MEDICINE & MEDICAL IMAGING","Score":null,"Total":0}
引用次数: 0
Abstract
Purpose: To evaluate the effectiveness of deep learning-based reconstruction (DLR) in improving image quality and tumor detectability of isovoxel high-resolution breath-hold fat-suppressed T1-weighted imaging (HR-BH-FS-T1WI) in the hepatobiliary phase (HBP) of Gadoxetic acid-enhanced magnetic resonance imaging (Gd-EOB-MRI).
Materials and methods: This retrospective evaluated 42 patients with 98 liver tumors who underwent Gd-EOB-MRI between March 2023 and May 2023 using three techniques based on HBP imaging: isovoxel HR-BH-FS-T1WI reconstructed (1) with DLR (BH-DLR +) and (2) without DLR (BH-DLR -) and (3) HR-FS-T1WI scanned with a free-breathing technique using a navigator-echo-triggered technique and DLR (Navi-DLR +). The three techniques were qualitatively and quantitatively compared by the Friedman test and the Bonferroni post-hoc test. Tumor detectability was compared using the McNemar test.

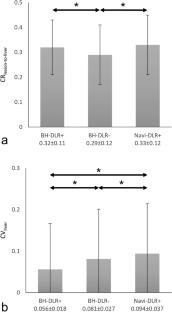

Results: BH-DLR + (3.85, average score of two radiologists) showed significantly better qualitative scores for image noise than BH-DLR - (2.84) and Navi-DLR + (3.37) (p < 0.0167), and Navi-DLR + showed significantly better scores than BH-DLR - (p < 0.0167). BH-DLR + (3.77) and BH-DLR - (3.77) showed significantly better qualitative scores for respiratory motion artifact than Navi-DLR + (2.75) (p < 0.0167), but there was no significant difference in scores between BH-DLR + and BH-DLR - (p > 0.0167). BH-DLR + (0.32) and Navi-DLR + (0.33) showed significantly higher lesion-to-nonlesion CR than BH-DLR - (0.29) (p < 0.0167), but there was no significant difference in lesion-to-nonlesion CR between BH-DLR + and Navi-DLR + (p > 0.0167). BH-DLR + (89.8%) showed significantly better tumor detectability than BH-DLR - (76.0%) and Navi-DLR + (77.6%) (p < 0.05).
Conclusion: The use of DLR for isovoxel HR-BH-FS-T1WI was effective in improving image quality and tumor detectability.
