The Genome Explorer genome browser.

Abstract

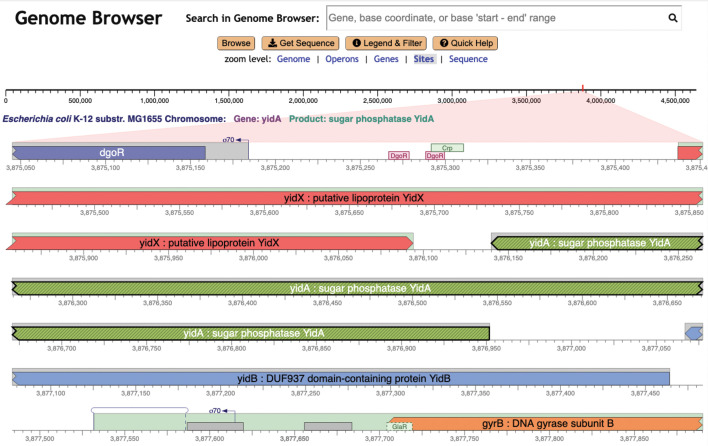

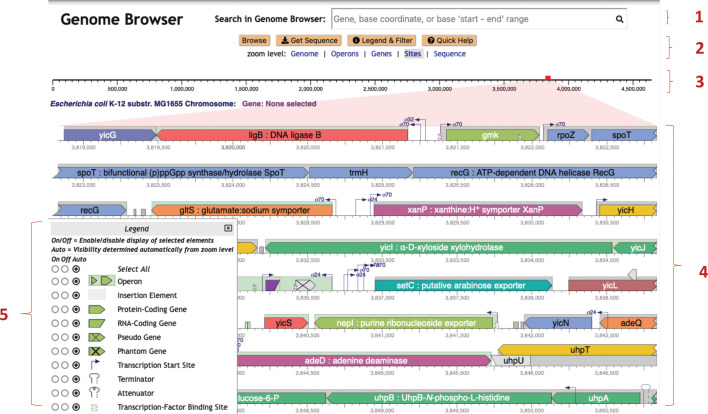

Are two adjacent genes in the same operon? What are the order and spacing between several transcription factor binding sites? Genome browsers are software data visualization and exploration tools that enable biologists to answer questions such as these. In this paper, we report on a major update to our browser, Genome Explorer, that provides nearly instantaneous scaling and traversing of a genome, enabling users to quickly and easily zoom into an area of interest. The user can rapidly move between scales that depict the entire genome, individual genes, and the sequence; Genome Explorer presents the most relevant detail and context for each scale. By downloading the data for the entire genome to the user's web browser and dynamically generating visualizations locally, we enable fine control of zoom and pan functions and real-time redrawing of the visualization, resulting in smoother and more intuitive exploration of a genome than is possible with other browsers. Further, genome features are presented together, in-line, using familiar graphical depictions. In contrast, many other browsers depict genome features using data tracks, which have low information density and can visually obscure the relative positions of features. Genome Explorer diagrams have a high information density that provides larger amounts of genome context and sequence information to be presented in a given-sized monitor than for tracks-based browsers. Genome Explorer provides optional data tracks for the analysis of large-scale data sets and a unique comparative mode that aligns genomes at orthologous genes with synchronized zooming.

Importance: Genome browsers provide graphical depictions of genome information to speed the uptake of complex genome data by scientists. They provide search operations to help scientists find information and zoom operations to enable scientists to view genome features at different resolutions. We introduce the Genome Explorer browser, which provides extremely fast zooming and panning of genome visualizations and displays with high information density.
