Double Aortic Arch: A Comparison of Fetal CMR, Postnatal CT and Surgical Findings.

Abstract

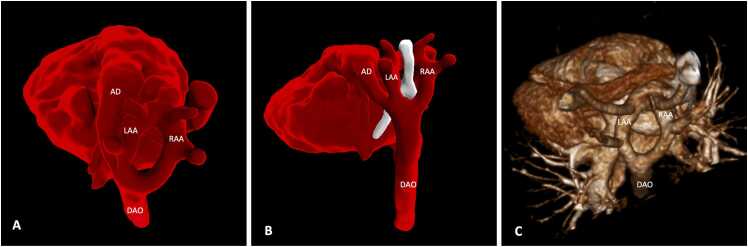

Background: In double aortic arch (DAA) one of the arches can demonstrate atretic portions postnatally, leading to diagnostic uncertainty due to overlap with isolated right aortic arch (RAA) variants. The main objective of this study is to demonstrate the morphological evolution of different DAA phenotypes from prenatal to postnatal life using 3D fetal cardiac magnetic resonance imaging (CMR) and postnatal CT/CMR imaging.

Methods: 3D fetal CMR was undertaken in fetuses with suspected DAA over a six-year period (Jan 2016 - Jan 2022). All cases with surgical confirmation of DAA were retrospectively studied and morphology on fetal CMR was compared to postnatal CT/CMR and surgical findings.

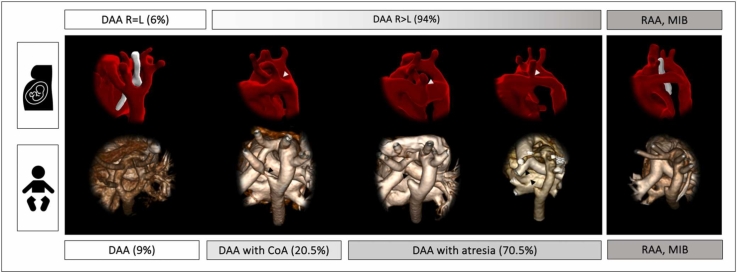

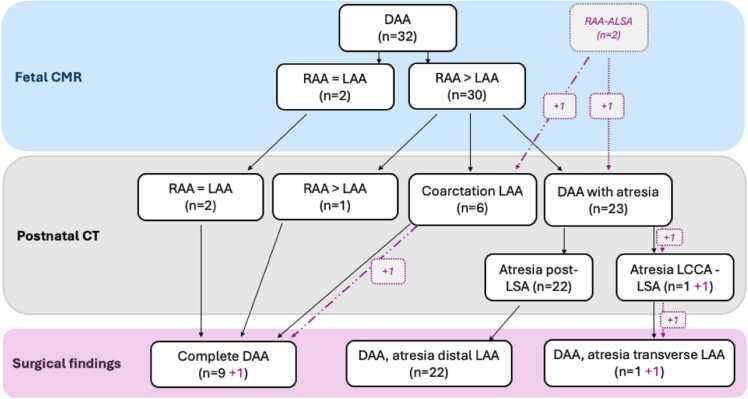

Results: 32 fetuses with surgically confirmed DAA underwent fetal CMR. All demonstrated a complete DAA with left-sided arterial duct. The RAA was dominant in 30/32 (94%). Postnatal CT/CMR was undertaken at median age of 3.3months (IQR 2.0-3.9) demonstrating DAA with patency of both arches in 9/32 (28%), with 6 showing signs of coarctation of the left aortic arch (LAA). The LAA isthmus was not present on CT/CMR in 22/32(69%), the transverse arch between left carotid and left subclavian artery was not present in 1 case.

Conclusions: Fetal CMR provides novel insights into perinatal evolution of DAA. The smaller LAA can develop coarctation or atresia related to postnatal constriction of the arterial duct, making diagnosis of DAA challenging with contrast-enhanced CT/CMR. This highlights the potentially important role for prenatal 3D vascular imaging and might improve intepretation of postnatal imaging.
