Ag2GeS3: A Diamond‐Like Chalcogenide as an IR Nonlinear Optical Material with Outstanding Second‐Harmonic Generation Response

IF 8 2区 材料科学 Q1 MATERIALS SCIENCE, MULTIDISCIPLINARY Advanced Optical Materials Pub Date : 2024-07-04 DOI:10.1002/adom.202401100
Hong Chen, Mao‐Yin Ran, Sheng‐Hua Zhou, Xin‐Tao Wu, Hua Lin
{"title":"Ag2GeS3: A Diamond‐Like Chalcogenide as an IR Nonlinear Optical Material with Outstanding Second‐Harmonic Generation Response","authors":"Hong Chen, Mao‐Yin Ran, Sheng‐Hua Zhou, Xin‐Tao Wu, Hua Lin","doi":"10.1002/adom.202401100","DOIUrl":null,"url":null,"abstract":"Diamond‐like (DL) metal chalcogenides have attracted significant attention in recent years because of their complex structural compositions and exceptional nonlinear optical (NLO) capabilities in the infrared (IR) range. Despite notable advancements in this field, there is still a lack of systematic research on high‐performance and simply composed IR‐NLO chalcogenides with DL structures. In this study, the insightful structural characteristics and IR‐NLO properties of a ternary Ag‐based chalcogenide Ag<jats:sub>2</jats:sub>GeS<jats:sub>3</jats:sub> are investigated for the first time at both experimental and theoretical levels. The compound belongs to the non‐centrosymmetric <jats:italic>Cmc</jats:italic>2<jats:sub>1</jats:sub> space group (No.36) and displays a 3D DL structure comprising highly oriented [AgS<jats:sub>4</jats:sub>] and [GeS<jats:sub>4</jats:sub>] tetrahedra. Due to its distinct structure, the compound may produce significant second harmonic generation (SHG) response (5.6 × AgGaS<jats:sub>2</jats:sub> at 2050 nm), the biggest value reported among Ag‐based IR‐NLO chalcogenides to date, and phase matchability in the IR range with a calculated birefringence of Δ<jats:italic>n</jats:italic> = 0.09 at 2050 nm. According to theoretical calculations, the combined impacts of the distorted [AgS<jats:sub>4</jats:sub>] and [GeS<jats:sub>4</jats:sub>] NLO‐active motifs inside the 3D DL framework provide the SHG tensor <jats:italic>d</jats:italic><jats:sub>24</jats:sub> of Ag<jats:sub>2</jats:sub>GeS<jats:sub>3</jats:sub> at 51.9 pm V<jats:sup>−1</jats:sup> at 2050 nm. The prospective uses of Ag<jats:sub>2</jats:sub>GeS<jats:sub>3</jats:sub> in the field of IR‐NLO are highlighted in this work.","PeriodicalId":116,"journal":{"name":"Advanced Optical Materials","volume":null,"pages":null},"PeriodicalIF":8.0000,"publicationDate":"2024-07-04","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Advanced Optical Materials","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1002/adom.202401100","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

Abstract

Diamond‐like (DL) metal chalcogenides have attracted significant attention in recent years because of their complex structural compositions and exceptional nonlinear optical (NLO) capabilities in the infrared (IR) range. Despite notable advancements in this field, there is still a lack of systematic research on high‐performance and simply composed IR‐NLO chalcogenides with DL structures. In this study, the insightful structural characteristics and IR‐NLO properties of a ternary Ag‐based chalcogenide Ag2GeS3 are investigated for the first time at both experimental and theoretical levels. The compound belongs to the non‐centrosymmetric Cmc21 space group (No.36) and displays a 3D DL structure comprising highly oriented [AgS4] and [GeS4] tetrahedra. Due to its distinct structure, the compound may produce significant second harmonic generation (SHG) response (5.6 × AgGaS2 at 2050 nm), the biggest value reported among Ag‐based IR‐NLO chalcogenides to date, and phase matchability in the IR range with a calculated birefringence of Δn = 0.09 at 2050 nm. According to theoretical calculations, the combined impacts of the distorted [AgS4] and [GeS4] NLO‐active motifs inside the 3D DL framework provide the SHG tensor d24 of Ag2GeS3 at 51.9 pm V−1 at 2050 nm. The prospective uses of Ag2GeS3 in the field of IR‐NLO are highlighted in this work.

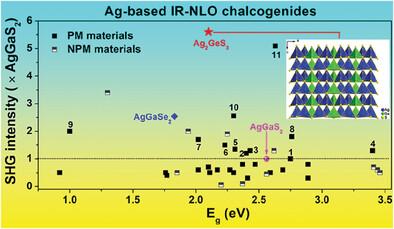

Abstract Image

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
Ag2GeS3:一种具有出色二次谐波发生响应的红外非线性光学材料--类金刚石卤化物
近年来,类金刚石(DL)金属瑀因其复杂的结构组成和在红外(IR)范围内卓越的非线性光学(NLO)能力而备受关注。尽管在这一领域取得了显著进展,但目前仍缺乏对具有 DL 结构的高性能、组成简单的 IR-NLO 卤化金属的系统研究。本研究首次在实验和理论层面研究了一种三元银基掺杂物 Ag2GeS3 的精辟结构特征和 IR-NLO 性能。该化合物属于非中心对称的 Cmc21 空间群(No.36),呈现出由高度取向的 [AgS4] 和 [GeS4] 四面体组成的三维 DL 结构。由于其独特的结构,该化合物可产生显著的二次谐波发生(SHG)响应(2050 纳米波长处为 5.6 × AgGaS2),这是迄今为止所报道的银基红外-NLO 瑀化物中的最大值,并且在红外范围内具有相匹配性,2050 纳米波长处的双折射计算值为 Δn = 0.09。根据理论计算,三维 DL 框架内扭曲的[AgS4]和[GeS4] NLO 活性图案的综合影响使 Ag2GeS3 的 SHG 张量 d24 在 2050 纳米波长处达到 51.9 pm V-1。这项研究强调了 Ag2GeS3 在红外-NLO 领域的应用前景。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
