{"title":"Ultraviolet Nonlinear Optical Single Crystals of A Three-Dimensional Chiral Covalent Framework Containing Te-O-B-O Bonds.","authors":"Miaomiao Xue, Lei Zhang, Xin Meng, Jinglun Yang, Yanping He, Chun-Sing Lee, Jian Zhang, Qichun Zhang","doi":"10.1002/anie.202412289","DOIUrl":null,"url":null,"abstract":"<p><p>Extending covalent organic frameworks (COFs) into crystalline carbon-free covalent backbones is an important strategy to endow these materials with more exotic functions. Integrating metal-free inorganic and organic components into one covalent framework is an effective way to address the issue of poor thermal/solvent stability in the field of nonlinear optics (NLO). However, constructing such structures is very challenging. Here, we linked 3-connected nods (BO3) and 2-connected organic building blocks (Te(Ph)2) together to produce colorless single crystals (size up to 400 µm) of a three-dimensional (3D) chiral covalent framework (CityU-22). The single-crystal X-ray diffraction (SCXRD) analysis reveals that CityU-22 has a non-carbon Te-O-B-O bond-based network with the srs topology. The chiral CityU-22 displays good stability under the treatment of different common solvents or heat (the decomposition temperature above 300 °C). Due to its non-π-conjugated backbone (-Te-O-B-O-), CityU-22 shows an ultraviolet NLO behavior with a second-harmonic generation (SHG) response similar to KH2PO4 (KDP).</p>","PeriodicalId":125,"journal":{"name":"Angewandte Chemie International Edition","volume":null,"pages":null},"PeriodicalIF":16.1000,"publicationDate":"2024-07-22","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Angewandte Chemie International Edition","FirstCategoryId":"92","ListUrlMain":"https://doi.org/10.1002/anie.202412289","RegionNum":1,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0
Abstract

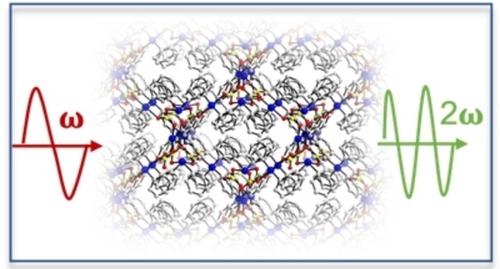

Extending covalent organic frameworks (COFs) into crystalline carbon-free covalent backbones is an important strategy to endow these materials with more exotic functions. Integrating metal-free inorganic and organic components into one covalent framework is an effective way to address the issue of poor thermal/solvent stability in the field of nonlinear optics (NLO). However, constructing such structures is very challenging. Here, we linked 3-connected nods (BO3) and 2-connected organic building blocks (Te(Ph)2) together to produce colorless single crystals (size up to 400 µm) of a three-dimensional (3D) chiral covalent framework (CityU-22). The single-crystal X-ray diffraction (SCXRD) analysis reveals that CityU-22 has a non-carbon Te-O-B-O bond-based network with the srs topology. The chiral CityU-22 displays good stability under the treatment of different common solvents or heat (the decomposition temperature above 300 °C). Due to its non-π-conjugated backbone (-Te-O-B-O-), CityU-22 shows an ultraviolet NLO behavior with a second-harmonic generation (SHG) response similar to KH2PO4 (KDP).
