A Machine Learning Model for Risk Stratification of Postdiagnosis Diabetic Ketoacidosis Hospitalization in Pediatric Type 1 Diabetes: Retrospective Study.

Abstract

Background: Diabetic ketoacidosis (DKA) is the leading cause of morbidity and mortality in pediatric type 1 diabetes (T1D), occurring in approximately 20% of patients, with an economic cost of $5.1 billion/year in the United States. Despite multiple risk factors for postdiagnosis DKA, there is still a need for explainable, clinic-ready models that accurately predict DKA hospitalization in established patients with pediatric T1D.

Objective: We aimed to develop an interpretable machine learning model to predict the risk of postdiagnosis DKA hospitalization in children with T1D using routinely collected time-series of electronic health record (EHR) data.

Methods: We conducted a retrospective case-control study using EHR data from 1787 patients from among 3794 patients with T1D treated at a large tertiary care US pediatric health system from January 2010 to June 2018. We trained a state-of-the-art; explainable, gradient-boosted ensemble (XGBoost) of decision trees with 44 regularly collected EHR features to predict postdiagnosis DKA. We measured the model's predictive performance using the area under the receiver operating characteristic curve-weighted F₁-score, weighted precision, and recall, in a 5-fold cross-validation setting. We analyzed Shapley values to interpret the learned model and gain insight into its predictions.

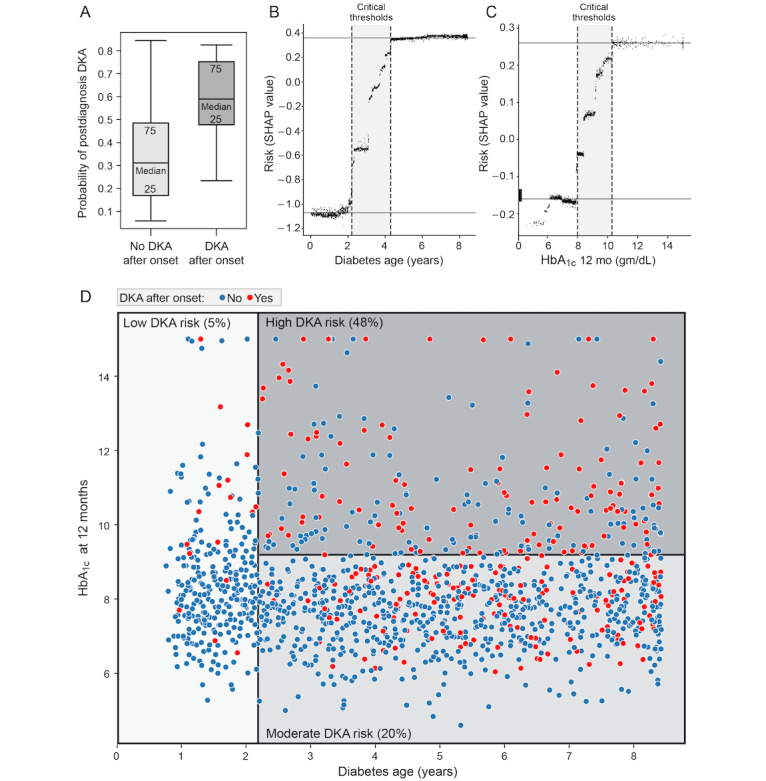

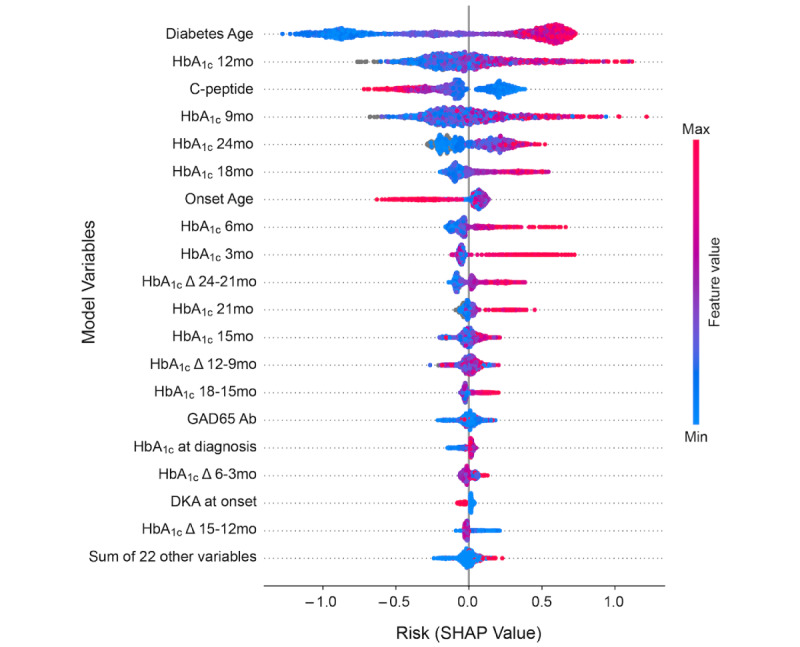

Results: Our model distinguished the cohort that develops DKA postdiagnosis from the one that does not (P<.001). It predicted postdiagnosis DKA risk with an area under the receiver operating characteristic curve of 0.80 (SD 0.04), a weighted F₁-score of 0.78 (SD 0.04), and a weighted precision and recall of 0.83 (SD 0.03) and 0.76 (SD 0.05) respectively, using a relatively short history of data from routine clinic follow-ups post diagnosis. On analyzing Shapley values of the model output, we identified key risk factors predicting postdiagnosis DKA both at the cohort and individual levels. We observed sharp changes in postdiagnosis DKA risk with respect to 2 key features (diabetes age and glycated hemoglobin at 12 months), yielding time intervals and glycated hemoglobin cutoffs for potential intervention. By clustering model-generated Shapley values, we automatically stratified the cohort into 3 groups with 5%, 20%, and 48% risk of postdiagnosis DKA.

Conclusions: We have built an explainable, predictive, machine learning model with potential for integration into clinical workflow. The model risk-stratifies patients with pediatric T1D and identifies patients with the highest postdiagnosis DKA risk using limited follow-up data starting from the time of diagnosis. The model identifies key time points and risk factors to direct clinical interventions at both the individual and cohort levels. Further research with data from multiple hospital systems can help us assess how well our model generalizes to other populations. The clinical importance of our work is that the model can predict patients most at risk for postdiagnosis DKA and identify preventive interventions based on mitigation of individualized risk factors.
