Effectiveness of mixed reality-based rehabilitation on hands and fingers by individual finger-movement tracking in patients with stroke.

Abstract

Background: Mixed reality (MR) is helpful in hand training for patients with stroke, allowing them to fully submerge in a virtual space while interacting with real objects. The recognition of individual finger movements is required for MR rehabilitation. This study aimed to assess the effectiveness of updated MR-board 2, adding finger training for patients with stroke.

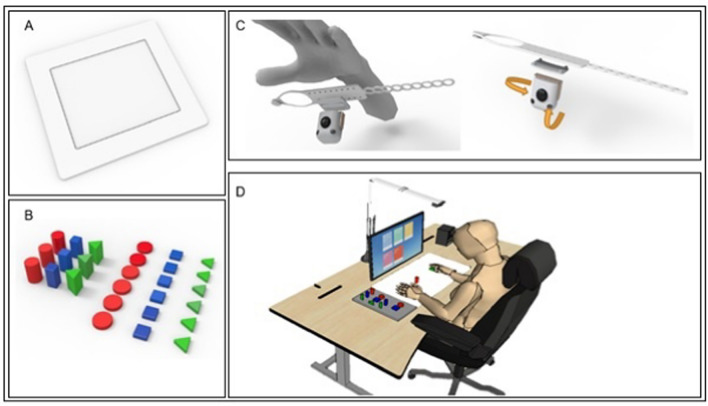

Methods: Twenty-one participants with hemiplegic stroke (10 with left hemiplegia and 11 with right hemiplegia; nine female patients; 56.7 ± 14.2 years of age; and onset of stroke 32.7 ± 34.8 months) participated in this study. MR-board 2 comprised a board plate, a depth camera, plastic-shaped objects, a monitor, a palm-worn camera, and seven gamified training programs. All participants performed 20 self-training sessions involving 30-min training using MR-board 2. The outcome measurements for upper extremity function were the Fugl-Meyer assessment (FMA) upper extremity score, repeated number of finger flexion and extension (Repeat-FE), the thumb opposition test (TOT), Box and Block Test score (BBT), Wolf Motor Function Test score (WMFT), and Stroke Impact Scale (SIS). One-way repeated measures analysis of variance and the post hoc test were applied for the measurements. MR-board 2 recorded the fingers' active range of motion (AROM) and Dunnett's test was used for pairwise comparisons.

Results: Except for the FMA-proximal score (p = 0.617) and TOT (p = 0.005), other FMA scores, BBT score, Repeat-FE, WMFT score, and SIS stroke recovery improved significantly (p < 0.001) during MR-board 2 training and were maintained until follow-up. All AROM values of the finger joints changed significantly during training (p < 0.001).

Conclusions: MR-board 2 self-training, which includes natural interactions between humans and computers using a tangible user interface and real-time tracking of the fingers, improved upper limb function across impairment, activity, and participation. MR-board 2 could be used as a self-training tool for patients with stroke, improving their quality of life.

Trial registration number: This study was registered with the Clinical Research Information Service (CRIS: KCT0004167).
