Decomposition of Mixed Rare Earth Concentrates Using Solid KOH

IF 2.1 4区 材料科学 Q3 MATERIALS SCIENCE, MULTIDISCIPLINARY JOM Pub Date : 2024-09-12 DOI:10.1007/s11837-024-06802-0
Chuxuan Deng, Xiaowei Zhang, Jianfei Li, Yanhong Hu, Zhaogang Liu, Jinxiu Wu, Xiaodong Wang, Shuang Wang
{"title":"Decomposition of Mixed Rare Earth Concentrates Using Solid KOH","authors":"Chuxuan Deng, Xiaowei Zhang, Jianfei Li, Yanhong Hu, Zhaogang Liu, Jinxiu Wu, Xiaodong Wang, Shuang Wang","doi":"10.1007/s11837-024-06802-0","DOIUrl":null,"url":null,"abstract":"<p>The Bayan Obo mixed rare earth concentrate, characterized by its complex composition and difficult-to-decompose bastnaesite, poses significant industrial processing challenges. Traditional methods using sulfuric acid and sodium hydroxide lead to environmental pollution and resource wastage. This article introduces a novel decomposition method using solid potassium hydroxide (KOH). Thermodynamic calculations indicate that reactions with KOH are spontaneous between 298 K and 573 K, making the decomposition of rare earth minerals and fluorite feasible. Studies using TG-DSC, XRD, SEM-EDS, and FT-IR reveal that, under the action of KOH, REFCO<sub>3</sub> is decomposed into RE(OH)<sub>3</sub>. As the temperature increases, RE(OH)<sub>3</sub> decomposes into rare earth oxides, and REPO<sub>4</sub> reacts with KOH to form K<sub>3</sub>PO<sub>4</sub>. Under the conditions of roasting of 240°C, 60 min, and solid–alkali ratio of 1:1, a rare earth decomposition rate of over 96% has been achieved. Decomposition rates for phosphorus and fluorine reached 75.61% and 95.74%, respectively. The kinetic results of the roasting reaction were: <i>E</i> = 21.7 kJ mol<sup>−1</sup> and <i>n</i> = 2.12 between 180°C and 250°C. This method achieves high recovery rates for fluorine and phosphorus, and enables direct extraction of potassium, phosphorus, and other elements from waste solutions for fertilizer production. These aspects underscore its significance in environmental protection and comprehensive utilization.</p>","PeriodicalId":605,"journal":{"name":"JOM","volume":"17 1","pages":""},"PeriodicalIF":2.1000,"publicationDate":"2024-09-12","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"JOM","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1007/s11837-024-06802-0","RegionNum":4,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q3","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

Abstract

The Bayan Obo mixed rare earth concentrate, characterized by its complex composition and difficult-to-decompose bastnaesite, poses significant industrial processing challenges. Traditional methods using sulfuric acid and sodium hydroxide lead to environmental pollution and resource wastage. This article introduces a novel decomposition method using solid potassium hydroxide (KOH). Thermodynamic calculations indicate that reactions with KOH are spontaneous between 298 K and 573 K, making the decomposition of rare earth minerals and fluorite feasible. Studies using TG-DSC, XRD, SEM-EDS, and FT-IR reveal that, under the action of KOH, REFCO3 is decomposed into RE(OH)3. As the temperature increases, RE(OH)3 decomposes into rare earth oxides, and REPO4 reacts with KOH to form K3PO4. Under the conditions of roasting of 240°C, 60 min, and solid–alkali ratio of 1:1, a rare earth decomposition rate of over 96% has been achieved. Decomposition rates for phosphorus and fluorine reached 75.61% and 95.74%, respectively. The kinetic results of the roasting reaction were: E = 21.7 kJ mol−1 and n = 2.12 between 180°C and 250°C. This method achieves high recovery rates for fluorine and phosphorus, and enables direct extraction of potassium, phosphorus, and other elements from waste solutions for fertilizer production. These aspects underscore its significance in environmental protection and comprehensive utilization.

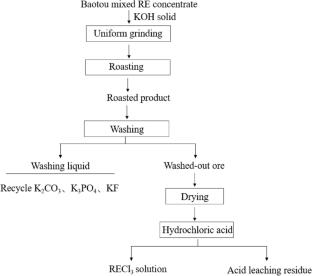

Abstract Image

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
使用固体 KOH 分解混合稀土精矿
巴彦奥博混合稀土精矿的特点是成分复杂且难以分解,给工业加工带来了巨大挑战。使用硫酸和氢氧化钠的传统方法会造成环境污染和资源浪费。本文介绍了一种使用固体氢氧化钾(KOH)的新型分解方法。热力学计算表明,在 298 K 至 573 K 之间,与 KOH 的反应是自发的,因此分解稀土矿物和萤石是可行的。利用 TG-DSC、XRD、SEM-EDS 和 FT-IR 进行的研究表明,在 KOH 的作用下,REFCO3 分解为 RE(OH)3。随着温度的升高,RE(OH)3 分解成稀土氧化物,REPO4 与 KOH 反应生成 K3PO4。在 240°C、60 分钟和固碱比为 1:1 的焙烧条件下,稀土分解率超过 96%。磷和氟的分解率分别达到 75.61% 和 95.74%。焙烧反应的动力学结果为在 180°C 至 250°C 之间,E = 21.7 kJ mol-1 和 n = 2.12。该方法实现了氟和磷的高回收率,并能从废液中直接提取钾、磷和其他元素用于化肥生产。这些方面都凸显了该方法在环境保护和综合利用方面的重要意义。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
