A. V. Sitnikov, I. V. Babkina, Yu. E. Kalinin, A. E. Nikonov, M. N. Kopytin, A. R. Shakurov, O. I. Remizova, L. I. Yanchenko
{"title":"Formation of (Co40Fe40B20)x(LiNbO3)100 – x Composite Film on a Metallic Substrate","authors":"A. V. Sitnikov, I. V. Babkina, Yu. E. Kalinin, A. E. Nikonov, M. N. Kopytin, A. R. Shakurov, O. I. Remizova, L. I. Yanchenko","doi":"10.1134/s1063784224010377","DOIUrl":null,"url":null,"abstract":"<h3 data-test=\"abstract-sub-heading\">Abstract</h3><p>The topological features of the formation of (Co<sub>40</sub>Fe<sub>40</sub>B<sub>20</sub>)<sub>15</sub>(LiNbO<sub>3</sub>)<sub>85</sub> composite films deposited by ion-beam method on a metal electrode Cr/Cu/Cr has been investigated. The presence of a dielectric layer between the upper Cr layer and the CoFe–LiNbO<sub>3</sub> film with a thickness of <i>d</i><sub>ox</sub> ≈ 15 nm has been established. The difference in the size of granules near the amorphous layer and in the volume of the film has been shown. A model of the formation of (Co<sub>40</sub>Fe<sub>40</sub>B<sub>20</sub>)<sub><i>x</i></sub> (LiNbO<sub>3</sub>)<sub>100 –</sub> <sub><i>x</i></sub> nanocomposite film at the initial stage of growth has been proposed. It has been shown that the formation of α-LiNbO<sub>3</sub> layer on the chrome metal film surface is possible with the realization of island and layer-by-layer growth mechanisms for various phases of the composite.</p>","PeriodicalId":783,"journal":{"name":"Technical Physics","volume":null,"pages":null},"PeriodicalIF":1.1000,"publicationDate":"2024-09-02","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Technical Physics","FirstCategoryId":"101","ListUrlMain":"https://doi.org/10.1134/s1063784224010377","RegionNum":4,"RegionCategory":"物理与天体物理","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q4","JCRName":"PHYSICS, APPLIED","Score":null,"Total":0}
引用次数: 0
Abstract

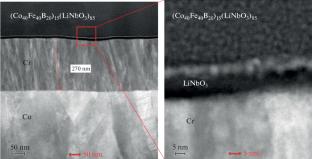

The topological features of the formation of (Co40Fe40B20)15(LiNbO3)85 composite films deposited by ion-beam method on a metal electrode Cr/Cu/Cr has been investigated. The presence of a dielectric layer between the upper Cr layer and the CoFe–LiNbO3 film with a thickness of dox ≈ 15 nm has been established. The difference in the size of granules near the amorphous layer and in the volume of the film has been shown. A model of the formation of (Co40Fe40B20)x (LiNbO3)100 –x nanocomposite film at the initial stage of growth has been proposed. It has been shown that the formation of α-LiNbO3 layer on the chrome metal film surface is possible with the realization of island and layer-by-layer growth mechanisms for various phases of the composite.
