Facile and Eco-Friendly Fabrication Route of In2O3NP/MWCNTs Heterostructure as High-Performance Photodetectors by Laser Ablation Method

IF 3.3 4区 物理与天体物理 Q2 CHEMISTRY, PHYSICAL Plasmonics Pub Date : 2024-09-13 DOI:10.1007/s11468-024-02524-w
Khawla S. Khashan, Aseel A. Hadi, Hawraa M. Abdul-Redaa
{"title":"Facile and Eco-Friendly Fabrication Route of In2O3NP/MWCNTs Heterostructure as High-Performance Photodetectors by Laser Ablation Method","authors":"Khawla S. Khashan, Aseel A. Hadi, Hawraa M. Abdul-Redaa","doi":"10.1007/s11468-024-02524-w","DOIUrl":null,"url":null,"abstract":"<p>Colloidal In<sub>2</sub>O<sub>3</sub>NPs-MWCNTs heterostructure (NPs) were successfully synthesized by a facile one-step Q-switched Nd: YAG laser ablation of indium target in CNTs suspension at room temperature. Raman spectroscopy and optical absorption analysis of the prepared samples confirmed the formation of In<sub>2</sub>O<sub>3</sub>NPs-MWCNTs heterostructure. Transmission electron microscope (TEM) investigation of In<sub>2</sub>O<sub>3</sub>-CNTs structure and pure In<sub>2</sub>O<sub>3</sub> nanoparticles revealed the formation of spherical nanoparticles with average size of 66 nm and 19 nm, respectively. The heterojunction photodetectors were fabricated by drop casting of colloidal In<sub>2</sub>O<sub>3</sub>NPs-MWCNTs NPs onto a single crystal silicon wafer. I–V characteristics of the In<sub>2</sub>O<sub>3</sub>NPs/Si and In<sub>2</sub>O<sub>3</sub>NPs-MWCNTs/Si heterojunctions under both dark and light conditions revealed rectifying properties and good photo-response. The built-in voltage was determined from the C–V measurements which revealed an abrupt junction and their values of 1.05 V and 0.59 V for In<sub>2</sub>O<sub>3</sub>NPs-MWCNTs/Si and In<sub>2</sub>O<sub>3</sub>NPs/Si, respectively. In<sub>2</sub>O<sub>3</sub>NPs-MWCNTs/Si photodetector demonstrated the highest responsivity and quantum efficiency of 1.3 A/W and 3.5 × 10<sup>2</sup>% at 450 nm, respectively. This In<sub>2</sub>O<sub>3</sub>-MWCNTs heterostructure-based photodetector with improved performance may open the door to effective Vis–NIR photodetection applications.</p><h3 data-test=\"abstract-sub-heading\">Graphical Abstract</h3>","PeriodicalId":736,"journal":{"name":"Plasmonics","volume":"74 1","pages":""},"PeriodicalIF":3.3000,"publicationDate":"2024-09-13","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Plasmonics","FirstCategoryId":"101","ListUrlMain":"https://doi.org/10.1007/s11468-024-02524-w","RegionNum":4,"RegionCategory":"物理与天体物理","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}
引用次数: 0

Abstract

Colloidal In2O3NPs-MWCNTs heterostructure (NPs) were successfully synthesized by a facile one-step Q-switched Nd: YAG laser ablation of indium target in CNTs suspension at room temperature. Raman spectroscopy and optical absorption analysis of the prepared samples confirmed the formation of In2O3NPs-MWCNTs heterostructure. Transmission electron microscope (TEM) investigation of In2O3-CNTs structure and pure In2O3 nanoparticles revealed the formation of spherical nanoparticles with average size of 66 nm and 19 nm, respectively. The heterojunction photodetectors were fabricated by drop casting of colloidal In2O3NPs-MWCNTs NPs onto a single crystal silicon wafer. I–V characteristics of the In2O3NPs/Si and In2O3NPs-MWCNTs/Si heterojunctions under both dark and light conditions revealed rectifying properties and good photo-response. The built-in voltage was determined from the C–V measurements which revealed an abrupt junction and their values of 1.05 V and 0.59 V for In2O3NPs-MWCNTs/Si and In2O3NPs/Si, respectively. In2O3NPs-MWCNTs/Si photodetector demonstrated the highest responsivity and quantum efficiency of 1.3 A/W and 3.5 × 102% at 450 nm, respectively. This In2O3-MWCNTs heterostructure-based photodetector with improved performance may open the door to effective Vis–NIR photodetection applications.

Graphical Abstract

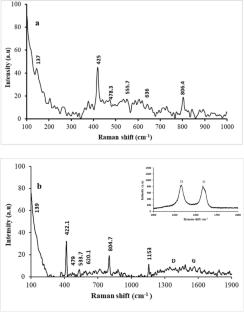

Abstract Image

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
用激光烧蚀法简便且环保地制备 In2O3NP/MWCNTs 异质结构作为高性能光电探测器的途径
在室温下,通过一步法 Q 开关 Nd: YAG 激光烧蚀 CNTs 悬浮液中的铟靶,成功合成了胶体 In2O3NPs-MWCNTs 异质结构(NPs)。所制备样品的拉曼光谱和光吸收分析证实了 In2O3NPs-MWCNTs 异质结构的形成。对 In2O3-CNTs 结构和纯 In2O3 纳米粒子的透射电子显微镜(TEM)研究表明,所形成的球形纳米粒子的平均尺寸分别为 66 nm 和 19 nm。通过在单晶硅晶片上滴铸胶体 In2O3NPs-MWCNTs NPs,制备了异质结光电探测器。In2O3NPs/Si 和 In2O3NPs-MWCNTs/Si 异质结在黑暗和光照条件下的 I-V 特性均显示出整流特性和良好的光响应。内置电压是通过 C-V 测量确定的,测量结果表明,In2O3NPs-MWCNTs/Si 和 In2O3NPs/Si 的结点很突然,其值分别为 1.05 V 和 0.59 V。In2O3NPs-MWCNTs/Si 光电探测器的响应率和量子效率最高,在 450 纳米波长下分别达到 1.3 A/W 和 3.5 × 102%。这种基于 In2O3-MWCNTs 异质结构的光电探测器具有更高的性能,可为有效的可见-近红外光电探测应用打开大门。
