Kailun Zhang, Ruike Bi, Johan Tidholm, Jakob Ängeby, Mattias Richter, Andreas Ehn
{"title":"Detection of Nickel Atoms Released from Electrodes in Spark Discharges Using Laser-Induced Fluorescence.","authors":"Kailun Zhang, Ruike Bi, Johan Tidholm, Jakob Ängeby, Mattias Richter, Andreas Ehn","doi":"10.1177/00037028241285150","DOIUrl":null,"url":null,"abstract":"<p><p>The reduction of greenhouse gas emissions and the effort of carbon neutrality require the improvement of spark-ignition engines in terms of efficiency and capability to operate on renewable fuels. The electrode wear of spark plugs, used for ignition of novel fuels and lean mixtures, emerges as a significant challenge in this transition. Understanding the physical mechanism and influence of spark operation parameters of the wear process is thus important. Compared to the conventional methodology of performing long-term wear tests, laser-based optical diagnostics methods are capable of assessing electrode wear during one single or a few spark discharges. In this work, the necessary initial steps required for performing optical investigations using laser-induced fluorescence (LIF) are presented. Several excitation pathways of nickel atoms were investigated, and 336.96 nm was identified as the optimal one. This excitation approach yielded emissions between 338.75 and 353.58 nm, effectively avoiding the major interference from N<sub>2</sub> plasma emission in spark discharges. Additionally, a linear relationship in fluorescence signal intensity with excitation energy up to 400 µJ was observed. These findings indicate the potential of LIF for in situ diagnostics of electrode wear, contributing to engine development in both efficiency and compatibility with sustainable fuels.</p>","PeriodicalId":8253,"journal":{"name":"Applied Spectroscopy","volume":null,"pages":null},"PeriodicalIF":2.2000,"publicationDate":"2024-09-28","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Applied Spectroscopy","FirstCategoryId":"92","ListUrlMain":"https://doi.org/10.1177/00037028241285150","RegionNum":3,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"INSTRUMENTS & INSTRUMENTATION","Score":null,"Total":0}
引用次数: 0
Abstract

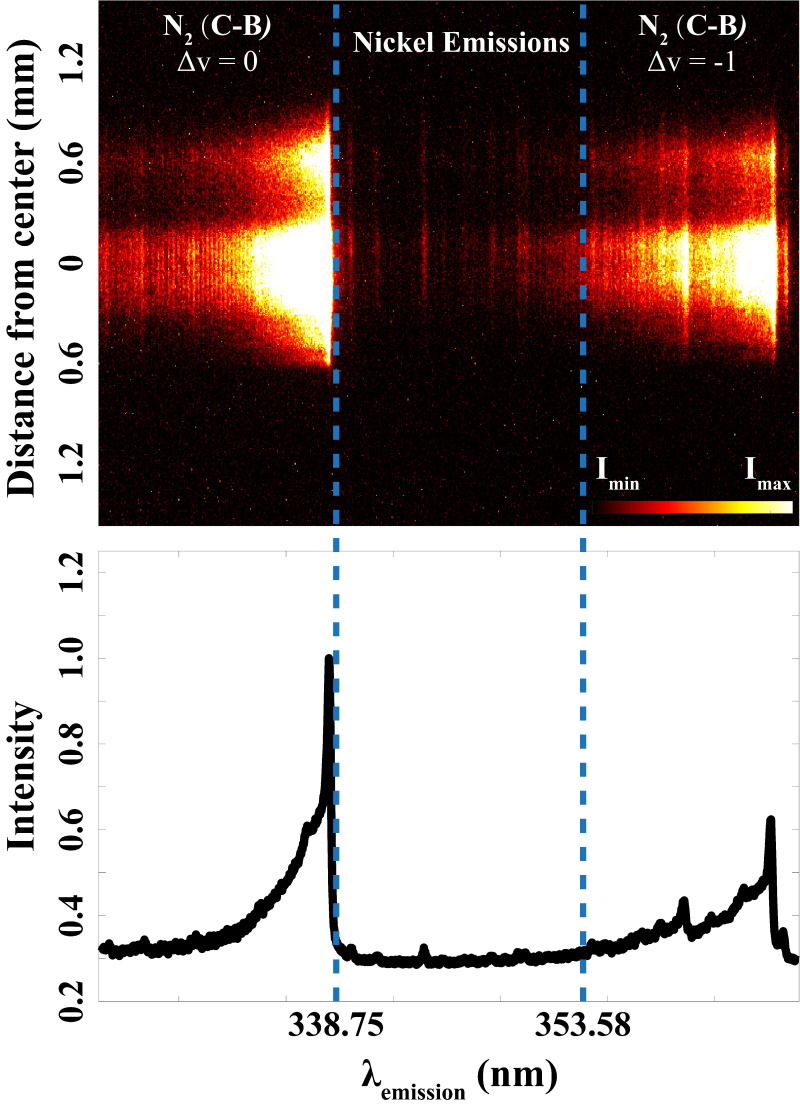

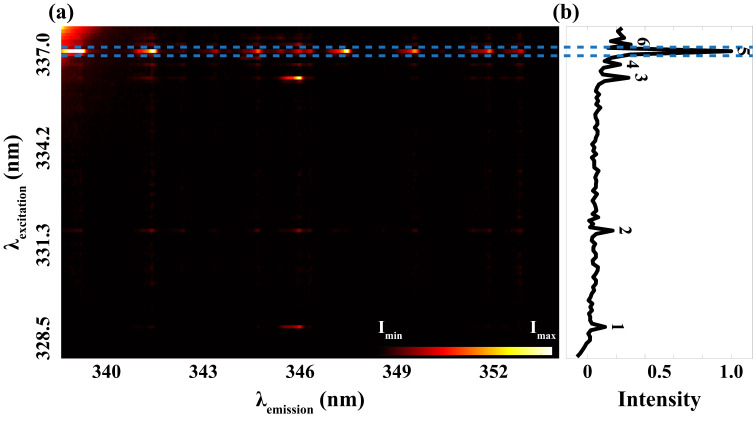

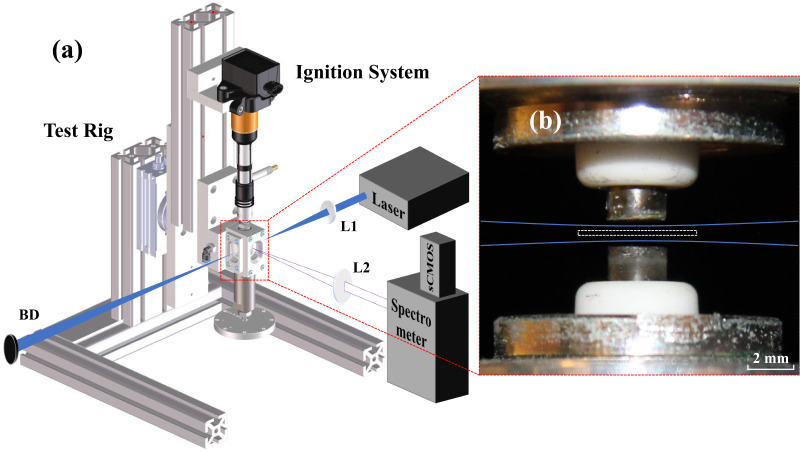

The reduction of greenhouse gas emissions and the effort of carbon neutrality require the improvement of spark-ignition engines in terms of efficiency and capability to operate on renewable fuels. The electrode wear of spark plugs, used for ignition of novel fuels and lean mixtures, emerges as a significant challenge in this transition. Understanding the physical mechanism and influence of spark operation parameters of the wear process is thus important. Compared to the conventional methodology of performing long-term wear tests, laser-based optical diagnostics methods are capable of assessing electrode wear during one single or a few spark discharges. In this work, the necessary initial steps required for performing optical investigations using laser-induced fluorescence (LIF) are presented. Several excitation pathways of nickel atoms were investigated, and 336.96 nm was identified as the optimal one. This excitation approach yielded emissions between 338.75 and 353.58 nm, effectively avoiding the major interference from N2 plasma emission in spark discharges. Additionally, a linear relationship in fluorescence signal intensity with excitation energy up to 400 µJ was observed. These findings indicate the potential of LIF for in situ diagnostics of electrode wear, contributing to engine development in both efficiency and compatibility with sustainable fuels.
