{"title":"Time-pH and Time-Humidity Scaling of Ionic Conductivity Spectra of Polyelectrolyte Multilayers","authors":"Jannis Schlicke, Cornelia Cramer, Monika Schönhoff","doi":"10.1039/d4cp03482a","DOIUrl":null,"url":null,"abstract":"In this systematic study, ionic conductivity spectra of poly(diallyl-dimethylammonium)/ poly(acrylic acid) (PDADMA/PAA)n polyelectrolyte multilayers (PEMs) are investigated regarding superposition principles. In this context, charge transport as well as charge compensation processes in polyelectrolyte assemblies are discussed. The validity of different scaling concepts is tested to differentiate between changes in the mobility and charge carrier density, caused by the variation of a parameter X, where X is either relative humidity during measurement, or salt concentration or pH during preparation. For the first time, time-X scaling for conductivity spectra of PEMs is reported for all three parameters X, resulting in individual mastercurves. Furthermore, a super-mastercurve can be obtained including variations of all three parameters. Changes in plasticization caused by either varied humidity, pH or ionic strength imply non-constant charge carrier mobilities in accordance with a Summerfield-type of scaling, while the charge carrier density remains constant. Interestingly, for preparation conditions which favor extrinsic charge compensation, significant deviations from such Summerfield-type scaling are observed, indicating a variation of the number density of mobile charge carriers with humidity.","PeriodicalId":99,"journal":{"name":"Physical Chemistry Chemical Physics","volume":null,"pages":null},"PeriodicalIF":2.9000,"publicationDate":"2024-10-09","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Physical Chemistry Chemical Physics","FirstCategoryId":"92","ListUrlMain":"https://doi.org/10.1039/d4cp03482a","RegionNum":3,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q3","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}
引用次数: 0
Abstract

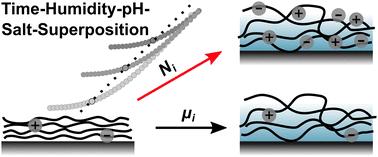

In this systematic study, ionic conductivity spectra of poly(diallyl-dimethylammonium)/ poly(acrylic acid) (PDADMA/PAA)n polyelectrolyte multilayers (PEMs) are investigated regarding superposition principles. In this context, charge transport as well as charge compensation processes in polyelectrolyte assemblies are discussed. The validity of different scaling concepts is tested to differentiate between changes in the mobility and charge carrier density, caused by the variation of a parameter X, where X is either relative humidity during measurement, or salt concentration or pH during preparation. For the first time, time-X scaling for conductivity spectra of PEMs is reported for all three parameters X, resulting in individual mastercurves. Furthermore, a super-mastercurve can be obtained including variations of all three parameters. Changes in plasticization caused by either varied humidity, pH or ionic strength imply non-constant charge carrier mobilities in accordance with a Summerfield-type of scaling, while the charge carrier density remains constant. Interestingly, for preparation conditions which favor extrinsic charge compensation, significant deviations from such Summerfield-type scaling are observed, indicating a variation of the number density of mobile charge carriers with humidity.
在这项系统研究中,根据叠加原理对聚(二烯丙基二甲基铵)/聚(丙烯酸)(PDADMA/PAA)n 聚电解质多层膜(PEMs)的离子电导率光谱进行了研究。在此背景下,讨论了聚电解质组件中的电荷传输和电荷补偿过程。测试了不同缩放概念的有效性,以区分参数 X 变化引起的迁移率和电荷载流子密度的变化,其中 X 是测量过程中的相对湿度,或制备过程中的盐浓度或 pH 值。首次报告了针对所有三个参数 X 的 PEM 电导率光谱的时间-X 缩放,从而产生了单独的主曲线。此外,还可获得包括所有三个参数变化的超主曲线。湿度、pH 值或离子强度变化引起的塑化变化意味着电荷载流子迁移率不恒定,这符合夏菲尔德(Summerfield)类型的比例关系,而电荷载流子密度则保持恒定。有趣的是,在有利于外在电荷补偿的制备条件下,观察到与这种夏菲尔德型比例关系的显著偏差,表明移动电荷载流子的数量密度随湿度的变化而变化。
