Severity Stratification of Coronary Artery Disease Using Novel Inner Ellipse-Based Foveal Avascular Zone Biomarkers.

Abstract

Purpose: Given the similarities between the retinal and coronary microvasculature, the retina holds promising potential to serve as a non-invasive screening tool for coronary artery disease (CAD). We aimed to develop novel inner ellipse-based metrics and discern whether foveal avascular zone (FAZ) alterations can serve as indicators for CAD presence and severity.

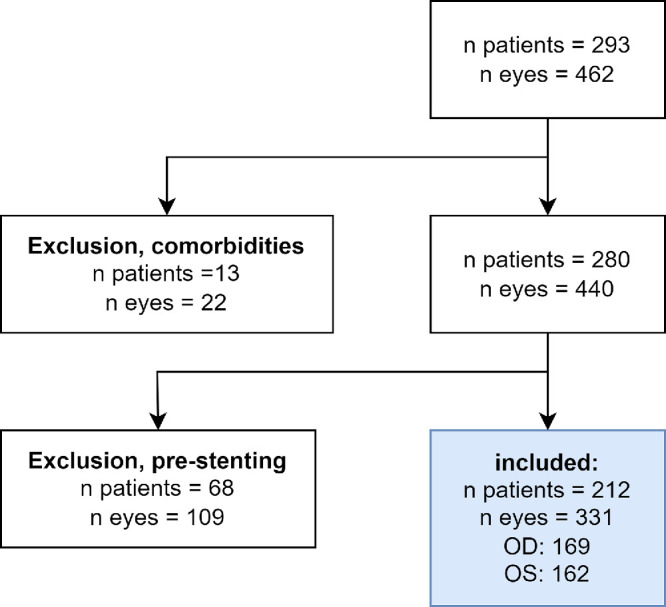

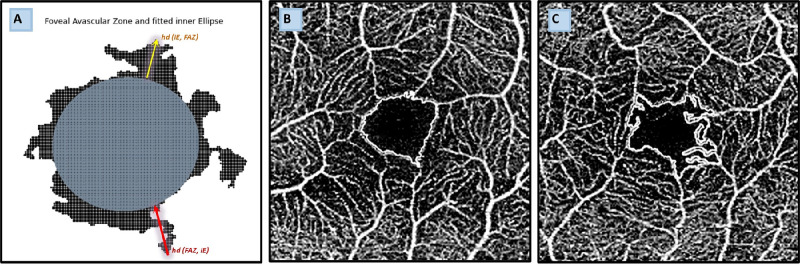

Methods: Patients admitted to the Department of Cardiology who underwent coronary angiography were included. This resulted in an inclusion of 212 patients, of which 73 had no CAD. During the same visit, 6 × 6-mm (nominal size) fovea-centered optical coherence tomography angiography images of both eyes were acquired. The Gensini score (GS) was utilized to quantify CAD severity. Six known FAZ shape metrics were assessed and three novel biomarkers based on the inner ellipse were defined: absolute inner ellipse difference, Hausdorff distance, and Chamfer distance.

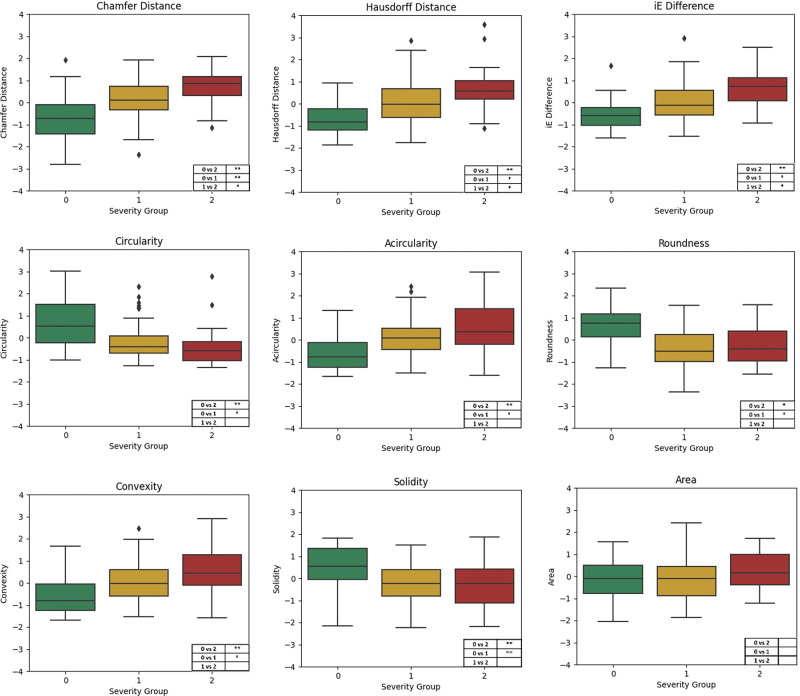

Results: Eight out of nine metrics showed significant associations with the GS in the left eye. However, significant differences across three CAD severity groups were only demonstrated by the novel metrics. Utilizing the Chamfer distance, age, and sex, patients with and without CAD could be distinguished with an average area under the curve (AUC) of 0.89 (95% confidence interval [CI], 0.84-0.95). Moreover, three CAD severity groups could be discerned with a macro average AUC of 0.77 (95% CI, 0.72-0.84).

Conclusions: A comprehensive assessment of FAZ shape descriptors was performed, and a strong association with CAD was found. The inner ellipse-based biomarkers especially demonstrated high predictive abilities for CAD presence and severity.
