Evaluating the efficacy of a cost-effective, fully three-dimensional-printed vertebra model for endoscopic spine surgery training for neurosurgical residents.

Abstract

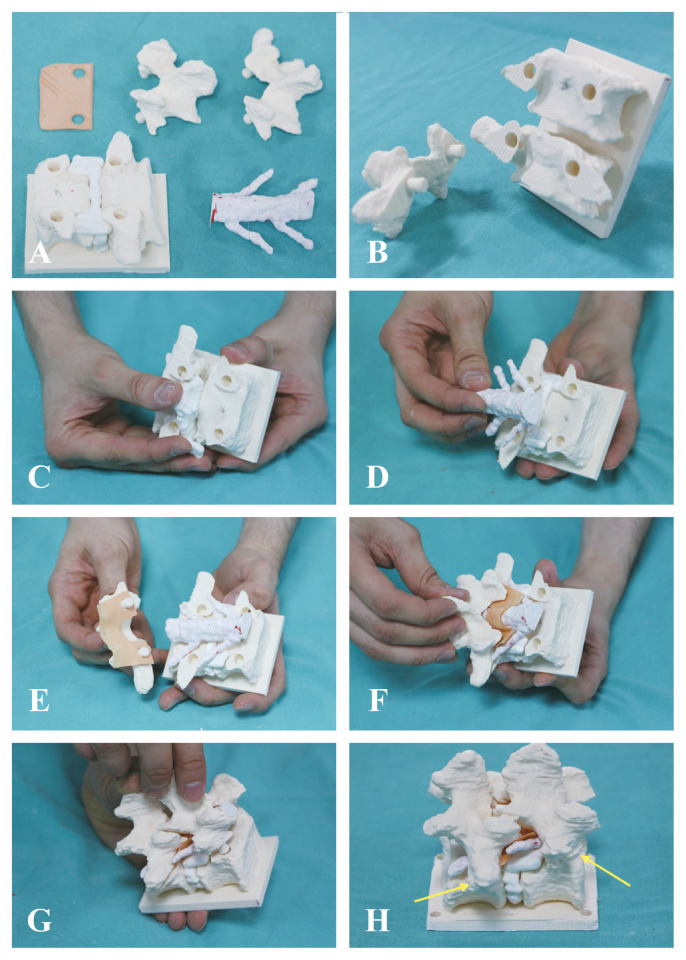

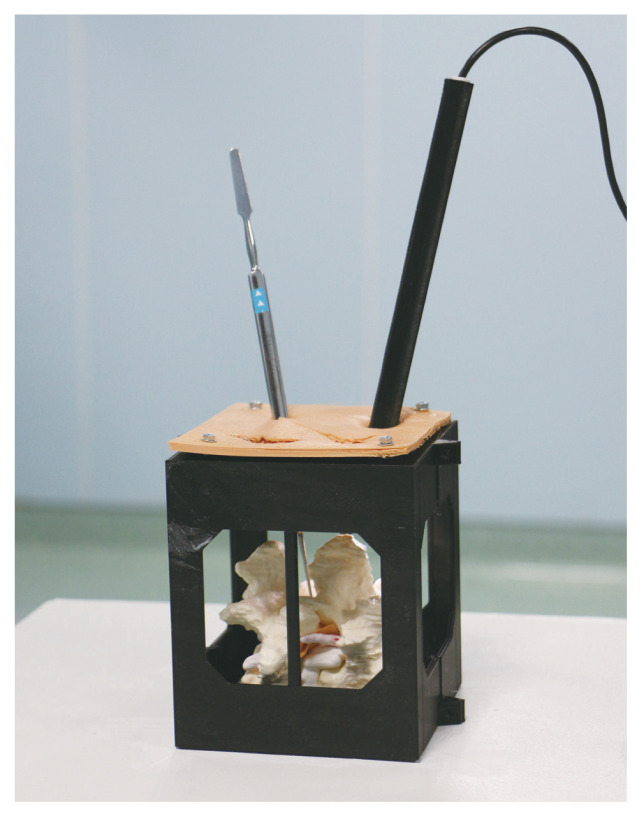

Study design: A fused deposition modeling three-dimensional (3D)-printed model of the L4-5 vertebra for lumbar discectomy was designed. The model included separately printed dura mater, spinal cord, ligamentum flavum, intervertebral disc (from thermoplastic polyurethane), and bony structures (from polylactic acid), and the material cost approximately US$ 1 per model. A simple plumbing endoscope was used for visualization. Dura mater injury was assessed by painting two layers on the dura mater, which peeled off with trauma.

Purpose: Endoscopic spine surgery is a subject of high interest in neurosurgery given its minimally invasive nature; however, it has a steep learning curve. This study evaluated the effectiveness of a cost-efficient 3D-printed model when teaching this technique to neurosurgery residents.

Overview of literature: Only a few studies have investigated the efficacy of such a model.

Methods: Eight residents with >2 years of training participated. Residents performed the procedure bilaterally and twice at 1-week intervals.

Results: From the 32 surgeries, four were excluded because of facet removal (as it widened the surgical corridor), leaving 28 surgeries for analysis. Initial surgeries demonstrated a mean operation time of 21 minutes 18 seconds (standard deviation [SD], 2 minutes 32 seconds), which improved to a mean of 6 minutes 45 seconds (SD, 37 seconds) in the fourth surgery (F(3, 17)=19.18, p <0.0001), demonstrating a significant reduction in surgical time over successive surgeries. The median area with the paint removed decreased, from 161.80 (85.55-217.83) to 95.13 mm2 (12.62-160.54), (F(2.072, Inf)=2.04, p =0.128); however, this was not significant. Resident feedback indicated high satisfaction with the educational value of the model.

Conclusions: The developed fully 3D-printed model provides a viable and scalable option for neurosurgical training programs, enhancing the learning experience while maintaining low costs. This model may be an excellent stepping stone for learning lumbar spine endoscopy, acclimating to the two-dimensional view, progressing to cadaver models, and, eventually, independent surgery.
