FeCo Bimetallic ZIF Derivatives Decorated with CoFe-LDH to Promote Bifunctional Oxygen Electrocatalysis Activation.

Abstract

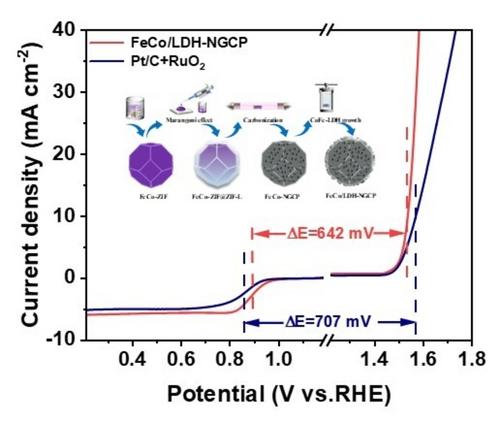

Reasonably screening the targeted oxygen reduction reaction (ORR)/oxygen evolution reaction (OER) constituents and constructing high-efficiency and stabilized ORR/OER bifunctional electrocatalysts are pivotal for the advancement of rechargeable zinc-air batteries (ZABs). Here, CoFe layered double hydroxide (CoFe-LDH) nanosheets are deposited on nitrogen-doped graphite-carbon polyhedra with FeCo alloy nanoparticles (FeCo/LDH-NGCP). Due to the synergic effect between FeCo-NGCP, CoFe-LDH and FeCo/LDH-NGCP, the electrocatalyst with the abundant and accessible active sites can provide good charge/mass transfer, and thus shows wonderful ORR and OER bifunctional electrocatalytic performance. In ORR tests, FeCo/LDH-NGCP catalyst displays larger half-wave potential (E_1/2, 0.89 V vs. 0.85 V), higher limiting current density (J_L, 5.91 mA/cm² vs. 5.14 mA/cm²) and better stability than commercial Pt/C. As for OER, FeCo/LDH-NGCP possesses a smaller overpotential (η) of 299.6 mV at a current density of 10 mA/cm² and more durable stability than commercial RuO₂ (330.6 mV). Furthermore, in ZAB tests, the cycling stability of ZAB-FeCo/LDH-NGCP (over 470 h) outperforms the ZAB-Pt/C+RuO₂ (92 h) with commercial electrocatalyst (Pt/C+RuO₂). Therefore, the FeCo/LDH-NGCP catalyst offers a new perspective to construct ZABs bifunctional catalysts and their commercial application in ZABs.
