Anomaly detection scheme for lung CT images using vector quantized variational auto-encoder with support vector data description.

IF 1.7 Q3 RADIOLOGY, NUCLEAR MEDICINE & MEDICAL IMAGING Radiological Physics and Technology Pub Date : 2024-10-26 DOI:10.1007/s12194-024-00851-5
Zhihui Gao, Ryohei Nakayama, Akiyoshi Hizukuri, Shoji Kido
{"title":"Anomaly detection scheme for lung CT images using vector quantized variational auto-encoder with support vector data description.","authors":"Zhihui Gao, Ryohei Nakayama, Akiyoshi Hizukuri, Shoji Kido","doi":"10.1007/s12194-024-00851-5","DOIUrl":null,"url":null,"abstract":"<p><p>This study aims to develop an anomaly-detection scheme for lesions in CT images. Our database consists of lung CT images obtained from 1500 examinees. It includes 1200 normal and 300 abnormal cases. In this study, SVDD (Support Vector Data Description) mapping the normal latent variables into a hypersphere as small as possible on the latent space is introduced to VQ-VAE (Vector Quantized-Variational Auto-Encoder). VQ-VAE with SVDD is constructed from two encoders, two decoders, and an embedding space. The first encoder compresses the input image into the latent-variable map, whereas the second encoder maps the normal latent variables into a hypersphere as small as possible. The first decoder then up-samples the mapped latent variables into a latent-variable map with the original size. The second decoder finally reconstructs the input image from the latent-variable map replaced by the embedding representations. The data of each examinee is classified as abnormal or normal based on the anomaly score defined as the combination of the difference between the input image and the reconstructed image and the distance between the latent variables and the center of the hypersphere. The area under the ROC curve for VQ-VAE with SVDD was 0.76, showing an improvement when compared with the conventional VAE (0.63, p < .001). VQ-VAE with SVDD developed in this study can yield higher anomaly-detection accuracy than the conventional VAE. The proposed method is expected to be useful for identifying examinees with lesions and reducing interpretation time in CT screening.</p>","PeriodicalId":46252,"journal":{"name":"Radiological Physics and Technology","volume":null,"pages":null},"PeriodicalIF":1.7000,"publicationDate":"2024-10-26","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Radiological Physics and Technology","FirstCategoryId":"1085","ListUrlMain":"https://doi.org/10.1007/s12194-024-00851-5","RegionNum":0,"RegionCategory":null,"ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q3","JCRName":"RADIOLOGY, NUCLEAR MEDICINE & MEDICAL IMAGING","Score":null,"Total":0}
引用次数: 0

Abstract

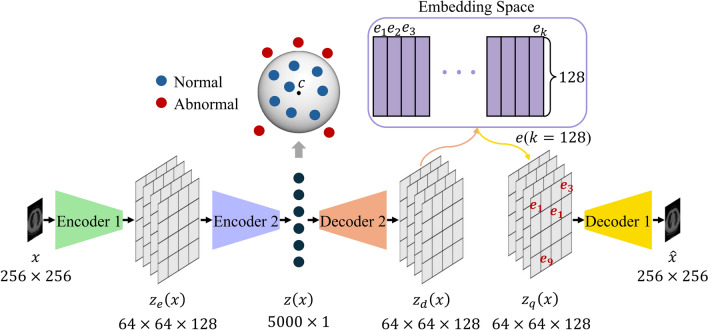

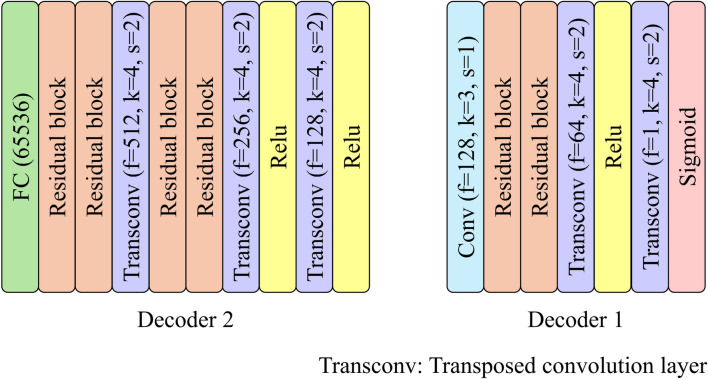

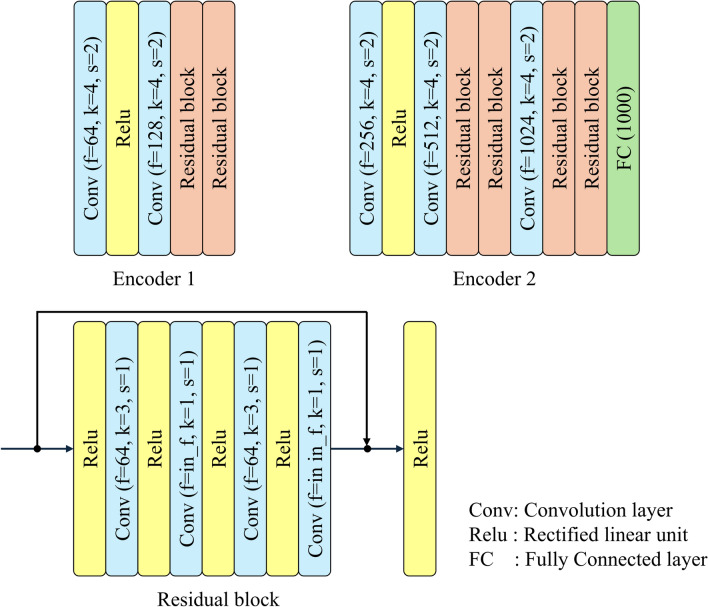

This study aims to develop an anomaly-detection scheme for lesions in CT images. Our database consists of lung CT images obtained from 1500 examinees. It includes 1200 normal and 300 abnormal cases. In this study, SVDD (Support Vector Data Description) mapping the normal latent variables into a hypersphere as small as possible on the latent space is introduced to VQ-VAE (Vector Quantized-Variational Auto-Encoder). VQ-VAE with SVDD is constructed from two encoders, two decoders, and an embedding space. The first encoder compresses the input image into the latent-variable map, whereas the second encoder maps the normal latent variables into a hypersphere as small as possible. The first decoder then up-samples the mapped latent variables into a latent-variable map with the original size. The second decoder finally reconstructs the input image from the latent-variable map replaced by the embedding representations. The data of each examinee is classified as abnormal or normal based on the anomaly score defined as the combination of the difference between the input image and the reconstructed image and the distance between the latent variables and the center of the hypersphere. The area under the ROC curve for VQ-VAE with SVDD was 0.76, showing an improvement when compared with the conventional VAE (0.63, p < .001). VQ-VAE with SVDD developed in this study can yield higher anomaly-detection accuracy than the conventional VAE. The proposed method is expected to be useful for identifying examinees with lesions and reducing interpretation time in CT screening.

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
使用支持向量数据描述的向量量化变异自动编码器的肺部 CT 图像异常检测方案。
本研究旨在开发一种针对 CT 图像中病变的异常检测方案。我们的数据库由 1500 名受检者的肺部 CT 图像组成。其中包括 1200 个正常病例和 300 个异常病例。在这项研究中,SVDD(支持向量数据描述)被引入到 VQ-VAE(向量量化变量自动编码器)中,将正常潜变量映射到潜空间上尽可能小的超球中。带有 SVDD 的 VQ-VAE 由两个编码器、两个解码器和一个嵌入空间构成。第一个编码器将输入图像压缩为潜变量映射,而第二个编码器则将正常潜变量映射为尽可能小的超球。然后,第一个解码器将映射的潜变量向上采样到具有原始大小的潜变量映射中。第二个解码器最后根据被嵌入表示替换的潜变量图重建输入图像。每个受检者的数据会根据异常分数被分为异常和正常,异常分数的定义是输入图像和重建图像之间的差值与潜变量和超球中心之间距离的组合。带有 SVDD 的 VQ-VAE 的 ROC 曲线下面积为 0.76,与传统的 VAE 相比有所提高(0.63,p<0.05)。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
