Comparison of image quality and lesion conspicuity between conventional and deep learning reconstruction in gadoxetic acid-enhanced liver MRI.

IF 4.1 2区医学 Q1 RADIOLOGY, NUCLEAR MEDICINE & MEDICAL IMAGING Insights into Imaging Pub Date : 2024-10-28 DOI:10.1186/s13244-024-01825-2

Jeong Hee Yoon, Jeong Eun Lee, So Hyun Park, Jin Young Park, Jae Hyun Kim, Jeong Min Lee

{"title":"Comparison of image quality and lesion conspicuity between conventional and deep learning reconstruction in gadoxetic acid-enhanced liver MRI.","authors":"Jeong Hee Yoon, Jeong Eun Lee, So Hyun Park, Jin Young Park, Jae Hyun Kim, Jeong Min Lee","doi":"10.1186/s13244-024-01825-2","DOIUrl":null,"url":null,"abstract":"Objective: To compare the image quality and lesion conspicuity of conventional vs deep learning (DL)-based reconstructed three-dimensional T1-weighted images in gadoxetic acid-enhanced liver magnetic resonance imaging (MRI).Methods: This prospective study (NCT05182099) enrolled participants scheduled for gadoxetic acid-enhanced liver MRI due to suspected focal liver lesions (FLLs) who provided signed informed consent. A liver MRI was conducted using a 3-T scanner. T1-weighted images were reconstructed using both conventional and DL-based (AIRTM Recon DL 3D) reconstruction algorithms. Three radiologists independently reviewed the image quality and lesion conspicuity on a 5-point scale.Results: Fifty participants (male = 36, mean age 62 ± 11 years) were included for image analysis. The DL-based reconstruction showed significantly higher image quality than conventional images in all phases (3.71-4.40 vs 3.37-3.99, p < 0.001 for all), as well as significantly less noise and ringing artifacts than conventional images (p < 0.05 for all), while also showing significantly altered image texture (p < 0.001 for all). Lesion conspicuity was significantly higher in DL-reconstructed images than in conventional images in the arterial phase (2.15 [95% confidence interval: 1.78, 2.52] vs 2.03 [1.65, 2.40], p = 0.036), but no significant difference was observed in the portal venous phase and hepatobiliary phase (p > 0.05 for all). There was no significant difference in the figure-of-merit (0.728 in DL vs 0.709 in conventional image, p = 0.474).Conclusion: DL reconstruction provided higher-quality three-dimensional T1-weighted imaging than conventional reconstruction in gadoxetic acid-enhanced liver MRI.Critical relevance statement: DL reconstruction of 3D T1-weighted images improves image quality and arterial phase lesion conspicuity in gadoxetic acid-enhanced liver MRI compared to conventional reconstruction.Key points: DL reconstruction is feasible for 3D T1-weighted images across different spatial resolutions and phases. DL reconstruction showed superior image quality with reduced noise and ringing artifacts. Hepatic anatomic structures were more conspicuous on DL-reconstructed images.","PeriodicalId":13639,"journal":{"name":"Insights into Imaging","volume":"15 1","pages":"257"},"PeriodicalIF":4.1000,"publicationDate":"2024-10-28","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC11519238/pdf/","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Insights into Imaging","FirstCategoryId":"3","ListUrlMain":"https://doi.org/10.1186/s13244-024-01825-2","RegionNum":2,"RegionCategory":"医学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"RADIOLOGY, NUCLEAR MEDICINE & MEDICAL IMAGING","Score":null,"Total":0}

引用次数: 0

Abstract

Objective: To compare the image quality and lesion conspicuity of conventional vs deep learning (DL)-based reconstructed three-dimensional T1-weighted images in gadoxetic acid-enhanced liver magnetic resonance imaging (MRI).

Methods: This prospective study (NCT05182099) enrolled participants scheduled for gadoxetic acid-enhanced liver MRI due to suspected focal liver lesions (FLLs) who provided signed informed consent. A liver MRI was conducted using a 3-T scanner. T1-weighted images were reconstructed using both conventional and DL-based (AIR^TM Recon DL 3D) reconstruction algorithms. Three radiologists independently reviewed the image quality and lesion conspicuity on a 5-point scale.

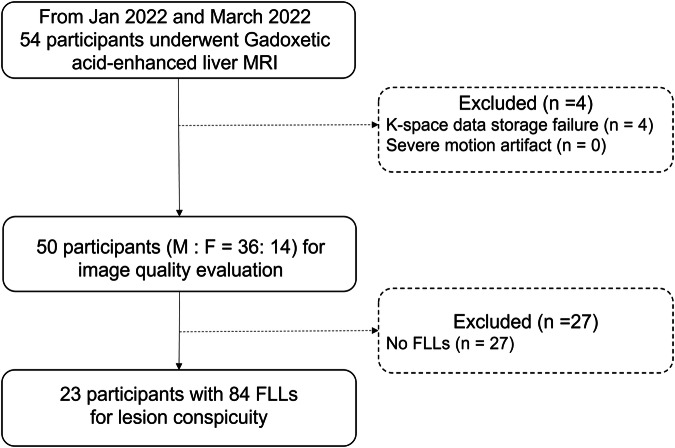

Results: Fifty participants (male = 36, mean age 62 ± 11 years) were included for image analysis. The DL-based reconstruction showed significantly higher image quality than conventional images in all phases (3.71-4.40 vs 3.37-3.99, p < 0.001 for all), as well as significantly less noise and ringing artifacts than conventional images (p < 0.05 for all), while also showing significantly altered image texture (p < 0.001 for all). Lesion conspicuity was significantly higher in DL-reconstructed images than in conventional images in the arterial phase (2.15 [95% confidence interval: 1.78, 2.52] vs 2.03 [1.65, 2.40], p = 0.036), but no significant difference was observed in the portal venous phase and hepatobiliary phase (p > 0.05 for all). There was no significant difference in the figure-of-merit (0.728 in DL vs 0.709 in conventional image, p = 0.474).

Conclusion: DL reconstruction provided higher-quality three-dimensional T1-weighted imaging than conventional reconstruction in gadoxetic acid-enhanced liver MRI.

Critical relevance statement: DL reconstruction of 3D T1-weighted images improves image quality and arterial phase lesion conspicuity in gadoxetic acid-enhanced liver MRI compared to conventional reconstruction.

Key points: DL reconstruction is feasible for 3D T1-weighted images across different spatial resolutions and phases. DL reconstruction showed superior image quality with reduced noise and ringing artifacts. Hepatic anatomic structures were more conspicuous on DL-reconstructed images.
