Applications of Near Infrared Spectroscopy and Mirror Therapy for Upper Limb Rehabilitation in Post-Stroke Patients: A Brain Plasticity Pilot Study.

Abstract

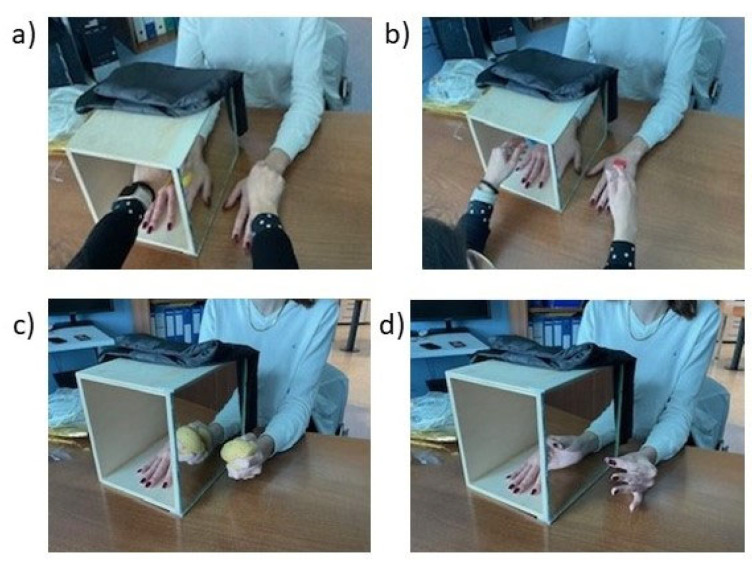

Objectives: The aim of this study was to identify the neural pattern activation during mirror therapy (MT) and explore any cortical reorganization and reducing asymmetry of hemispheric activity for upper limb rehabilitation in post-stroke patients. Methods: A box containing a mirror was placed between the arms of the patients to create the illusion of normal motion in the affected limb by reflecting the image of the unaffected limb in motion. We measured the cerebral hemodynamic response using near-infrared spectroscopy (NIRS). We enrolled ten right-handed stroke patients. They observed healthy hand movements in the mirror (MT condition) while performing various tasks (MT condition), and then repeated the same tasks with the mirror covered (N-MT condition). Results: Significant activation of some brain areas was observed in the right and left hemiparesis groups for the MT condition, while lower levels of activation were observed for the N-MT condition. The results showed significant differences in hemodynamic response based on oxygenated (HbO) concentrations between MT and N-MT conditions across all tasks in sensorimotor areas. These neural circuits were activated despite the motor areas being affected by the brain injury, indicating that the reflection of movement in the mirror helped to activate them. Conclusions: These results suggest that MT promotes cortical activations of sensory motor areas in affected and non-affected brain sides in subacute post-stroke patients, and it encourages the use of these tools in clinical practice.
