Constructing a Classification Model for Cervical Cancer Tumor Tissue and Normal Tissue Based on CT Radiomics.

IF 2.7 4区 医学 Q3 ONCOLOGY Technology in Cancer Research & Treatment Pub Date : 2024-01-01 DOI:10.1177/15330338241298554
Jinghong Pei, Jing Yu, Ping Ge, Liman Bao, Haowen Pang, Huaiwen Zhang
{"title":"Constructing a Classification Model for Cervical Cancer Tumor Tissue and Normal Tissue Based on CT Radiomics.","authors":"Jinghong Pei, Jing Yu, Ping Ge, Liman Bao, Haowen Pang, Huaiwen Zhang","doi":"10.1177/15330338241298554","DOIUrl":null,"url":null,"abstract":"<p><p>This study aimed to develop an automated classification framework for distinguishing between cervical cancer tumor and normal uterine tissue, leveraging CT images for radiomics feature extraction. We retrospectively analyzed CT images from 117 cervical cancer patients. To distinguish between cancerous and healthy tissue, we segmented gross tumor volume and normal uterine tissue as distinct regions of interest (ROIs) using manual segmentation techniques. Key radiomic parameters were extracted from these ROIs. To bolster model's predictive capability, the data was stratified into train data (70%) and validation data (30%). During feature selection phase, we applied Least Absolute Shrinkage and Selection Operator regression algorithm to identify most relevant features. Subsequently, we built classification models using five state-of-the-art machine learning algorithms: Support Vector Machine (SVM), Random Forest (RF), K-Nearest Neighbors (KNN), Extreme Gradient Boosting (XGBoost), and Decision Tree (DT). Ultimately, the performance of each model was evaluated. Through stringent feature selection process, we identified 18 pivotal radiomic features for classification of cervical cancer and normal uterine tissue. When applied to test data, all five models achieved excellent performance, with area under the curve (AUC) values ranging from 0.8866 to 0.9190 (SVM: 0.9144, RF: 0.9078, KNN: 0.9051, DT: 0.8866, XGBoost: 0.9190), all surpassing threshold of 0.8. In terms of test data, all five models had high sensitivity; accuracy of SVM, RF, and XGBoost models was comparable; and specificity of five models was similar. XGBoost model outperformed the others in terms of diagnostic accuracy, achieving an AUC of 0.8737 (95% CI: 0.8198-0.9277) for train data and 0.9190 (95% CI: 0.8525-0.9854) for test data. Our findings underscore the potential of CT radiomics combined with machine learning algorithms for accurately classifying cervical cancer tumors and normal uterine tissue with high recognition capabilities. This approach holds significant promise for clinical diagnostics.</p>","PeriodicalId":22203,"journal":{"name":"Technology in Cancer Research & Treatment","volume":"23 ","pages":"15330338241298554"},"PeriodicalIF":2.7000,"publicationDate":"2024-01-01","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC11562001/pdf/","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Technology in Cancer Research & Treatment","FirstCategoryId":"3","ListUrlMain":"https://doi.org/10.1177/15330338241298554","RegionNum":4,"RegionCategory":"医学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q3","JCRName":"ONCOLOGY","Score":null,"Total":0}
引用次数: 0

Abstract

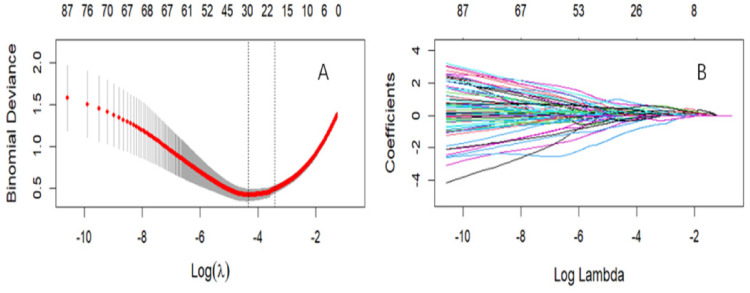

This study aimed to develop an automated classification framework for distinguishing between cervical cancer tumor and normal uterine tissue, leveraging CT images for radiomics feature extraction. We retrospectively analyzed CT images from 117 cervical cancer patients. To distinguish between cancerous and healthy tissue, we segmented gross tumor volume and normal uterine tissue as distinct regions of interest (ROIs) using manual segmentation techniques. Key radiomic parameters were extracted from these ROIs. To bolster model's predictive capability, the data was stratified into train data (70%) and validation data (30%). During feature selection phase, we applied Least Absolute Shrinkage and Selection Operator regression algorithm to identify most relevant features. Subsequently, we built classification models using five state-of-the-art machine learning algorithms: Support Vector Machine (SVM), Random Forest (RF), K-Nearest Neighbors (KNN), Extreme Gradient Boosting (XGBoost), and Decision Tree (DT). Ultimately, the performance of each model was evaluated. Through stringent feature selection process, we identified 18 pivotal radiomic features for classification of cervical cancer and normal uterine tissue. When applied to test data, all five models achieved excellent performance, with area under the curve (AUC) values ranging from 0.8866 to 0.9190 (SVM: 0.9144, RF: 0.9078, KNN: 0.9051, DT: 0.8866, XGBoost: 0.9190), all surpassing threshold of 0.8. In terms of test data, all five models had high sensitivity; accuracy of SVM, RF, and XGBoost models was comparable; and specificity of five models was similar. XGBoost model outperformed the others in terms of diagnostic accuracy, achieving an AUC of 0.8737 (95% CI: 0.8198-0.9277) for train data and 0.9190 (95% CI: 0.8525-0.9854) for test data. Our findings underscore the potential of CT radiomics combined with machine learning algorithms for accurately classifying cervical cancer tumors and normal uterine tissue with high recognition capabilities. This approach holds significant promise for clinical diagnostics.

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
基于CT放射组学构建宫颈癌肿瘤组织和正常组织的分类模型
本研究旨在开发一种自动分类框架,利用 CT 图像进行放射组学特征提取,以区分宫颈癌肿瘤和正常子宫组织。我们对 117 名宫颈癌患者的 CT 图像进行了回顾性分析。为了区分癌组织和健康组织,我们使用手动分割技术将肿瘤总体积和正常子宫组织分割为不同的感兴趣区(ROI)。从这些 ROI 提取关键的放射学参数。为了增强模型的预测能力,我们将数据分为训练数据(70%)和验证数据(30%)。在特征选择阶段,我们采用最小绝对收缩和选择操作器回归算法来识别最相关的特征。随后,我们使用五种最先进的机器学习算法建立了分类模型:支持向量机(SVM)、随机森林(RF)、K-近邻(KNN)、极梯度提升(XGBoost)和决策树(DT)。最终,我们对每个模型的性能进行了评估。通过严格的特征选择过程,我们确定了用于宫颈癌和正常子宫组织分类的 18 个关键放射学特征。在应用于测试数据时,五个模型都取得了优异的表现,曲线下面积(AUC)值从 0.8866 到 0.9190 不等(SVM:0.9144;RF:0.9078;KNN:0.9051;DT:0.8866;XGBoost:0.9190),均超过了 0.8 的阈值。在测试数据方面,所有五个模型都具有较高的灵敏度;SVM、RF 和 XGBoost 模型的准确度相当;五个模型的特异性相似。XGBoost 模型的诊断准确性优于其他模型,训练数据的 AUC 为 0.8737(95% CI:0.8198-0.9277),测试数据的 AUC 为 0.9190(95% CI:0.8525-0.9854)。我们的研究结果凸显了 CT 放射组学与机器学习算法相结合的潜力,可准确地对宫颈癌肿瘤和正常子宫组织进行分类,并具有很高的识别能力。这种方法在临床诊断中大有可为。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
