A Study on Radiation Level at the Treatment Plane Due to Induced Activity in Linear Accelerator Head.

IF 0.7 Q4 RADIOLOGY, NUCLEAR MEDICINE & MEDICAL IMAGING Journal of Medical Physics Pub Date : 2024-07-01 Epub Date: 2024-09-21 DOI:10.4103/jmp.jmp_16_24

Sonal Varshney, Lalit Kumar, Umesh K Dwivedi, Pradeep Narayan

{"title":"A Study on Radiation Level at the Treatment Plane Due to Induced Activity in Linear Accelerator Head.","authors":"Sonal Varshney, Lalit Kumar, Umesh K Dwivedi, Pradeep Narayan","doi":"10.4103/jmp.jmp_16_24","DOIUrl":null,"url":null,"abstract":"Background: The induced activity is produced in the target, monitor chamber, flattening filter (FF), collimating jaws, etc., when a high-energy photon beam is utilized for radiation therapy. This may result in add-on exposure to radiation professionals.Objective: This study aims to measure the radiation level (RL) at the treatment plane due to induced activity in the linear accelerator head.Materials and methods: In this study, RLs were measured close to the isocenter (I), LINAC head (H), and 0.5 m lateral to the isocenter (L) inside the radiation bunker. The RLs were measured for field sizes (FS) 5 cm × 5 cm, 10 cm × 10 cm, 20 cm × 20 cm, 30 cm × 30 cm, and 40 cm × 40 cm, using 50, 100, 200, 300, 400, 500, and 1000 monitor units (MUs) at above said locations inside the bunker using 10 mega-voltage (MV), 10 MV FF free, and 15 MV radiation beam.Results: RL increases with an increase in FS and MUs at all mentioned locations inside the bunker, except for 40 cm × 40 cm FS. The present study shows that RL increases with an increase in radiation beam energy, and there was significant RL inside the bunker at the mentioned location, even after the 1 min of high-energy radiation exposure.Conclusion: Therefore, treatment with a high-energy beam should be scheduled in the later evening of the working day and the jaw should be closed to a minimum before entering the bunker and a sufficient time gap should be followed to minimize the additional exposure due to induced activation in high-energy treatment.","PeriodicalId":51719,"journal":{"name":"Journal of Medical Physics","volume":"49 3","pages":"480-486"},"PeriodicalIF":0.7000,"publicationDate":"2024-07-01","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC11548074/pdf/","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of Medical Physics","FirstCategoryId":"1085","ListUrlMain":"https://doi.org/10.4103/jmp.jmp_16_24","RegionNum":0,"RegionCategory":null,"ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"2024/9/21 0:00:00","PubModel":"Epub","JCR":"Q4","JCRName":"RADIOLOGY, NUCLEAR MEDICINE & MEDICAL IMAGING","Score":null,"Total":0}

引用次数: 0

Abstract

Background: The induced activity is produced in the target, monitor chamber, flattening filter (FF), collimating jaws, etc., when a high-energy photon beam is utilized for radiation therapy. This may result in add-on exposure to radiation professionals.

Objective: This study aims to measure the radiation level (RL) at the treatment plane due to induced activity in the linear accelerator head.

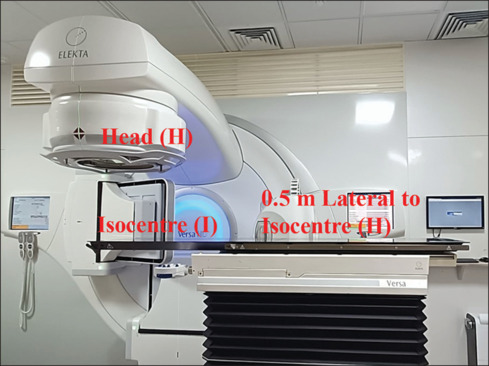

Materials and methods: In this study, RLs were measured close to the isocenter (I), LINAC head (H), and 0.5 m lateral to the isocenter (L) inside the radiation bunker. The RLs were measured for field sizes (FS) 5 cm × 5 cm, 10 cm × 10 cm, 20 cm × 20 cm, 30 cm × 30 cm, and 40 cm × 40 cm, using 50, 100, 200, 300, 400, 500, and 1000 monitor units (MUs) at above said locations inside the bunker using 10 mega-voltage (MV), 10 MV FF free, and 15 MV radiation beam.

Results: RL increases with an increase in FS and MUs at all mentioned locations inside the bunker, except for 40 cm × 40 cm FS. The present study shows that RL increases with an increase in radiation beam energy, and there was significant RL inside the bunker at the mentioned location, even after the 1 min of high-energy radiation exposure.

Conclusion: Therefore, treatment with a high-energy beam should be scheduled in the later evening of the working day and the jaw should be closed to a minimum before entering the bunker and a sufficient time gap should be followed to minimize the additional exposure due to induced activation in high-energy treatment.
