Photon and Neutron Dose Estimation Using Monte Carlo Simulation in TrueBeam's Room.

IF 0.7 Q4 RADIOLOGY, NUCLEAR MEDICINE & MEDICAL IMAGING Journal of Medical Physics Pub Date : 2024-07-01 Epub Date: 2024-09-21 DOI:10.4103/jmp.jmp_70_24

Soai Dang Quoc, Toshioh Fujibuchi, Hiroyuki Arakawa, Keisuke Hamada

{"title":"Photon and Neutron Dose Estimation Using Monte Carlo Simulation in TrueBeam's Room.","authors":"Soai Dang Quoc, Toshioh Fujibuchi, Hiroyuki Arakawa, Keisuke Hamada","doi":"10.4103/jmp.jmp_70_24","DOIUrl":null,"url":null,"abstract":"Purpose: The distribution of neutron ambient dose equivalent within the TrueBeam 10 MV photon chamber was investigated.Materials and methods: The research used particle and heavy ion transport code system (PHITS) code and JENDL-5.0 to simulate the neutron ambient dose equivalent on and around TrueBeam's head. The simulated results were compared with the measured results using CR-39 detectors when TrueBeam radiated 5000 monitor units of 10 MV photons with field sizes 20 cm × 20 cm and 0.5 cm × 0.5 cm.Results: Out of field size, the neutron ambient dose equivalents of the 0.5 cm × 0.5 cm field size are higher than those values of the 20 cm × 20 cm field size from 4% to 30%. The differences between the simulated value and the measured value of the neutron ambient dose equivalents at all points out of field size are smaller than 20%.Conclusion: The neutron ambient dose equivalents, simulated with PHITS and JENDL-5.0, are satisfied with the measured neutron ambient dose equivalent.","PeriodicalId":51719,"journal":{"name":"Journal of Medical Physics","volume":"49 3","pages":"473-479"},"PeriodicalIF":0.7000,"publicationDate":"2024-07-01","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC11548078/pdf/","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of Medical Physics","FirstCategoryId":"1085","ListUrlMain":"https://doi.org/10.4103/jmp.jmp_70_24","RegionNum":0,"RegionCategory":null,"ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"2024/9/21 0:00:00","PubModel":"Epub","JCR":"Q4","JCRName":"RADIOLOGY, NUCLEAR MEDICINE & MEDICAL IMAGING","Score":null,"Total":0}

引用次数: 0

Abstract

Purpose: The distribution of neutron ambient dose equivalent within the TrueBeam 10 MV photon chamber was investigated.

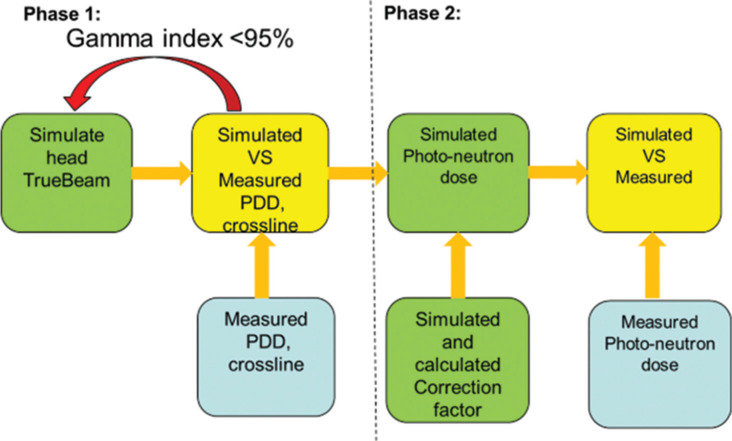

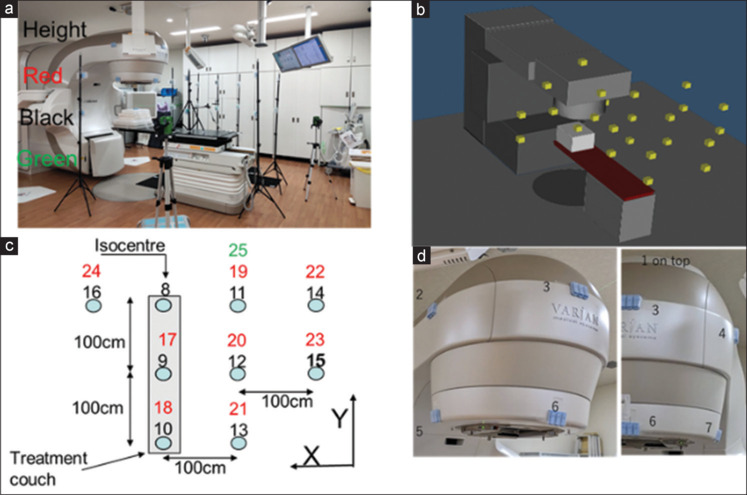

Materials and methods: The research used particle and heavy ion transport code system (PHITS) code and JENDL-5.0 to simulate the neutron ambient dose equivalent on and around TrueBeam's head. The simulated results were compared with the measured results using CR-39 detectors when TrueBeam radiated 5000 monitor units of 10 MV photons with field sizes 20 cm × 20 cm and 0.5 cm × 0.5 cm.

Results: Out of field size, the neutron ambient dose equivalents of the 0.5 cm × 0.5 cm field size are higher than those values of the 20 cm × 20 cm field size from 4% to 30%. The differences between the simulated value and the measured value of the neutron ambient dose equivalents at all points out of field size are smaller than 20%.

Conclusion: The neutron ambient dose equivalents, simulated with PHITS and JENDL-5.0, are satisfied with the measured neutron ambient dose equivalent.

查看原文

微信好友朋友圈 QQ好友复制链接

本刊更多论文

在 TrueBeam 实验室中使用蒙特卡罗模拟估算光子和中子剂量。

目的：研究 TrueBeam 10 MV 光子舱内中子环境剂量当量的分布：研究使用粒子和重离子传输代码系统 (PHITS) 代码和 JENDL-5.0 模拟 TrueBeam 头部和周围的中子环境剂量当量。模拟结果与使用 CR-39 探测器测量的结果进行了比较，当时 TrueBeam 辐射了 5000 个监测单位的 10 MV 光子，磁场大小为 20 厘米×20 厘米和 0.5 厘米×0.5 厘米：结果：在各种场尺寸中，0.5 厘米 × 0.5 厘米场尺寸的中子环境剂量当量比 20 厘米 × 20 厘米场尺寸的中子环境剂量当量高出 4% 到 30%。场外各点的中子环境剂量当量模拟值与测量值的差异均小于 20%：结论：用 PHITS 和 JENDL-5.0 模拟的中子环境剂量当量与测量的中子环境剂量当量相符。

本文章由计算机程序翻译，如有差异，请以英文原文为准。
