Imane Maimoune , Benson M. Kariuki , Abderrazzak El Moutaouakil Ala Allah , Intissar Nchioua , Abdulsalam Alsubari , Joel T. Mague , Abdelkader Zarrouk , Youssef Ramli
{"title":"Crystal structure and Hirshfeld surface analysis of N-(4-nitrophenyl)-2-(piperidin-1-yl)acetamide (lidocaine analogue)","authors":"Imane Maimoune , Benson M. Kariuki , Abderrazzak El Moutaouakil Ala Allah , Intissar Nchioua , Abdulsalam Alsubari , Joel T. Mague , Abdelkader Zarrouk , Youssef Ramli","doi":"10.1107/S205698902401185X","DOIUrl":null,"url":null,"abstract":"<div><div>The substituents on the phenyl ring are rotated slightly out of the mean plane of the ring while the piperidine moiety is nearly perpendicular to that plane. In the crystal, C—H⋯O hydrogen bonds form chains of molecules extending along the <em>c</em>-axis direction, which are linked by C=O⋯π(ring) interactions. A Hirshfeld surface analysis showed the majority of intermolecular interactions to be H⋯H contacts while O⋯H/H⋯O contacts are the second most numerous.</div></div><div><div>In the title molecule, C<sub>13</sub>H<sub>17</sub>N<sub>3</sub>O<sub>3</sub>, the substituents on the phenyl ring are rotated slightly out of the mean plane of the ring but the piperidine moiety is nearly perpendicular to that plane. In the crystal, C—H⋯O hydrogen bonds form chains of molecules extending along the <em>c</em>-axis direction, which are linked by C=O⋯π(ring) interactions. A Hirshfeld surface analysis showed the majority of intermolecular interactions to be H⋯H contacts while O⋯H/H⋯O contacts are the second most numerous.</div></div>","PeriodicalId":7367,"journal":{"name":"Acta Crystallographica Section E: Crystallographic Communications","volume":"81 1","pages":"Pages 69-73"},"PeriodicalIF":0.6000,"publicationDate":"2025-01-01","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC11701775/pdf/","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Acta Crystallographica Section E: Crystallographic Communications","FirstCategoryId":"1085","ListUrlMain":"https://www.sciencedirect.com/org/science/article/pii/S2056989025000118","RegionNum":0,"RegionCategory":null,"ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q4","JCRName":"CRYSTALLOGRAPHY","Score":null,"Total":0}
引用次数: 0
Abstract
The substituents on the phenyl ring are rotated slightly out of the mean plane of the ring while the piperidine moiety is nearly perpendicular to that plane. In the crystal, C—H⋯O hydrogen bonds form chains of molecules extending along the c-axis direction, which are linked by C=O⋯π(ring) interactions. A Hirshfeld surface analysis showed the majority of intermolecular interactions to be H⋯H contacts while O⋯H/H⋯O contacts are the second most numerous.

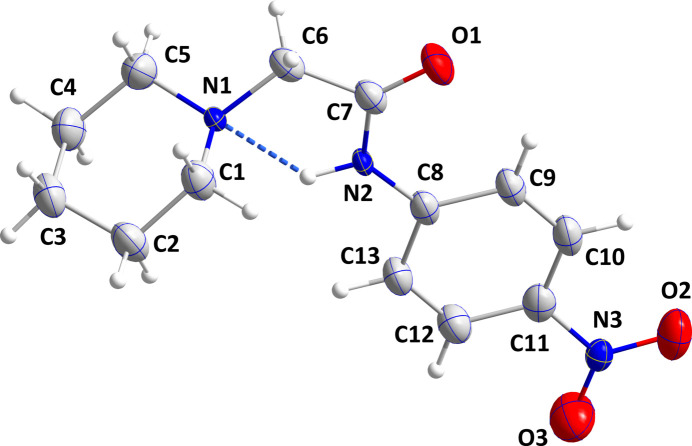

In the title molecule, C13H17N3O3, the substituents on the phenyl ring are rotated slightly out of the mean plane of the ring but the piperidine moiety is nearly perpendicular to that plane. In the crystal, C—H⋯O hydrogen bonds form chains of molecules extending along the c-axis direction, which are linked by C=O⋯π(ring) interactions. A Hirshfeld surface analysis showed the majority of intermolecular interactions to be H⋯H contacts while O⋯H/H⋯O contacts are the second most numerous.
期刊介绍：
Acta Crystallographica Section E: Crystallographic Communications is the IUCr''s open-access structural communications journal. It provides a fast, simple and easily accessible publication mechanism for crystal structure determinations of inorganic, metal-organic and organic compounds. The electronic submission, validation, refereeing and publication facilities of the journal ensure rapid and high-quality publication of fully validated structures. The primary article category is Research Communications; these are peer-reviewed articles describing one or more structure determinations with appropriate discussion of the science.
