Postoperative accuracy quantification of corrective osteotomies: standardisation of Q3D-CT methodology.

Abstract

Purpose: Currently, no gold standard exists for 3D analysis of virtually planned surgery accuracy postoperatively. The aim of this study was to present a new, validated and standardised methodology for 3D postoperative assessment of surgical accuracy in patients undergoing 3D virtually planned and guided corrective osteotomies.

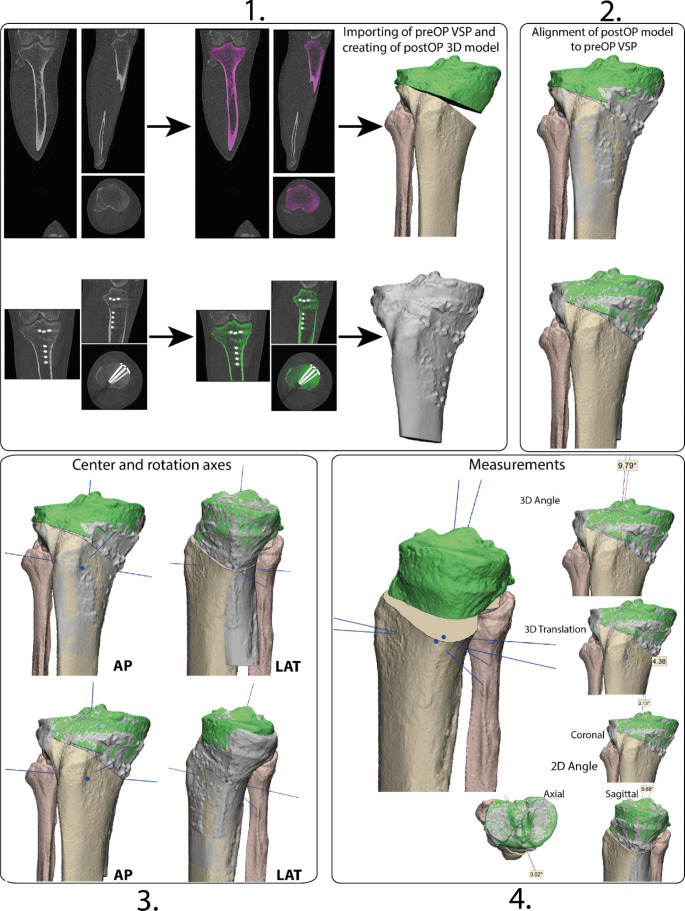

Methods: All patients who underwent 3D planned corrective osteotomy in 2021-2022 at our center with a postoperative CT were included. Postoperative surgical outcome was analysed with a postoperative CT and compared to the preoperative virtual surgical planning to determine achieved accuracy. Validation of the analysis was performed by evaluating the individual assessment of six experienced observers. A postoperative quantification was performed according to the proposed innovative methodology based on rotation axes of a virtual postoperative bone model aligned to the virtual preoperative bone model and virtual surgical planned bone model. To evaluate the intra-observer variability, one observer performed the assessment twice.

Results: Quantification of 13 patients according resulted in measurements with a median range (and its interquartile range) for 3D translation of: 2.43 mm (3.17), for the angle deviations: 3D rotation, 2D coronal, 2D sagittal and 2D axial were: 0.66° (1.66°), 0.74° (0.44°), 0.99° (1.27°), 2.37° (5.00°), respectively. The inter- and intraobserver reliability established with the Intraclass correlation coefficient was for all measurements excellent (> 0.76).

Conclusion: The proposed 3D CT technique provides an significant more accurate and objective method for assessment of surgical outcome of a guided corrective osteotomy. The present proposed novel methodology showed excellent inter- and intra-observer reliability with clinically acceptable absolute surgical outcome measurements.
