AxiWorm: a new tool using YOLOv5 to test antiparasitic drugs against Trichinella spiralis.

Abstract

Background-objective: Trichinella spiralis drug development and control need an objective high throughput system to assess first stage larvae (L1) viability. YOLOv5 is an image recognition tool easily trained to count muscular first stage larvae (L1) and recognize morphological differences. Here we developed a semi-automated system based on YOLOv5 to capture photographs of 96 well microplates and use them for L1 count and morphological damage evaluation after experimental drug treatments.

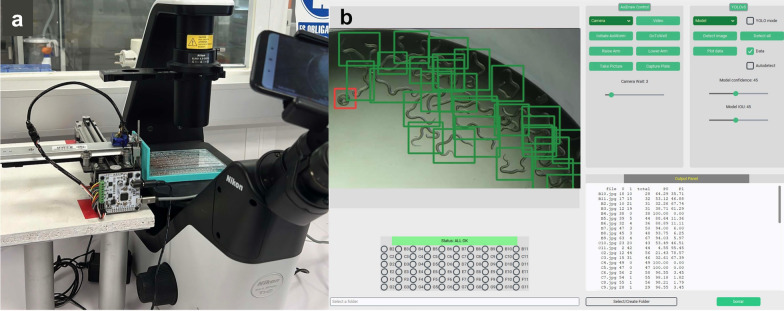

Material and methods: Morphological properties were used to distinguish L1 from debris after pepsin muscle digestion and distinguish healthy (serpentine) or damaged (coiled) L1s after 72 h untreated or treated with albendazole or mebendazole cultures. An AxiDraw robotic arm with a smartphone was used to scan 96 well microplates and store photographs. Images of L1 were manually annotated, and augmented based on exposure, bounding, blur, noise, and mosaicism.

Results: A total of 1309 photographs were obtained that after L1 labeling and data augmentation gave 27478 images. The final dataset of 12571 healthy and 14907 affected L1s was used for training, testing, and validating in a ratio of 70/20/10 respectively. A correlation of 92% was found in a blinded comparison with bare-eye assessment by experienced technicians.

Conclusion: YOLOv5 is capable of accurately counting and distinguishing between healthy and affected L1s, thus improving the performance of the assessment of meat inspection and potential new drugs.
