Effect of Electrolyte pH in Additive-Free NiFe Catalyst Electrodeposition for Electro-Catalytic OER Applications

Abstract

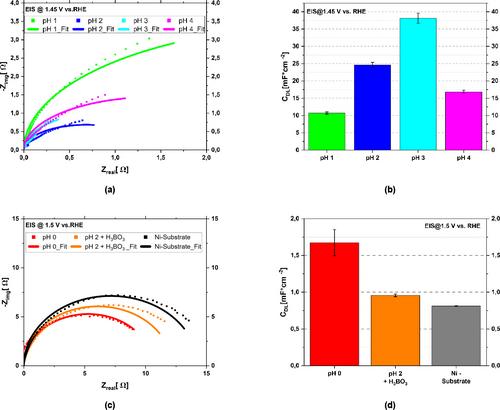

This study presents the correlation between electrolyte pH, surface morphology, chemical speciation and electro-catalytic oxygen evolution activity of additive-free electrodeposited NiFe catalysts for application in anion exchange membrane water electrolysis. Spherical morphologies were identified at pH 0, shifting towards honey-combed structures at pH 4 with increasing surface area, especially at pH 3. Further, the electrolyte pH was found to influence the NiFe composition and electro-catalytic activity. Enhanced OER activity was noted at pH 2 with overpotentials of 214 mV at 10 mA cm⁻² and 267 mV at 100 mA cm⁻². The results reveal that the electrolyte pH is a parameter not only influencing the morphology but also tailoring the surface area, Fe oxide and Fe hydroxide composition and consequently the catalytic activity. Further, the outcomes highlight the electrolyte pH as a key process parameter that should be adjusted according to the application, and may substitute the addition of electrolyte-additives, proposing a simpler method for improving catalyst electrodeposition.
