Non-invasive textural assessment of puffed corn cakes using air-coupled ultrasound

IF 5.8 2区农林科学 Q1 ENGINEERING, CHEMICAL Journal of Food Engineering Pub Date : 2025-05-01 Epub Date: 2025-01-13 DOI:10.1016/j.jfoodeng.2025.112470

Virginia Sanchez-Jimenez , Lola Fariñas , Anabella S. Giacomozzi , Alba Ginel , Amparo Quiles-Chuliá , Tomas E. Gomez Alvarez-Arenas , Jose Benedito , Jose V. Garcia-Perez

{"title":"Non-invasive textural assessment of puffed corn cakes using air-coupled ultrasound","authors":"Virginia Sanchez-Jimenez , Lola Fariñas , Anabella S. Giacomozzi , Alba Ginel , Amparo Quiles-Chuliá , Tomas E. Gomez Alvarez-Arenas , Jose Benedito , Jose V. Garcia-Perez","doi":"10.1016/j.jfoodeng.2025.112470","DOIUrl":null,"url":null,"abstract":"<div><div>This study aimed to evaluate the feasibility of using air-coupled ultrasound for the textural characterization of puffed corn cakes (PCC). For this purpose, air-coupled ultrasound measurements (0.15–0.4 MHz) were taken and instrumental texture, microstructural (Cryo-FESEM), moisture content and water activity analyses were performed on two different sets of PCC: 1) Seven commercial batches and 2) Four commercial batches stored at different relative humidities (10–40 %) in order to provoke slight changes in moisture content.</div><div>The variation in the transmission coefficient modulus with the frequency (ΔCT<sub>f</sub>, dB/MHz) was the ultrasonic parameter chosen due to fact that the jagged surface of the PCC hindered an accurate estimation of the ultrasound velocity. Thus, ΔCT<sub>f</sub> was able to explain the PCC viscoelastic behaviour and correlated significantly (p < 0.05) with the PCC apparent hardness (R<sup>2</sup> = 0.89) for every batch analyzed. ΔCT<sub>f</sub> also permitted the computation of the increase in attenuation due to microstructural changes brought about by moisture adsorption.</div></div>","PeriodicalId":359,"journal":{"name":"Journal of Food Engineering","volume":"392 ","pages":"Article 112470"},"PeriodicalIF":5.8000,"publicationDate":"2025-05-01","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of Food Engineering","FirstCategoryId":"97","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S0260877425000056","RegionNum":2,"RegionCategory":"农林科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"2025/1/13 0:00:00","PubModel":"Epub","JCR":"Q1","JCRName":"ENGINEERING, CHEMICAL","Score":null,"Total":0}

引用次数: 0

Abstract

This study aimed to evaluate the feasibility of using air-coupled ultrasound for the textural characterization of puffed corn cakes (PCC). For this purpose, air-coupled ultrasound measurements (0.15–0.4 MHz) were taken and instrumental texture, microstructural (Cryo-FESEM), moisture content and water activity analyses were performed on two different sets of PCC: 1) Seven commercial batches and 2) Four commercial batches stored at different relative humidities (10–40 %) in order to provoke slight changes in moisture content.

The variation in the transmission coefficient modulus with the frequency (ΔCT_f, dB/MHz) was the ultrasonic parameter chosen due to fact that the jagged surface of the PCC hindered an accurate estimation of the ultrasound velocity. Thus, ΔCT_f was able to explain the PCC viscoelastic behaviour and correlated significantly (p < 0.05) with the PCC apparent hardness (R² = 0.89) for every batch analyzed. ΔCT_f also permitted the computation of the increase in attenuation due to microstructural changes brought about by moisture adsorption.

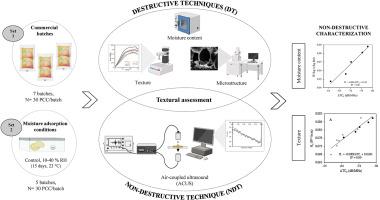

Abstract Image

查看原文

微信好友朋友圈 QQ好友复制链接

本刊更多论文

空气耦合超声对膨化玉米饼的无创质地评价

本研究旨在探讨空气耦合超声对膨化玉米饼（PCC）结构表征的可行性。为此，采用空气耦合超声测量（0.15-0.4 MHz），并对两组不同的PCC进行了仪器质地、微观结构（cro - fesem）、含水量和水活度分析：1)7个商业批次和2)4个商业批次在不同的相对湿度（10 - 40%）下储存，以引起含水量的轻微变化。透射系数模量随频率（ΔCTf, dB/MHz）的变化是选择的超声参数，因为PCC的锯齿状表面阻碍了超声速度的准确估计。因此，ΔCTf能够解释PCC粘弹性行为，并显著相关(p <；0.05)， PCC表观硬度（R2 = 0.89）。ΔCTf还允许计算由于水分吸附带来的微结构变化而导致的衰减的增加。

本文章由计算机程序翻译，如有差异，请以英文原文为准。
