Charge Polarization Boosting Electrochemical Urea Synthesis by Co-Reduction of CO2 and Nitrite in Dilute Concentrations with a Unity Carbon Selectivity

IF 16.9 1区 化学 Q1 CHEMISTRY, MULTIDISCIPLINARY Angewandte Chemie International Edition Pub Date : 2025-02-16 DOI:10.1002/anie.202500262
Zhihao Feng, Lu-Hua Zhang, Yabo Guo, Jiangyi Guo, Prof. Fei Li, Prof. Fengshou Yu
{"title":"Charge Polarization Boosting Electrochemical Urea Synthesis by Co-Reduction of CO2 and Nitrite in Dilute Concentrations with a Unity Carbon Selectivity","authors":"Zhihao Feng,&nbsp;Lu-Hua Zhang,&nbsp;Yabo Guo,&nbsp;Jiangyi Guo,&nbsp;Prof. Fei Li,&nbsp;Prof. Fengshou Yu","doi":"10.1002/anie.202500262","DOIUrl":null,"url":null,"abstract":"<p>Synthesis of urea through electrocatalytic coupling reaction of CO<sub>2</sub> with nitrite (NO<sub>2</sub><sup>−</sup>) represents a sustainable means to substitute the conventional energy-intensive urea synthetic protocol. The direct conversion of dilute NO<sub>2</sub><sup>−</sup> in real wastewaters to urea with high efficiency is still a significant challenge, as C-intermediates tend to go through an extensive reduction achieving mostly C-containing productions due to the lack of N-intermediates, originating from slow diffusion rate of NO<sub>2</sub><sup>−</sup>. Herein, we report the charge-polarized Fe<sup>δ−</sup>-Cu<sup>δ+</sup> dual sites in metal/carbon heterojunction material (Cu@Fe−N−C) for co-reduction of CO<sub>2</sub> and dilute NO<sub>2</sub><sup>−</sup> solution (100 ppm NO<sub>2</sub><sup>−</sup>-N). The electron-rich single Fe atoms dispersed N-doped carbon (Fe−N−C) restrain *CO desorption, and the electron-deficient Cu nanoparticles (Cu) promote the deep reduction of NO<sub>2</sub><sup>−</sup> to *NH<sub>2</sub>. As a result, the obtained Cu@Fe−N−C exhibits a high Faradaic efficiency for urea of 50.05 % with a yield of 850.57 mg h<sup>−1</sup> g<sup>−1</sup> at −0.35 V (<i>vs</i>. RHE) in a flow cell. Moreover, C<sub>urea-selectivity</sub> reaches to 100 % and a near-unity selectivity for the value-added urea and NH<sub>3</sub> is realized. The present results provide a valuable reference for the design of new catalysts for efficient synthesis of C−N compounds in dilute NO<sub>2</sub><sup>−</sup> solution.</p>","PeriodicalId":125,"journal":{"name":"Angewandte Chemie International Edition","volume":"64 15","pages":""},"PeriodicalIF":16.9000,"publicationDate":"2025-02-16","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Angewandte Chemie International Edition","FirstCategoryId":"92","ListUrlMain":"https://onlinelibrary.wiley.com/doi/10.1002/anie.202500262","RegionNum":1,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

Abstract

Synthesis of urea through electrocatalytic coupling reaction of CO2 with nitrite (NO2) represents a sustainable means to substitute the conventional energy-intensive urea synthetic protocol. The direct conversion of dilute NO2 in real wastewaters to urea with high efficiency is still a significant challenge, as C-intermediates tend to go through an extensive reduction achieving mostly C-containing productions due to the lack of N-intermediates, originating from slow diffusion rate of NO2. Herein, we report the charge-polarized Feδ−-Cuδ+ dual sites in metal/carbon heterojunction material (Cu@Fe−N−C) for co-reduction of CO2 and dilute NO2 solution (100 ppm NO2-N). The electron-rich single Fe atoms dispersed N-doped carbon (Fe−N−C) restrain *CO desorption, and the electron-deficient Cu nanoparticles (Cu) promote the deep reduction of NO2 to *NH2. As a result, the obtained Cu@Fe−N−C exhibits a high Faradaic efficiency for urea of 50.05 % with a yield of 850.57 mg h−1 g−1 at −0.35 V (vs. RHE) in a flow cell. Moreover, Curea-selectivity reaches to 100 % and a near-unity selectivity for the value-added urea and NH3 is realized. The present results provide a valuable reference for the design of new catalysts for efficient synthesis of C−N compounds in dilute NO2 solution.

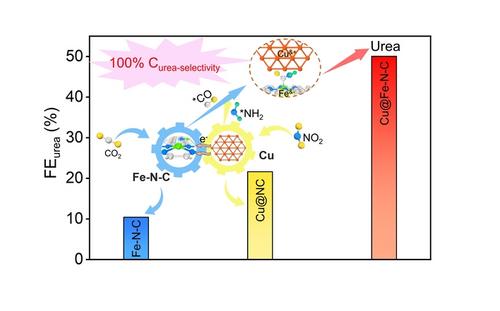

Abstract Image

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
电荷极化通过在稀释浓度下共同还原二氧化碳和亚硝酸盐来促进电化学尿素合成,同时具有统一的碳选择性
通过二氧化碳与亚硝酸盐(NO2‐)的电催化偶联反应合成尿素是替代传统能源密集型尿素合成方案的可持续手段。将实际废水中的稀释NO2‐直接高效地转化为尿素仍然是一个重大挑战,因为由于NO2‐扩散速度缓慢,缺乏N‐中间体,因此C‐中间体往往会经过广泛的还原,从而获得大多数含C的产物。在此,我们报道了金属/碳异质结材料(Cu@Fe‐N‐C)中电荷极化的Feδ‐‐Cuδ+双位点,用于co -还原CO2和稀NO2溶液(100 ppm NO2‐N)。富电子单铁原子分散的N掺杂碳(Fe‐N‐C)抑制了*CO的脱附,而缺电子的Cu纳米颗粒(Cu)促进了NO2 -深度还原为*NH2。结果表明,所得Cu@Fe‐N‐C在- 0.35 V(相对于RHE)下,对尿素具有50.05%的法拉氏效率,产率为850.57 mg h‐1 g‐1。此外,尿素选择性达到100%,实现了对尿素和NH3的近统一选择性。本研究结果为设计在稀NO2 -溶液中高效合成C - N化合物的新型催化剂提供了有价值的参考。
