An All-Metal Broadband Low SLL slot array antenna for use in 5G Sub-6 GHz networks.

IF 3.9 2区综合性期刊 Q1 MULTIDISCIPLINARY SCIENCES Scientific Reports Pub Date : 2025-02-19 DOI:10.1038/s41598-025-90696-8

Davood Zarifi, Ali Farahbakhsh, Michal Mrozowski

{"title":"An All-Metal Broadband Low SLL slot array antenna for use in 5G Sub-6 GHz networks.","authors":"Davood Zarifi, Ali Farahbakhsh, Michal Mrozowski","doi":"10.1038/s41598-025-90696-8","DOIUrl":null,"url":null,"abstract":"<p><p>This paper describes the design and implementation of an all-metal wideband cavity-backed slot array antenna specifically optimized for 5G sub-6 GHz networks. The antenna is engineered to feature low sidelobe levels (SLL), which enhance signal clarity and reduce interference. The proposed antenna utilizes a novel approach, directly exciting all radiating slots through the cavity layer, thus eliminating the need for a complex and lossy power dividing network. The antenna's performance is validated through full-wave simulations and measurements. The results demonstrate antenna's ability to achieve wideband operation from 3.1 to 4 GHz with - 19 dB SLL, peak gain of 20.2 dBi, and more than 90% total efficiency. The main advantages provided by the proposed slot arrays are wide bandwidth, high radiation efficiency, high gain, low sidelobe levels. The all-metal construction ensures robust power handling, and the simplified design contributes to its low complexity. These characteristics make the antenna a promising candidate for 5G deployments.</p>","PeriodicalId":21811,"journal":{"name":"Scientific Reports","volume":"15 1","pages":"6004"},"PeriodicalIF":3.9000,"publicationDate":"2025-02-19","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC11836421/pdf/","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Scientific Reports","FirstCategoryId":"103","ListUrlMain":"https://doi.org/10.1038/s41598-025-90696-8","RegionNum":2,"RegionCategory":"综合性期刊","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"MULTIDISCIPLINARY SCIENCES","Score":null,"Total":0}

引用次数: 0

Abstract

This paper describes the design and implementation of an all-metal wideband cavity-backed slot array antenna specifically optimized for 5G sub-6 GHz networks. The antenna is engineered to feature low sidelobe levels (SLL), which enhance signal clarity and reduce interference. The proposed antenna utilizes a novel approach, directly exciting all radiating slots through the cavity layer, thus eliminating the need for a complex and lossy power dividing network. The antenna's performance is validated through full-wave simulations and measurements. The results demonstrate antenna's ability to achieve wideband operation from 3.1 to 4 GHz with - 19 dB SLL, peak gain of 20.2 dBi, and more than 90% total efficiency. The main advantages provided by the proposed slot arrays are wide bandwidth, high radiation efficiency, high gain, low sidelobe levels. The all-metal construction ensures robust power handling, and the simplified design contributes to its low complexity. These characteristics make the antenna a promising candidate for 5G deployments.

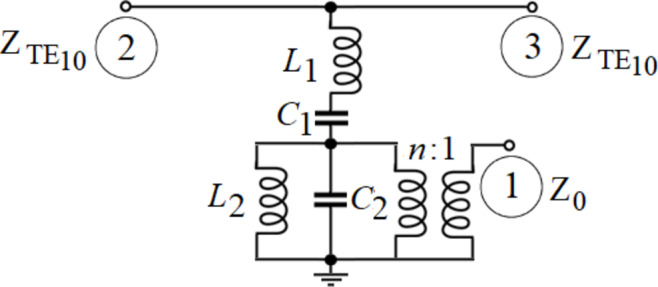

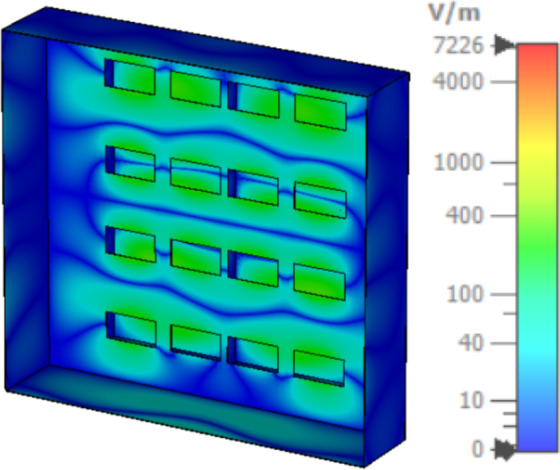

Abstract Image

查看原文

微信好友朋友圈 QQ好友复制链接

本刊更多论文

全金属宽带低SLL槽阵列天线，用于5G Sub-6 GHz网络。

本文介绍了一种专为5G sub-6 GHz网络优化的全金属宽带腔背槽阵列天线的设计和实现。该天线采用低旁瓣电平（SLL）设计，可提高信号清晰度并减少干扰。该天线采用了一种新颖的方法，通过空腔层直接激励所有的辐射槽，从而消除了对复杂和有损耗的功率划分网络的需要。通过全波仿真和测量验证了天线的性能。结果表明，该天线能够在3.1 ~ 4 GHz范围内实现宽带工作，SLL为- 19 dB，峰值增益为20.2 dBi，总效率超过90%。所提出的缝隙阵列的主要优点是带宽宽、辐射效率高、增益高、副瓣电平低。全金属结构确保了强大的功率处理，简化的设计有助于其低复杂性。这些特性使该天线成为5G部署的有希望的候选者。
