Development of iPSC-derived FIX-secreting hepatocyte sheet as a novel treatment tool for hemophilia B treatment.

Abstract

Background: Hemophilia B is an inherited disorder caused by a mutation in the FIX gene, which results in insufficient blood clotting factor IX (FIX) production from hepatocytes. Currently, there are no treatments for hemophilia B patients. The patients should be continuously administrated with clotting factor concentrates 2-3 times a month to prevent bleeding. Therefore, this study aimed to develop an engineered FIX-secreting hepatocyte sheet that can release FIX for an extended period. Within this study, the engineered FIX-secreting hepatocyte sheet was developed by integrating two core technologies, including a gene editing platform to generate FIX-secreting cells and cell sheet technology to improve cell delivery efficacy.

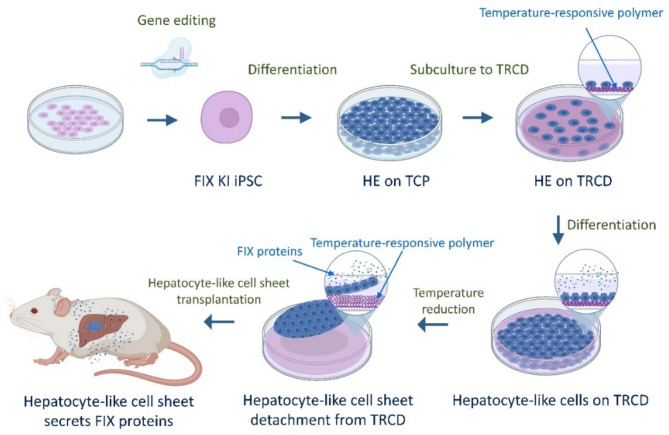

Methods: The human FIX gene was inserted into the APOC3 site of iPSCs by CRISPR/Cas9, which secretes the target protein after differentiation into hepatocytes. FIX-secreting hepatocyte sheets were obtained by temperature-responsive polymer grafted cell culture dishes (TRCD). Immunohistochemical and functional tests were performed for hepatocyte-like cells differentiated from FIX KI-iPSCs and wild-type iPSCs (WT-iPSCs). After validating the functional activity and secretion of FIX protein, the engineered hepatocyte-like cell sheets were transplanted to NOD/SCID mice for the in vivo experiments.

Results: The insertion of the human FIX gene into the APOC3 site demonstrated a significant increase in FIX secretion in hepatocyte-like cells differentiated from FIX KI-iPSCs compared with those obtained from WT-iPSCs. Among the iPSCs to hepatocyte differentiation stages, the hepatic endoderm stage was most suitable for seeding the cells on TRCD and generating cell sheets by temperature changes from 37^oC to room temperature when the hepatocyte-like cells have reached maturity. The engineered FIX-secreting cell sheets showed intensive expression of the FIX proteins without losing hepatocyte morphology for 20 days. Furthermore, an in vivo study showed that engineered FIX-secreting cell sheets retained their FIX secretion functions for two weeks, whereas single-cell injected traditionally were barely detected in the experimental animals.

Conclusions: The engineered FIX-secreting cell sheets fabricated from functionally improved iPSCs with practical cell delivery tools could be a promising tool for clinically treating Hemophilia B.
