Design and synthesis of sulfobetainic diketopyrrolopyrrole (DPP) laser dyes

IF 2.5 3区化学 Q2 CHEMISTRY, MULTIDISCIPLINARY New Journal of Chemistry Pub Date : 2012-09-04 DOI:10.1039/C2NJ40569E

Soumyaditya Mula, Delphine Hablot, Krishna K. Jagtap, Elodie Heyer and Raymond Ziessel

{"title":"Design and synthesis of sulfobetainic diketopyrrolopyrrole (DPP) laser dyes","authors":"Soumyaditya Mula, Delphine Hablot, Krishna K. Jagtap, Elodie Heyer and Raymond Ziessel","doi":"10.1039/C2NJ40569E","DOIUrl":null,"url":null,"abstract":"We have devised new diketopyrrolopyrrole <annref>dyes</annref> soluble in <annref>polar solvents</annref>. The colors of the <annref>dyes</annref> have been changed by substituting the 3,6-phenyl residues for thiophene groups. The solubility in <annref>polar solvents</annref> has been improved by <annref>alkylation</annref> of a dimethylaminopropyne fragment with a 1,3-sultone giving rise to sulfobetaine moieties. These <annref>dyes</annref> exhibit strong and broad absorption in the visible range (488 nm for the phenyl-DPP and 578 nm for the thiophene-DPP) and intense fluorescence at, respectively, 554 nm (ΦF 0.36) and 609 nm (ΦF 0.19). The phenyl-DPP <annref>dye</annref> exhibits a maximum broad band lasing efficiency of 14.6% and a maximum narrow band lasing efficiency of 9.5% with a wide tunable range (554 nm to 616 nm) on excitation with a second harmonic of a Q-switched Nd:YAG (532 nm) laser in <compname>MeOH</compname>/<compname>H2O</compname>. The lasing efficiency remains unaffected for hours. The thiophene-DPP <annref>dye</annref> does not show any lasing action.","PeriodicalId":95,"journal":{"name":"New Journal of Chemistry","volume":" 2","pages":" 303-308"},"PeriodicalIF":2.5000,"publicationDate":"2012-09-04","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://sci-hub-pdf.com/10.1039/C2NJ40569E","citationCount":"22","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"New Journal of Chemistry","FirstCategoryId":"92","ListUrlMain":"https://pubs.rsc.org/en/content/articlelanding/2013/nj/c2nj40569e","RegionNum":3,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}

引用次数: 22

Abstract

We have devised new diketopyrrolopyrrole dyes soluble in polar solvents. The colors of the dyes have been changed by substituting the 3,6-phenyl residues for thiophene groups. The solubility in polar solvents has been improved by alkylation of a dimethylaminopropyne fragment with a 1,3-sultone giving rise to sulfobetaine moieties. These dyes exhibit strong and broad absorption in the visible range (488 nm for the phenyl-DPP and 578 nm for the thiophene-DPP) and intense fluorescence at, respectively, 554 nm (Φ_F 0.36) and 609 nm (Φ_F 0.19). The phenyl-DPP dye exhibits a maximum broad band lasing efficiency of 14.6% and a maximum narrow band lasing efficiency of 9.5% with a wide tunable range (554 nm to 616 nm) on excitation with a second harmonic of a Q-switched Nd:YAG (532 nm) laser in MeOH/H₂O. The lasing efficiency remains unaffected for hours. The thiophene-DPP dye does not show any lasing action.

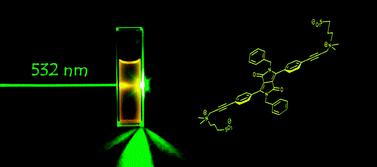

Abstract Image

查看原文

微信好友朋友圈 QQ好友复制链接

本刊更多论文

巯基二酮吡咯(DPP)激光染料的设计与合成

我们设计了一种可溶于极性溶剂的新型双酮吡咯染料。通过将3,6-苯基残基取代噻吩基团，染料的颜色发生了变化。在极性溶剂中的溶解度通过二甲氨基丙炔片段与1,3-磺胺酮的烷基化反应得到了磺胺甜菜碱部分。这些染料在可见光范围内(苯基- dpp为488 nm，噻吩- dpp为578 nm)具有强而宽的吸收，荧光强度分别为554 nm (ΦF 0.36)和609 nm (ΦF 0.19)。苯基dpp染料在MeOH/H2O中受调q Nd:YAG (532 nm)激光二次谐波激发时，最大宽带激光效率为14.6%，最大窄带激光效率为9.5%，可调谐范围为554 ~ 616 nm。激光效率在数小时内不受影响。噻吩- dpp染料不表现出任何激光作用。

本文章由计算机程序翻译，如有差异，请以英文原文为准。
