Mechanical Evaluation on Carbon/Basalt Fiber-Reinforced Hybrid Polymer Matrix Composite

IF 4.6 Q2 MATERIALS SCIENCE, BIOMATERIALS ACS Applied Bio Materials Pub Date : 2022-09-16 DOI:10.1155/2022/7742349
R. Alshgari, M. Prasad, B. K. Srivastava, Mohammed Saleh Al Ansari, Parul Gupta, A. Sivakumar, S. Wabaidur, M. Islam, Abdi Diriba
{"title":"Mechanical Evaluation on Carbon/Basalt Fiber-Reinforced Hybrid Polymer Matrix Composite","authors":"R. Alshgari, M. Prasad, B. K. Srivastava, Mohammed Saleh Al Ansari, Parul Gupta, A. Sivakumar, S. Wabaidur, M. Islam, Abdi Diriba","doi":"10.1155/2022/7742349","DOIUrl":null,"url":null,"abstract":"This work is about making hybrid composite materials out of carbon fiber mats and basalt fiber mats that are 40% reinforced with a 60% epoxy polymer matrix. Traditional hand layup has been used for the fabrication process to make five laminates of these two fibers. The mechanical properties of the hybrid composite were evaluated by measuring its tensile strength, flexural strength, impact energy, and hardness. The results showed that adding more carbon fiber layers to the composite made a big difference in its mechanical properties. In sample A, the tensile strength is 280 MPa, the flexural strength is 247 MPa, and the basalt fiber can keep more impact energy of 24 J in sample E, along with the carbon fiber and epoxy matrix. A scanning electron microscope was used to figure out how carbon/basalt fiber composite laminates break down.","PeriodicalId":2,"journal":{"name":"ACS Applied Bio Materials","volume":null,"pages":null},"PeriodicalIF":4.6000,"publicationDate":"2022-09-16","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"1","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"ACS Applied Bio Materials","FirstCategoryId":"5","ListUrlMain":"https://doi.org/10.1155/2022/7742349","RegionNum":0,"RegionCategory":null,"ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"MATERIALS SCIENCE, BIOMATERIALS","Score":null,"Total":0}
引用次数: 1

Abstract

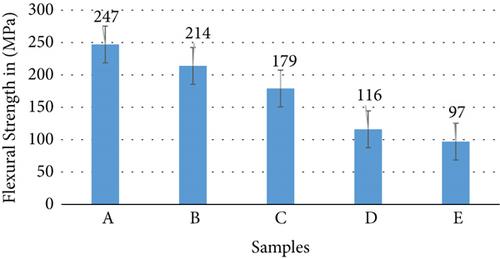

This work is about making hybrid composite materials out of carbon fiber mats and basalt fiber mats that are 40% reinforced with a 60% epoxy polymer matrix. Traditional hand layup has been used for the fabrication process to make five laminates of these two fibers. The mechanical properties of the hybrid composite were evaluated by measuring its tensile strength, flexural strength, impact energy, and hardness. The results showed that adding more carbon fiber layers to the composite made a big difference in its mechanical properties. In sample A, the tensile strength is 280 MPa, the flexural strength is 247 MPa, and the basalt fiber can keep more impact energy of 24 J in sample E, along with the carbon fiber and epoxy matrix. A scanning electron microscope was used to figure out how carbon/basalt fiber composite laminates break down.
查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
碳/玄武岩纤维增强混杂聚合物基复合材料力学性能评价
这项工作是用碳纤维垫和玄武岩纤维垫制成混合复合材料,其中40%的纤维垫用60%的环氧聚合物基体增强。传统的手工叠层法已被用于制造这两种纤维的五层板。通过测量复合材料的拉伸强度、弯曲强度、冲击能和硬度来评价复合材料的力学性能。结果表明,在复合材料中加入更多的碳纤维层对复合材料的力学性能有较大的影响。A试样的抗拉强度为280mpa,抗折强度为247mpa, E试样中玄武岩纤维与碳纤维、环氧树脂基体相比,更能保持24j的冲击能。利用扫描电子显微镜研究了碳/玄武岩纤维复合材料层合板的分解过程。
