{"title":"肿瘤临床试验中对照组生存数据的合成数据生成技术比较:模拟研究","authors":"Ippei Akiya, Takuma Ishihara, Keiichi Yamamoto","doi":"10.2196/55118","DOIUrl":null,"url":null,"abstract":"<p><strong>Background: </strong>Synthetic patient data (SPD) generation for survival analysis in oncology trials holds significant potential for accelerating clinical development. Various machine learning methods, including classification and regression trees (CART), random forest (RF), Bayesian network (BN), and conditional tabular generative adversarial network (CTGAN), have been used for this purpose, but their performance in reflecting actual patient survival data remains under investigation.</p><p><strong>Objective: </strong>The aim of this study was to determine the most suitable SPD generation method for oncology trials, specifically focusing on both progression-free survival (PFS) and overall survival (OS), which are the primary evaluation end points in oncology trials. To achieve this goal, we conducted a comparative simulation of 4 generation methods, including CART, RF, BN, and the CTGAN, and the performance of each method was evaluated.</p><p><strong>Methods: </strong>Using multiple clinical trial data sets, 1000 data sets were generated by using each method for each clinical trial data set and evaluated as follows: (1) median survival time (MST) of PFS and OS; (2) hazard ratio distance (HRD), which indicates the similarity between the actual survival function and a synthetic survival function; and (3) visual analysis of Kaplan-Meier (KM) plots. Each method's ability to mimic the statistical properties of real patient data was evaluated from these multiple angles.</p><p><strong>Results: </strong>In most simulation cases, CART demonstrated the high percentages of MSTs for synthetic data falling within the 95% CI range of the MST of the actual data. These percentages ranged from 88.8% to 98.0% for PFS and from 60.8% to 96.1% for OS. In the evaluation of HRD, CART revealed that HRD values were concentrated at approximately 0.9. Conversely, for the other methods, no consistent trend was observed for either PFS or OS. CART demonstrated better similarity than RF, in that CART caused overfitting and RF (a kind of ensemble learning approach) prevented it. In SPD generation, the statistical properties close to the actual data should be the focus, not a well-generalized prediction model. Both the BN and CTGAN methods cannot accurately reflect the statistical properties of the actual data because small data sets are not suitable.</p><p><strong>Conclusions: </strong>As a method for generating SPD for survival data from small data sets, such as clinical trial data, CART demonstrated to be the most effective method compared to RF, BN, and CTGAN. Additionally, it is possible to improve CART-based generation methods by incorporating feature engineering and other methods in future work.</p>","PeriodicalId":56334,"journal":{"name":"JMIR Medical Informatics","volume":null,"pages":null},"PeriodicalIF":3.1000,"publicationDate":"2024-06-18","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC11196245/pdf/","citationCount":"0","resultStr":"{\"title\":\"Comparison of Synthetic Data Generation Techniques for Control Group Survival Data in Oncology Clinical Trials: Simulation Study.\",\"authors\":\"Ippei Akiya, Takuma Ishihara, Keiichi Yamamoto\",\"doi\":\"10.2196/55118\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p><strong>Background: </strong>Synthetic patient data (SPD) generation for survival analysis in oncology trials holds significant potential for accelerating clinical development. Various machine learning methods, including classification and regression trees (CART), random forest (RF), Bayesian network (BN), and conditional tabular generative adversarial network (CTGAN), have been used for this purpose, but their performance in reflecting actual patient survival data remains under investigation.</p><p><strong>Objective: </strong>The aim of this study was to determine the most suitable SPD generation method for oncology trials, specifically focusing on both progression-free survival (PFS) and overall survival (OS), which are the primary evaluation end points in oncology trials. To achieve this goal, we conducted a comparative simulation of 4 generation methods, including CART, RF, BN, and the CTGAN, and the performance of each method was evaluated.</p><p><strong>Methods: </strong>Using multiple clinical trial data sets, 1000 data sets were generated by using each method for each clinical trial data set and evaluated as follows: (1) median survival time (MST) of PFS and OS; (2) hazard ratio distance (HRD), which indicates the similarity between the actual survival function and a synthetic survival function; and (3) visual analysis of Kaplan-Meier (KM) plots. Each method's ability to mimic the statistical properties of real patient data was evaluated from these multiple angles.</p><p><strong>Results: </strong>In most simulation cases, CART demonstrated the high percentages of MSTs for synthetic data falling within the 95% CI range of the MST of the actual data. These percentages ranged from 88.8% to 98.0% for PFS and from 60.8% to 96.1% for OS. In the evaluation of HRD, CART revealed that HRD values were concentrated at approximately 0.9. Conversely, for the other methods, no consistent trend was observed for either PFS or OS. CART demonstrated better similarity than RF, in that CART caused overfitting and RF (a kind of ensemble learning approach) prevented it. In SPD generation, the statistical properties close to the actual data should be the focus, not a well-generalized prediction model. Both the BN and CTGAN methods cannot accurately reflect the statistical properties of the actual data because small data sets are not suitable.</p><p><strong>Conclusions: </strong>As a method for generating SPD for survival data from small data sets, such as clinical trial data, CART demonstrated to be the most effective method compared to RF, BN, and CTGAN. Additionally, it is possible to improve CART-based generation methods by incorporating feature engineering and other methods in future work.</p>\",\"PeriodicalId\":56334,\"journal\":{\"name\":\"JMIR Medical Informatics\",\"volume\":null,\"pages\":null},\"PeriodicalIF\":3.1000,\"publicationDate\":\"2024-06-18\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC11196245/pdf/\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"JMIR Medical Informatics\",\"FirstCategoryId\":\"3\",\"ListUrlMain\":\"https://doi.org/10.2196/55118\",\"RegionNum\":3,\"RegionCategory\":\"医学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q2\",\"JCRName\":\"MEDICAL INFORMATICS\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"JMIR Medical Informatics","FirstCategoryId":"3","ListUrlMain":"https://doi.org/10.2196/55118","RegionNum":3,"RegionCategory":"医学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"MEDICAL INFORMATICS","Score":null,"Total":0}
引用次数: 0
摘要
背景:在肿瘤试验中生成用于生存分析的合成患者数据(SPD)对于加快临床开发具有巨大潜力。各种机器学习方法,包括分类和回归树(CART)、随机森林(RF)、贝叶斯网络(BN)和条件表格生成对抗网络(CTGAN),已被用于此目的,但它们在反映实际患者生存数据方面的性能仍有待研究:本研究的目的是确定最适合肿瘤试验的 SPD 生成方法,特别是针对无进展生存期(PFS)和总生存期(OS)这两个肿瘤试验的主要评估终点。为实现这一目标,我们对 CART、RF、BN 和 CTGAN 等 4 种生成方法进行了比较模拟,并对每种方法的性能进行了评估:使用多个临床试验数据集,针对每个临床试验数据集使用每种方法生成 1000 个数据集,并进行如下评估:(1) PFS 和 OS 的中位生存时间 (MST);(2) 危险比距离 (HRD),表示实际生存函数与合成生存函数之间的相似性;(3) Kaplan-Meier (KM) 图的视觉分析。每种方法模拟真实患者数据统计特性的能力都是从这些角度进行评估的:在大多数模拟案例中,CART 显示合成数据的 MST 在实际数据 MST 的 95% CI 范围内的百分比很高。PFS和OS的百分比分别为88.8%和98.0%,OS的百分比分别为60.8%和96.1%。在评估 HRD 时,CART 显示 HRD 值集中在 0.9 左右。相反,对于其他方法,PFS 和 OS 均未观察到一致的趋势。与 RF 相比,CART 表现出更好的相似性,因为 CART 会导致过度拟合,而 RF(一种集合学习方法)可以防止过度拟合。在生成 SPD 时,重点应放在与实际数据相近的统计特性上,而不是一个通用的预测模型。BN 和 CTGAN 方法都无法准确反映实际数据的统计特性,因为小数据集并不适合:作为从小规模数据集(如临床试验数据)中生成生存数据 SPD 的方法,与 RF、BN 和 CTGAN 相比,CART 被证明是最有效的方法。此外,在未来的工作中,还可以通过结合特征工程和其他方法来改进基于 CART 的生成方法。
Comparison of Synthetic Data Generation Techniques for Control Group Survival Data in Oncology Clinical Trials: Simulation Study.
Background: Synthetic patient data (SPD) generation for survival analysis in oncology trials holds significant potential for accelerating clinical development. Various machine learning methods, including classification and regression trees (CART), random forest (RF), Bayesian network (BN), and conditional tabular generative adversarial network (CTGAN), have been used for this purpose, but their performance in reflecting actual patient survival data remains under investigation.
Objective: The aim of this study was to determine the most suitable SPD generation method for oncology trials, specifically focusing on both progression-free survival (PFS) and overall survival (OS), which are the primary evaluation end points in oncology trials. To achieve this goal, we conducted a comparative simulation of 4 generation methods, including CART, RF, BN, and the CTGAN, and the performance of each method was evaluated.

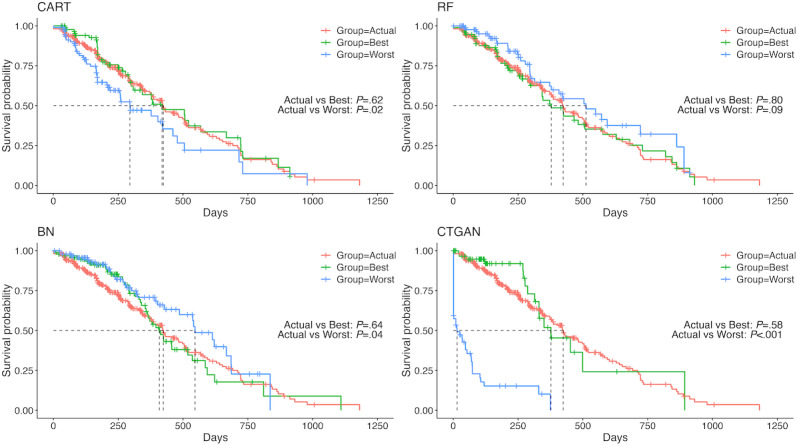

Methods: Using multiple clinical trial data sets, 1000 data sets were generated by using each method for each clinical trial data set and evaluated as follows: (1) median survival time (MST) of PFS and OS; (2) hazard ratio distance (HRD), which indicates the similarity between the actual survival function and a synthetic survival function; and (3) visual analysis of Kaplan-Meier (KM) plots. Each method's ability to mimic the statistical properties of real patient data was evaluated from these multiple angles.

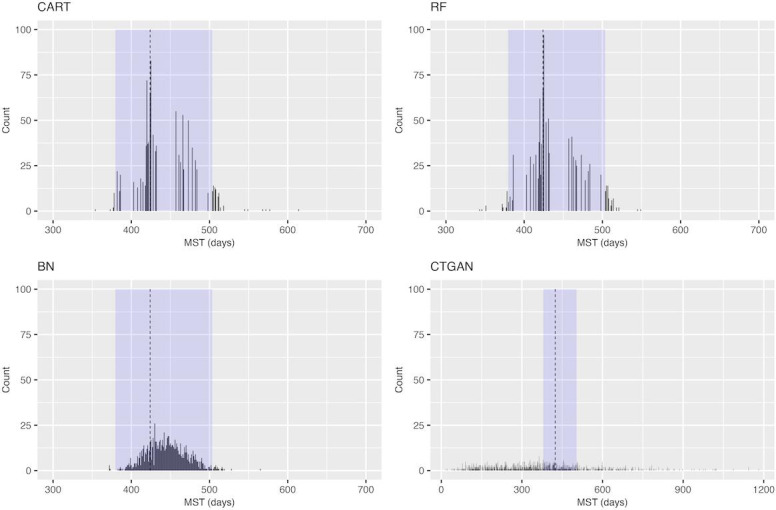

Results: In most simulation cases, CART demonstrated the high percentages of MSTs for synthetic data falling within the 95% CI range of the MST of the actual data. These percentages ranged from 88.8% to 98.0% for PFS and from 60.8% to 96.1% for OS. In the evaluation of HRD, CART revealed that HRD values were concentrated at approximately 0.9. Conversely, for the other methods, no consistent trend was observed for either PFS or OS. CART demonstrated better similarity than RF, in that CART caused overfitting and RF (a kind of ensemble learning approach) prevented it. In SPD generation, the statistical properties close to the actual data should be the focus, not a well-generalized prediction model. Both the BN and CTGAN methods cannot accurately reflect the statistical properties of the actual data because small data sets are not suitable.
Conclusions: As a method for generating SPD for survival data from small data sets, such as clinical trial data, CART demonstrated to be the most effective method compared to RF, BN, and CTGAN. Additionally, it is possible to improve CART-based generation methods by incorporating feature engineering and other methods in future work.
