用于高增益短波红外线光电探测器的双珀罗夫斯晶体量子点

IF 8 2区 材料科学 Q1 MATERIALS SCIENCE, MULTIDISCIPLINARY Advanced Optical Materials Pub Date : 2024-06-27 DOI:10.1002/adom.202401252
An‐Ting Jhang, Po‐Cheng Tsai, Yi‐Ting Tsai, Shih‐Yen Lin, Mu‐Huai Fang
{"title":"用于高增益短波红外线光电探测器的双珀罗夫斯晶体量子点","authors":"An‐Ting Jhang, Po‐Cheng Tsai, Yi‐Ting Tsai, Shih‐Yen Lin, Mu‐Huai Fang","doi":"10.1002/adom.202401252","DOIUrl":null,"url":null,"abstract":"Short‐wave infrared (SWIR) photodetectors utilizing quantum dot (QD) material systems, harnessed through the quantum confinement effect to tune the absorption wavelength, offer an attractive avenue for the development of cost‐effective and solution‐processed photodetectors compared to the relatively expensive compound semiconductor photodetectors. However, the pores between the QDs and poor chemical stability after surface modification have impeded the practical application of quantum‐dot‐based photodetectors. In this study, high‐gain SWIR photodetector is demonstrated and achieved by incorporating PbS QD into the Cs<jats:sub>2</jats:sub>AgBiBr<jats:sub>6</jats:sub> halide‐based double perovskite matrix, as confirmed by X‐ray diffraction, transmission electron microscope, and energy dispersive spectrometer. The thin film structure and detailed local structure are revealed by 2D grazing‐incidence wide and small‐angle X‐ray scattering. The resulting PbS@Cs<jats:sub>2</jats:sub>AgBiBr<jats:sub>6</jats:sub>‐based SWIR photodetector exhibits remarkable performance with a responsivity and detectivity of 15000 A W<jats:sup>−1</jats:sup> and 1.31 × 10<jats:sup>12</jats:sup> cm Hz<jats:sup>1/2</jats:sup> W<jats:sup>−1</jats:sup>, respectively. This study offers valuable insights into the design of composite materials for high‐gain SWIR photodetectors.","PeriodicalId":116,"journal":{"name":"Advanced Optical Materials","volume":null,"pages":null},"PeriodicalIF":8.0000,"publicationDate":"2024-06-27","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Quantum‐Dots‐In‐Double‐Perovskite for High‐Gain Short‐Wave Infrared Photodetector\",\"authors\":\"An‐Ting Jhang, Po‐Cheng Tsai, Yi‐Ting Tsai, Shih‐Yen Lin, Mu‐Huai Fang\",\"doi\":\"10.1002/adom.202401252\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"Short‐wave infrared (SWIR) photodetectors utilizing quantum dot (QD) material systems, harnessed through the quantum confinement effect to tune the absorption wavelength, offer an attractive avenue for the development of cost‐effective and solution‐processed photodetectors compared to the relatively expensive compound semiconductor photodetectors. However, the pores between the QDs and poor chemical stability after surface modification have impeded the practical application of quantum‐dot‐based photodetectors. In this study, high‐gain SWIR photodetector is demonstrated and achieved by incorporating PbS QD into the Cs<jats:sub>2</jats:sub>AgBiBr<jats:sub>6</jats:sub> halide‐based double perovskite matrix, as confirmed by X‐ray diffraction, transmission electron microscope, and energy dispersive spectrometer. The thin film structure and detailed local structure are revealed by 2D grazing‐incidence wide and small‐angle X‐ray scattering. The resulting PbS@Cs<jats:sub>2</jats:sub>AgBiBr<jats:sub>6</jats:sub>‐based SWIR photodetector exhibits remarkable performance with a responsivity and detectivity of 15000 A W<jats:sup>−1</jats:sup> and 1.31 × 10<jats:sup>12</jats:sup> cm Hz<jats:sup>1/2</jats:sup> W<jats:sup>−1</jats:sup>, respectively. This study offers valuable insights into the design of composite materials for high‐gain SWIR photodetectors.\",\"PeriodicalId\":116,\"journal\":{\"name\":\"Advanced Optical Materials\",\"volume\":null,\"pages\":null},\"PeriodicalIF\":8.0000,\"publicationDate\":\"2024-06-27\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Advanced Optical Materials\",\"FirstCategoryId\":\"88\",\"ListUrlMain\":\"https://doi.org/10.1002/adom.202401252\",\"RegionNum\":2,\"RegionCategory\":\"材料科学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"MATERIALS SCIENCE, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Advanced Optical Materials","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1002/adom.202401252","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

与相对昂贵的化合物半导体光电探测器相比,利用量子点(QD)材料系统的短波红外(SWIR)光电探测器,通过量子约束效应来调整吸收波长,为开发具有成本效益的溶液处理光电探测器提供了一条极具吸引力的途径。然而,量子点之间的孔隙和表面修饰后较差的化学稳定性阻碍了基于量子点的光电探测器的实际应用。在这项研究中,通过 X 射线衍射、透射电子显微镜和能量色散光谱仪的证实,在基于 Cs2AgBiBr6 卤化物的双包晶石基质中加入 PbS QD,展示并实现了高增益的 SWIR 光电探测器。二维掠入射广角和小角 X 射线散射揭示了薄膜结构和详细的局部结构。所制备的基于 PbS@Cs2AgBiBr6 的 SWIR 光电探测器性能卓越,响应率和探测率分别达到 15000 A W-1 和 1.31 × 1012 cm Hz1/2 W-1。这项研究为设计用于高增益 SWIR 光电探测器的复合材料提供了宝贵的启示。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

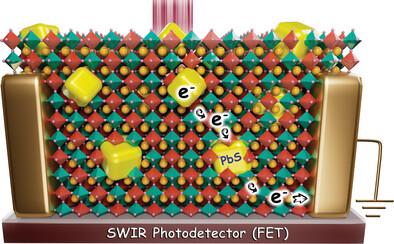

摘要图片

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
Quantum‐Dots‐In‐Double‐Perovskite for High‐Gain Short‐Wave Infrared Photodetector
Short‐wave infrared (SWIR) photodetectors utilizing quantum dot (QD) material systems, harnessed through the quantum confinement effect to tune the absorption wavelength, offer an attractive avenue for the development of cost‐effective and solution‐processed photodetectors compared to the relatively expensive compound semiconductor photodetectors. However, the pores between the QDs and poor chemical stability after surface modification have impeded the practical application of quantum‐dot‐based photodetectors. In this study, high‐gain SWIR photodetector is demonstrated and achieved by incorporating PbS QD into the Cs2AgBiBr6 halide‐based double perovskite matrix, as confirmed by X‐ray diffraction, transmission electron microscope, and energy dispersive spectrometer. The thin film structure and detailed local structure are revealed by 2D grazing‐incidence wide and small‐angle X‐ray scattering. The resulting PbS@Cs2AgBiBr6‐based SWIR photodetector exhibits remarkable performance with a responsivity and detectivity of 15000 A W−1 and 1.31 × 1012 cm Hz1/2 W−1, respectively. This study offers valuable insights into the design of composite materials for high‐gain SWIR photodetectors.
