关于六氟异丙氧基钛(IV)的路易斯碱加合物结构。

IF 0.7 4区 化学 Q4 CHEMISTRY, MULTIDISCIPLINARY Acta Crystallographica Section C Structural Chemistry Pub Date : 2024-09-01 Epub Date: 2024-08-13 DOI:10.1107/S2053229624006843
William G Van Der Sluys
{"title":"关于六氟异丙氧基钛(IV)的路易斯碱加合物结构。","authors":"William G Van Der Sluys","doi":"10.1107/S2053229624006843","DOIUrl":null,"url":null,"abstract":"<p><p>The reaction of titanium(IV) chloride with sodium hexafluoroisopropoxide, carried out in hexafluoroisopropanol, produces titanium(IV) hexafluoroisopropoxide, which is a liquid at room temperature. Recrystallization from coordinating solvents, such as acetonitrile or tetrahydrofuran, results in the formation of bis-solvate complexes. These compounds are of interest as possible Ziegler-Natta polymerization catalysts. The acetonitrile complex had been structurally characterized previously and adopts a distorted octahedral structure in which the nitrile ligands adopt a cis configuration, with nitrogen lone pairs coordinated to the metal. The low-melting tetrahydrofuran complex has not provided crystals suitable for single-crystal X-ray analysis. However, the structure of chloridotris(hexafluoroisopropoxido-κO)bis(tetrahydrofuran-κO)titanium(IV), [Ti(C<sub>3</sub>HF<sub>6</sub>O)<sub>3</sub>Cl(C<sub>4</sub>H<sub>8</sub>O)<sub>2</sub>], has been obtained and adopts a distorted octahedral coordination geometry, with a facial arrangement of the alkoxide ligands and adjacent tetrahydrofuran ligands, coordinated by way of metal-oxygen polar coordinate interactions.</p>","PeriodicalId":7115,"journal":{"name":"Acta Crystallographica Section C Structural Chemistry","volume":null,"pages":null},"PeriodicalIF":0.7000,"publicationDate":"2024-09-01","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC11370998/pdf/","citationCount":"0","resultStr":"{\"title\":\"Concerning the structures of Lewis base adducts of titanium(IV) hexafluoroisopropoxide.\",\"authors\":\"William G Van Der Sluys\",\"doi\":\"10.1107/S2053229624006843\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p><p>The reaction of titanium(IV) chloride with sodium hexafluoroisopropoxide, carried out in hexafluoroisopropanol, produces titanium(IV) hexafluoroisopropoxide, which is a liquid at room temperature. Recrystallization from coordinating solvents, such as acetonitrile or tetrahydrofuran, results in the formation of bis-solvate complexes. These compounds are of interest as possible Ziegler-Natta polymerization catalysts. The acetonitrile complex had been structurally characterized previously and adopts a distorted octahedral structure in which the nitrile ligands adopt a cis configuration, with nitrogen lone pairs coordinated to the metal. The low-melting tetrahydrofuran complex has not provided crystals suitable for single-crystal X-ray analysis. However, the structure of chloridotris(hexafluoroisopropoxido-κO)bis(tetrahydrofuran-κO)titanium(IV), [Ti(C<sub>3</sub>HF<sub>6</sub>O)<sub>3</sub>Cl(C<sub>4</sub>H<sub>8</sub>O)<sub>2</sub>], has been obtained and adopts a distorted octahedral coordination geometry, with a facial arrangement of the alkoxide ligands and adjacent tetrahydrofuran ligands, coordinated by way of metal-oxygen polar coordinate interactions.</p>\",\"PeriodicalId\":7115,\"journal\":{\"name\":\"Acta Crystallographica Section C Structural Chemistry\",\"volume\":null,\"pages\":null},\"PeriodicalIF\":0.7000,\"publicationDate\":\"2024-09-01\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC11370998/pdf/\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Acta Crystallographica Section C Structural Chemistry\",\"FirstCategoryId\":\"92\",\"ListUrlMain\":\"https://doi.org/10.1107/S2053229624006843\",\"RegionNum\":4,\"RegionCategory\":\"化学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"2024/8/13 0:00:00\",\"PubModel\":\"Epub\",\"JCR\":\"Q4\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Acta Crystallographica Section C Structural Chemistry","FirstCategoryId":"92","ListUrlMain":"https://doi.org/10.1107/S2053229624006843","RegionNum":4,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"2024/8/13 0:00:00","PubModel":"Epub","JCR":"Q4","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

氯化钛(IV)与六氟异丙醇钠在六氟异丙醇中反应生成六氟异丙醇钛(IV),在室温下呈液态。从配位溶剂(如乙腈或四氢呋喃)中重结晶后,会形成双溶剂复合物。这些化合物可能是齐格勒-纳塔聚合催化剂。乙腈络合物的结构特征已在之前的研究中得到证实,该络合物采用扭曲的八面体结构,其中腈配体采用顺式构型,氮孤对与金属配位。低熔点的四氢呋喃复合物没有提供适合进行单晶 X 射线分析的晶体。不过,已经获得了氯三(六氟异丙氧基-κO)双(四氢呋喃-κO)钛(IV)[Ti(C3HF6O)3Cl(C4H8O)2]的结构,它采用了扭曲的八面体配位几何,氧化烷配体和相邻的四氢呋喃配体呈面排列,通过金属-氧极坐标相互作用配位。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
Concerning the structures of Lewis base adducts of titanium(IV) hexafluoroisopropoxide.

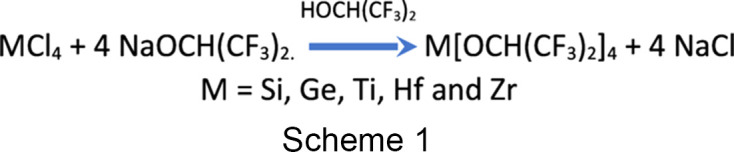

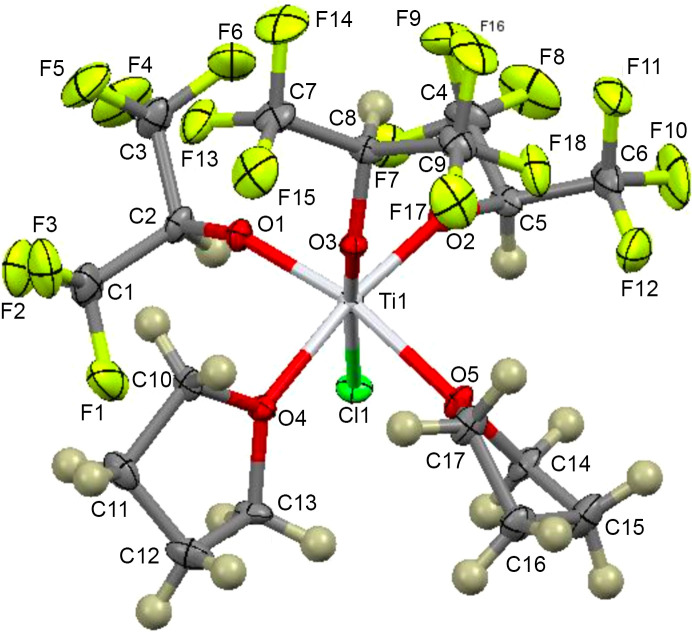

The reaction of titanium(IV) chloride with sodium hexafluoroisopropoxide, carried out in hexafluoroisopropanol, produces titanium(IV) hexafluoroisopropoxide, which is a liquid at room temperature. Recrystallization from coordinating solvents, such as acetonitrile or tetrahydrofuran, results in the formation of bis-solvate complexes. These compounds are of interest as possible Ziegler-Natta polymerization catalysts. The acetonitrile complex had been structurally characterized previously and adopts a distorted octahedral structure in which the nitrile ligands adopt a cis configuration, with nitrogen lone pairs coordinated to the metal. The low-melting tetrahydrofuran complex has not provided crystals suitable for single-crystal X-ray analysis. However, the structure of chloridotris(hexafluoroisopropoxido-κO)bis(tetrahydrofuran-κO)titanium(IV), [Ti(C3HF6O)3Cl(C4H8O)2], has been obtained and adopts a distorted octahedral coordination geometry, with a facial arrangement of the alkoxide ligands and adjacent tetrahydrofuran ligands, coordinated by way of metal-oxygen polar coordinate interactions.
