肺活量测定法和参数反应图法对小气道功能障碍的定义不一致:基于 HRCT 的研究。

IF 4.1 2区 医学 Q1 RADIOLOGY, NUCLEAR MEDICINE & MEDICAL IMAGING Insights into Imaging Pub Date : 2024-10-02 DOI:10.1186/s13244-024-01819-0
Bin Chen, Pan Gao, Yuling Yang, Zongjing Ma, Yingli Sun, Jinjuan Lu, Lin Qi, Ming Li
{"title":"肺活量测定法和参数反应图法对小气道功能障碍的定义不一致:基于 HRCT 的研究。","authors":"Bin Chen, Pan Gao, Yuling Yang, Zongjing Ma, Yingli Sun, Jinjuan Lu, Lin Qi, Ming Li","doi":"10.1186/s13244-024-01819-0","DOIUrl":null,"url":null,"abstract":"<p><strong>Objectives: </strong>To analyze the lung structure of small airway dysfunction (SAD) defined by spirometry and parametric response mapping (PRM) using high-resolution computed tomography (HRCT), and to analyze the predictive factors for SAD.</p><p><strong>Methods: </strong>A prospective study was conducted with 388 participants undergoing pulmonary function test (PFT) and inspiratory-expiratory chest CT scans. The clinical data and HRCT assessments of SAD patients defined by both methods were compared. A prediction model for SAD was constructed based on logistic regression.</p><p><strong>Results: </strong>SAD was defined in 122 individuals by spirometry and 158 by PRM. In HRCT visual assessment, emphysema, tree-in-bud sign, and bronchial wall thickening have higher incidence in SAD defined by each method. (p < 0.001). Quantitative CT showed that spirometry-SAD had thicker airway walls (p < 0.001), smaller lumens (p = 0.011), fewer bronchi (p < 0.001), while PRM-SAD had slender blood vessels. Predictive factors for spirometry-SAD were age, male gender, the volume percentage of emphysema in PRM (PRM<sup>Emph</sup>), tree-in-bud sign, bronchial wall thickening, bronchial count; for PRM-SAD were age, male gender, BMI, tree-in-bud sign, emphysema, the percentage of blood vessel volume with a cross-sectional area less than 1 mm<sup>2</sup> (BV1/TBV). The area under curve (AUC) values for the fitted predictive models were 0.855 and 0.808 respectively.</p><p><strong>Conclusions: </strong>Compared with PRM, SAD defined by spirometry is more closely related to airway morphology, while PRM is sensitive to early pulmonary dysfunction but may be interfered by pulmonary vessels. Models combining patient information and HRCT assessment have good predictive value for SAD.</p><p><strong>Critical relevance statement: </strong>HRCT reveals lung structural differences in small airway dysfunction defined by spirometry and parametric response mapping. This insight aids in understanding methodological differences and developing radiological tools for small airways that align with pathophysiology.</p><p><strong>Key points: </strong>Spirometry-SAD shows thickened airway walls, narrowed lumen, and reduced branch count, which are closely related to airway morphology. PRM shows good sensitivity to early pulmonary dysfunction, although its assessment of SAD based on gas trapping may be affected by the density of pulmonary vessels and other lung structures. Combining patient information and HRCT features, the fitted model has good predictive performance for SAD defined by both spirometry and PRM (AUC values are 0.855 and 0.808, respectively).</p>","PeriodicalId":13639,"journal":{"name":"Insights into Imaging","volume":"15 1","pages":"233"},"PeriodicalIF":4.1000,"publicationDate":"2024-10-02","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC11447176/pdf/","citationCount":"0","resultStr":"{\"title\":\"Discordant definitions of small airway dysfunction between spirometry and parametric response mapping: the HRCT-based study.\",\"authors\":\"Bin Chen, Pan Gao, Yuling Yang, Zongjing Ma, Yingli Sun, Jinjuan Lu, Lin Qi, Ming Li\",\"doi\":\"10.1186/s13244-024-01819-0\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p><strong>Objectives: </strong>To analyze the lung structure of small airway dysfunction (SAD) defined by spirometry and parametric response mapping (PRM) using high-resolution computed tomography (HRCT), and to analyze the predictive factors for SAD.</p><p><strong>Methods: </strong>A prospective study was conducted with 388 participants undergoing pulmonary function test (PFT) and inspiratory-expiratory chest CT scans. The clinical data and HRCT assessments of SAD patients defined by both methods were compared. A prediction model for SAD was constructed based on logistic regression.</p><p><strong>Results: </strong>SAD was defined in 122 individuals by spirometry and 158 by PRM. In HRCT visual assessment, emphysema, tree-in-bud sign, and bronchial wall thickening have higher incidence in SAD defined by each method. (p < 0.001). Quantitative CT showed that spirometry-SAD had thicker airway walls (p < 0.001), smaller lumens (p = 0.011), fewer bronchi (p < 0.001), while PRM-SAD had slender blood vessels. Predictive factors for spirometry-SAD were age, male gender, the volume percentage of emphysema in PRM (PRM<sup>Emph</sup>), tree-in-bud sign, bronchial wall thickening, bronchial count; for PRM-SAD were age, male gender, BMI, tree-in-bud sign, emphysema, the percentage of blood vessel volume with a cross-sectional area less than 1 mm<sup>2</sup> (BV1/TBV). The area under curve (AUC) values for the fitted predictive models were 0.855 and 0.808 respectively.</p><p><strong>Conclusions: </strong>Compared with PRM, SAD defined by spirometry is more closely related to airway morphology, while PRM is sensitive to early pulmonary dysfunction but may be interfered by pulmonary vessels. Models combining patient information and HRCT assessment have good predictive value for SAD.</p><p><strong>Critical relevance statement: </strong>HRCT reveals lung structural differences in small airway dysfunction defined by spirometry and parametric response mapping. This insight aids in understanding methodological differences and developing radiological tools for small airways that align with pathophysiology.</p><p><strong>Key points: </strong>Spirometry-SAD shows thickened airway walls, narrowed lumen, and reduced branch count, which are closely related to airway morphology. PRM shows good sensitivity to early pulmonary dysfunction, although its assessment of SAD based on gas trapping may be affected by the density of pulmonary vessels and other lung structures. Combining patient information and HRCT features, the fitted model has good predictive performance for SAD defined by both spirometry and PRM (AUC values are 0.855 and 0.808, respectively).</p>\",\"PeriodicalId\":13639,\"journal\":{\"name\":\"Insights into Imaging\",\"volume\":\"15 1\",\"pages\":\"233\"},\"PeriodicalIF\":4.1000,\"publicationDate\":\"2024-10-02\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC11447176/pdf/\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Insights into Imaging\",\"FirstCategoryId\":\"3\",\"ListUrlMain\":\"https://doi.org/10.1186/s13244-024-01819-0\",\"RegionNum\":2,\"RegionCategory\":\"医学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"RADIOLOGY, NUCLEAR MEDICINE & MEDICAL IMAGING\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Insights into Imaging","FirstCategoryId":"3","ListUrlMain":"https://doi.org/10.1186/s13244-024-01819-0","RegionNum":2,"RegionCategory":"医学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"RADIOLOGY, NUCLEAR MEDICINE & MEDICAL IMAGING","Score":null,"Total":0}
引用次数: 0

摘要

研究目的利用高分辨率计算机断层扫描(HRCT)分析肺功能测试和参数响应图(PRM)定义的小气道功能障碍(SAD)的肺部结构,并分析SAD的预测因素:一项前瞻性研究对 388 名参与者进行了肺功能测试(PFT)和吸气-呼气胸部 CT 扫描。比较了两种方法定义的 SAD 患者的临床数据和 HRCT 评估结果。根据逻辑回归建立了 SAD 预测模型:结果:122 人通过肺活量测定被定义为 SAD,158 人通过 PRM 被定义为 SAD。在 HRCT 视觉评估中,肺气肿、树苞征和支气管壁增厚在两种方法定义的 SAD 中都有较高的发生率。(P Emph)、树苞征、支气管壁增厚、支气管数量;PRM-SAD 的指标为年龄、男性性别、体重指数、树苞征、肺气肿、横截面积小于 1 平方毫米的血管体积百分比(BV1/TBV)。拟合预测模型的曲线下面积(AUC)值分别为 0.855 和 0.808:结论:与 PRM 相比,由肺活量测定法定义的 SAD 与气道形态更密切相关,而 PRM 对早期肺功能障碍敏感,但可能受到肺血管的干扰。结合患者信息和 HRCT 评估的模型对 SAD 具有良好的预测价值:HRCT 揭示了肺活量测定法和参数反应图法所定义的小气道功能障碍的肺部结构差异。这一洞察力有助于理解方法上的差异,并开发出符合病理生理学的小气道放射学工具:要点:肺活量-SAD 显示气道壁增厚、管腔狭窄和支数减少,这与气道形态密切相关。PRM对早期肺功能障碍具有良好的敏感性,但其基于气体捕获的SAD评估可能会受到肺血管密度和其他肺部结构的影响。结合患者信息和 HRCT 特征,拟合模型对肺活量测定和 PRM 所定义的 SAD 都具有良好的预测性能(AUC 值分别为 0.855 和 0.808)。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
Discordant definitions of small airway dysfunction between spirometry and parametric response mapping: the HRCT-based study.

Objectives: To analyze the lung structure of small airway dysfunction (SAD) defined by spirometry and parametric response mapping (PRM) using high-resolution computed tomography (HRCT), and to analyze the predictive factors for SAD.

Methods: A prospective study was conducted with 388 participants undergoing pulmonary function test (PFT) and inspiratory-expiratory chest CT scans. The clinical data and HRCT assessments of SAD patients defined by both methods were compared. A prediction model for SAD was constructed based on logistic regression.

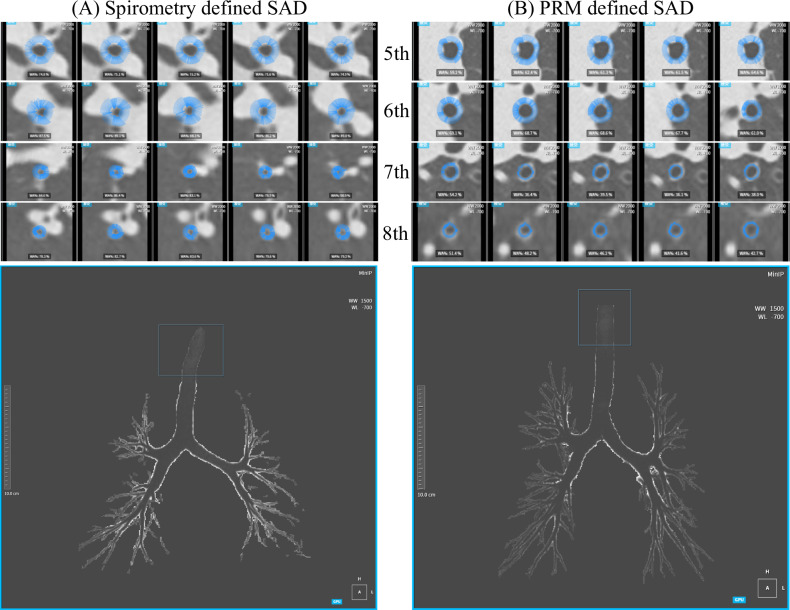

Results: SAD was defined in 122 individuals by spirometry and 158 by PRM. In HRCT visual assessment, emphysema, tree-in-bud sign, and bronchial wall thickening have higher incidence in SAD defined by each method. (p < 0.001). Quantitative CT showed that spirometry-SAD had thicker airway walls (p < 0.001), smaller lumens (p = 0.011), fewer bronchi (p < 0.001), while PRM-SAD had slender blood vessels. Predictive factors for spirometry-SAD were age, male gender, the volume percentage of emphysema in PRM (PRMEmph), tree-in-bud sign, bronchial wall thickening, bronchial count; for PRM-SAD were age, male gender, BMI, tree-in-bud sign, emphysema, the percentage of blood vessel volume with a cross-sectional area less than 1 mm2 (BV1/TBV). The area under curve (AUC) values for the fitted predictive models were 0.855 and 0.808 respectively.

Conclusions: Compared with PRM, SAD defined by spirometry is more closely related to airway morphology, while PRM is sensitive to early pulmonary dysfunction but may be interfered by pulmonary vessels. Models combining patient information and HRCT assessment have good predictive value for SAD.

Critical relevance statement: HRCT reveals lung structural differences in small airway dysfunction defined by spirometry and parametric response mapping. This insight aids in understanding methodological differences and developing radiological tools for small airways that align with pathophysiology.

Key points: Spirometry-SAD shows thickened airway walls, narrowed lumen, and reduced branch count, which are closely related to airway morphology. PRM shows good sensitivity to early pulmonary dysfunction, although its assessment of SAD based on gas trapping may be affected by the density of pulmonary vessels and other lung structures. Combining patient information and HRCT features, the fitted model has good predictive performance for SAD defined by both spirometry and PRM (AUC values are 0.855 and 0.808, respectively).
