软碳Carbon@Coal-Derived硬碳在sib中增强钠储存的孔隙结构调制与缺陷工程

IF 6.2 1区 化学 Q1 CHEMISTRY, INORGANIC & NUCLEAR Inorganic Chemistry Frontiers Pub Date : 2025-03-24 DOI:10.1039/D4QI03237C
Xinhui Jin, Haoyu Ma, Guoping Liu, Xikun Zhang, Dong Wang, Dejie Mo, Jiangyan Xie, Lirong Feng, Maochun Wu, Baolian Su and Xiaohui Guo
{"title":"软碳Carbon@Coal-Derived硬碳在sib中增强钠储存的孔隙结构调制与缺陷工程","authors":"Xinhui Jin, Haoyu Ma, Guoping Liu, Xikun Zhang, Dong Wang, Dejie Mo, Jiangyan Xie, Lirong Feng, Maochun Wu, Baolian Su and Xiaohui Guo","doi":"10.1039/D4QI03237C","DOIUrl":null,"url":null,"abstract":"<p >Hard carbon (HC) is regarded as the most promising commercial anode material for sodium-ion batteries (SIBs) due to its low cost, abundant sources, large reversible capacity, and suitability. Nevertheless, HC suffers from low initial coulombic efficiency (ICE), poor rate performance, and long-term cycling performance, significantly restricting its practical application. Herein, we proceed with defined regulation of the microcrystalline structure of coal-derived HC, which leads to reduced surface defects and increased interlayer spacing, further enhancing the sodium storage capacity of coal-derived HC as an anode material for SIBs by coating porous HC with soft carbon (SC). Meanwhile, we successfully synthesized high-performance SC@HC composite materials through chemical crosslinking reactions by innovatively adopting the sol–gel method and SC coating for the complex composition of coal. The SC@HC composite material as an anode in SIBs can deliver a reversible capacity of 320 mA h g<small><sup>−1</sup></small> at 0.01 A g<small><sup>−1</sup></small>, a high ICE of 89%, and good cycling stability (capacity retention of 80% after 400 cycles at 1 A g<small><sup>−1</sup></small>). This work can rationally guide the design of low-defect and much more closed pore coal-derived HC materials and provide a feasible route for the development of high-performance HC-based anode materials for SIB applications.</p>","PeriodicalId":79,"journal":{"name":"Inorganic Chemistry Frontiers","volume":" 12","pages":" 4106-4114"},"PeriodicalIF":6.2000,"publicationDate":"2025-03-24","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Pore structure modulation and defect engineering of soft carbon@coal-derived hard carbon for enhanced sodium storage application in SIBs†\",\"authors\":\"Xinhui Jin, Haoyu Ma, Guoping Liu, Xikun Zhang, Dong Wang, Dejie Mo, Jiangyan Xie, Lirong Feng, Maochun Wu, Baolian Su and Xiaohui Guo\",\"doi\":\"10.1039/D4QI03237C\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p >Hard carbon (HC) is regarded as the most promising commercial anode material for sodium-ion batteries (SIBs) due to its low cost, abundant sources, large reversible capacity, and suitability. Nevertheless, HC suffers from low initial coulombic efficiency (ICE), poor rate performance, and long-term cycling performance, significantly restricting its practical application. Herein, we proceed with defined regulation of the microcrystalline structure of coal-derived HC, which leads to reduced surface defects and increased interlayer spacing, further enhancing the sodium storage capacity of coal-derived HC as an anode material for SIBs by coating porous HC with soft carbon (SC). Meanwhile, we successfully synthesized high-performance SC@HC composite materials through chemical crosslinking reactions by innovatively adopting the sol–gel method and SC coating for the complex composition of coal. The SC@HC composite material as an anode in SIBs can deliver a reversible capacity of 320 mA h g<small><sup>−1</sup></small> at 0.01 A g<small><sup>−1</sup></small>, a high ICE of 89%, and good cycling stability (capacity retention of 80% after 400 cycles at 1 A g<small><sup>−1</sup></small>). This work can rationally guide the design of low-defect and much more closed pore coal-derived HC materials and provide a feasible route for the development of high-performance HC-based anode materials for SIB applications.</p>\",\"PeriodicalId\":79,\"journal\":{\"name\":\"Inorganic Chemistry Frontiers\",\"volume\":\" 12\",\"pages\":\" 4106-4114\"},\"PeriodicalIF\":6.2000,\"publicationDate\":\"2025-03-24\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Inorganic Chemistry Frontiers\",\"FirstCategoryId\":\"92\",\"ListUrlMain\":\"https://pubs.rsc.org/en/content/articlelanding/2025/qi/d4qi03237c\",\"RegionNum\":1,\"RegionCategory\":\"化学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, INORGANIC & NUCLEAR\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Inorganic Chemistry Frontiers","FirstCategoryId":"92","ListUrlMain":"https://pubs.rsc.org/en/content/articlelanding/2025/qi/d4qi03237c","RegionNum":1,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, INORGANIC & NUCLEAR","Score":null,"Total":0}
引用次数: 0

摘要

硬碳(HC)由于其成本低、来源丰富、可逆容量大、适用性强等优点,被认为是钠离子电池(sib)最有前途的商用负极材料。然而,HC存在初始库仑效率(ICE)低、速率性能差、循环时间长等问题,严重制约了其实际应用。在此基础上,我们对煤源HC的微晶结构进行了明确的调控,得到了表面缺陷的减少和层间间距的增加,并通过在多孔HC上涂上软碳(SC)进一步提高了煤源HC作为sib阳极材料的储钠能力。同时,我们创新地采用溶胶-凝胶法和SC涂层对煤的复杂成分进行化学交联反应,成功合成了高性能的SC@HC复合材料。SC@HC复合材料作为sib的阳极,在0.01 a /g下可提供320 mAh/g的可逆容量,高达89%的ICE,以及良好的循环稳定性(在1 a /g下循环400次后容量保持率为80%)。该工作可以合理指导低缺陷、孔隙封闭性更强的煤基HC材料的设计,为高性能sib负极材料的开发提供一条可行的途径。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

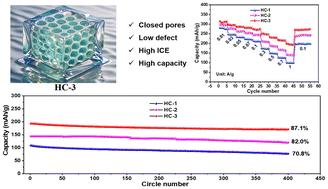

摘要图片

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
Pore structure modulation and defect engineering of soft carbon@coal-derived hard carbon for enhanced sodium storage application in SIBs†

Hard carbon (HC) is regarded as the most promising commercial anode material for sodium-ion batteries (SIBs) due to its low cost, abundant sources, large reversible capacity, and suitability. Nevertheless, HC suffers from low initial coulombic efficiency (ICE), poor rate performance, and long-term cycling performance, significantly restricting its practical application. Herein, we proceed with defined regulation of the microcrystalline structure of coal-derived HC, which leads to reduced surface defects and increased interlayer spacing, further enhancing the sodium storage capacity of coal-derived HC as an anode material for SIBs by coating porous HC with soft carbon (SC). Meanwhile, we successfully synthesized high-performance SC@HC composite materials through chemical crosslinking reactions by innovatively adopting the sol–gel method and SC coating for the complex composition of coal. The SC@HC composite material as an anode in SIBs can deliver a reversible capacity of 320 mA h g−1 at 0.01 A g−1, a high ICE of 89%, and good cycling stability (capacity retention of 80% after 400 cycles at 1 A g−1). This work can rationally guide the design of low-defect and much more closed pore coal-derived HC materials and provide a feasible route for the development of high-performance HC-based anode materials for SIB applications.
