双齿锚定超湿自组装分子层钙钛矿/硅串联太阳能电池达到32%的效率

IF 17.6 1区 化学 Q1 CHEMISTRY, MULTIDISCIPLINARY Angewandte Chemie International Edition Pub Date : 2025-04-02 DOI:10.1002/anie.202502730
Chi Li, Yong Chen, Yuheng Li, Zhewei Zhang, Jing Yang, Yao Wang, Lijie Gong, Zhen Yuan, Lusheng Liang, Siyi Liu, Yongxin Zhu, Chongyan Lian, Mustafa Haider, Tie Guo, Xiaohua Xu, Dongdong Li, Enbing Bi, Peng Gao
{"title":"双齿锚定超湿自组装分子层钙钛矿/硅串联太阳能电池达到32%的效率","authors":"Chi Li,&nbsp;Yong Chen,&nbsp;Yuheng Li,&nbsp;Zhewei Zhang,&nbsp;Jing Yang,&nbsp;Yao Wang,&nbsp;Lijie Gong,&nbsp;Zhen Yuan,&nbsp;Lusheng Liang,&nbsp;Siyi Liu,&nbsp;Yongxin Zhu,&nbsp;Chongyan Lian,&nbsp;Mustafa Haider,&nbsp;Tie Guo,&nbsp;Xiaohua Xu,&nbsp;Dongdong Li,&nbsp;Enbing Bi,&nbsp;Peng Gao","doi":"10.1002/anie.202502730","DOIUrl":null,"url":null,"abstract":"<p>The inhomogeneity of hole-selective self-assembled molecular layers (SAMLs) often arises from the insufficient bonding between anchors and metal oxide, particularly on textured silicon surfaces when fabricating monolithic perovskite/silicon tandem solar cells (P/S-TSCs) and the hydrophobic carbazole complicates the fabrication of high-quality perovskite films. To address this, we developed a novel bidentate-anchored superwetting aromatic SAM based on an upside-down carbazole core as a hole-selective layer (HSL), denoted as ((9H-carbazole-3,6-diyl)bis(4,1-phenylene))bis(phosphonic acid) (2PhPA-CzH). The bisphosphonate-anchored exhibited enhanced adsorption capabilities and efficient hole extraction/transport, and the reversely substituted carbazole ring contributed a friendly super wetting underlayer that enabled high-quality perovskite films with minimized energetic mismatches, which 2PhPA-CzH played a pivotal role in dual interfacial energy regulation. Through these advancements, the optimized wide-bandgap (1.68 eV) PSCs demonstrated an improved PCE of 22.83% and excellent stability with T<sub>90</sub> exceeding 1000 h under damp-heat conditions (ISOS-D-3, 85% RH, 85 °C), representing one of the best performances for SAMs as HSL-based PSCs. Notably, 2PhPA-CzH-functionalized recombination layers extended to submicron-pyramid texture SHJ to fabricate P/S-TSCs, achieving an impressive efficiency of 32.19% at an active area of 1 cm<sup>2</sup> (certified 31.54%) while maintaining excellent photostability. This work offers guidance for designing multidentate-anchored SAMs to realize record PCE and excellent stability in P/S-TSCs.</p>","PeriodicalId":125,"journal":{"name":"Angewandte Chemie International Edition","volume":"64 23","pages":""},"PeriodicalIF":17.6000,"publicationDate":"2025-04-02","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":"{\"title\":\"Achieving 32% Efficiency in Perovskite/Silicon Tandem Solar Cells with Bidentate-Anchored Superwetting Self-Assembled Molecular Layers\",\"authors\":\"Chi Li,&nbsp;Yong Chen,&nbsp;Yuheng Li,&nbsp;Zhewei Zhang,&nbsp;Jing Yang,&nbsp;Yao Wang,&nbsp;Lijie Gong,&nbsp;Zhen Yuan,&nbsp;Lusheng Liang,&nbsp;Siyi Liu,&nbsp;Yongxin Zhu,&nbsp;Chongyan Lian,&nbsp;Mustafa Haider,&nbsp;Tie Guo,&nbsp;Xiaohua Xu,&nbsp;Dongdong Li,&nbsp;Enbing Bi,&nbsp;Peng Gao\",\"doi\":\"10.1002/anie.202502730\",\"DOIUrl\":null,\"url\":null,\"abstract\":\"<p>The inhomogeneity of hole-selective self-assembled molecular layers (SAMLs) often arises from the insufficient bonding between anchors and metal oxide, particularly on textured silicon surfaces when fabricating monolithic perovskite/silicon tandem solar cells (P/S-TSCs) and the hydrophobic carbazole complicates the fabrication of high-quality perovskite films. To address this, we developed a novel bidentate-anchored superwetting aromatic SAM based on an upside-down carbazole core as a hole-selective layer (HSL), denoted as ((9H-carbazole-3,6-diyl)bis(4,1-phenylene))bis(phosphonic acid) (2PhPA-CzH). The bisphosphonate-anchored exhibited enhanced adsorption capabilities and efficient hole extraction/transport, and the reversely substituted carbazole ring contributed a friendly super wetting underlayer that enabled high-quality perovskite films with minimized energetic mismatches, which 2PhPA-CzH played a pivotal role in dual interfacial energy regulation. Through these advancements, the optimized wide-bandgap (1.68 eV) PSCs demonstrated an improved PCE of 22.83% and excellent stability with T<sub>90</sub> exceeding 1000 h under damp-heat conditions (ISOS-D-3, 85% RH, 85 °C), representing one of the best performances for SAMs as HSL-based PSCs. Notably, 2PhPA-CzH-functionalized recombination layers extended to submicron-pyramid texture SHJ to fabricate P/S-TSCs, achieving an impressive efficiency of 32.19% at an active area of 1 cm<sup>2</sup> (certified 31.54%) while maintaining excellent photostability. This work offers guidance for designing multidentate-anchored SAMs to realize record PCE and excellent stability in P/S-TSCs.</p>\",\"PeriodicalId\":125,\"journal\":{\"name\":\"Angewandte Chemie International Edition\",\"volume\":\"64 23\",\"pages\":\"\"},\"PeriodicalIF\":17.6000,\"publicationDate\":\"2025-04-02\",\"publicationTypes\":\"Journal Article\",\"fieldsOfStudy\":null,\"isOpenAccess\":false,\"openAccessPdf\":\"\",\"citationCount\":\"0\",\"resultStr\":null,\"platform\":\"Semanticscholar\",\"paperid\":null,\"PeriodicalName\":\"Angewandte Chemie International Edition\",\"FirstCategoryId\":\"92\",\"ListUrlMain\":\"https://onlinelibrary.wiley.com/doi/10.1002/anie.202502730\",\"RegionNum\":1,\"RegionCategory\":\"化学\",\"ArticlePicture\":[],\"TitleCN\":null,\"AbstractTextCN\":null,\"PMCID\":null,\"EPubDate\":\"\",\"PubModel\":\"\",\"JCR\":\"Q1\",\"JCRName\":\"CHEMISTRY, MULTIDISCIPLINARY\",\"Score\":null,\"Total\":0}","platform":"Semanticscholar","paperid":null,"PeriodicalName":"Angewandte Chemie International Edition","FirstCategoryId":"92","ListUrlMain":"https://onlinelibrary.wiley.com/doi/10.1002/anie.202502730","RegionNum":1,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

摘要

采用一种新型双齿锚定的超湿芳香自组装单层作为倒宽带隙聚酰二甲酯的孔选择层(HSL)。反取代咔唑方法对于促进强效HSL的形成,提高井眼萃取效率至关重要。优化后的宽禁带PSCs的功率转换效率(PCE)为22.83%,制备的P/S-TSCs的效率为32.19%(经认证为31.54%),同时保持了优异的光稳定性。
本文章由计算机程序翻译,如有差异,请以英文原文为准。

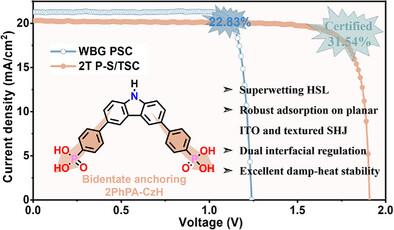

摘要图片

摘要图片

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
Achieving 32% Efficiency in Perovskite/Silicon Tandem Solar Cells with Bidentate-Anchored Superwetting Self-Assembled Molecular Layers

The inhomogeneity of hole-selective self-assembled molecular layers (SAMLs) often arises from the insufficient bonding between anchors and metal oxide, particularly on textured silicon surfaces when fabricating monolithic perovskite/silicon tandem solar cells (P/S-TSCs) and the hydrophobic carbazole complicates the fabrication of high-quality perovskite films. To address this, we developed a novel bidentate-anchored superwetting aromatic SAM based on an upside-down carbazole core as a hole-selective layer (HSL), denoted as ((9H-carbazole-3,6-diyl)bis(4,1-phenylene))bis(phosphonic acid) (2PhPA-CzH). The bisphosphonate-anchored exhibited enhanced adsorption capabilities and efficient hole extraction/transport, and the reversely substituted carbazole ring contributed a friendly super wetting underlayer that enabled high-quality perovskite films with minimized energetic mismatches, which 2PhPA-CzH played a pivotal role in dual interfacial energy regulation. Through these advancements, the optimized wide-bandgap (1.68 eV) PSCs demonstrated an improved PCE of 22.83% and excellent stability with T90 exceeding 1000 h under damp-heat conditions (ISOS-D-3, 85% RH, 85 °C), representing one of the best performances for SAMs as HSL-based PSCs. Notably, 2PhPA-CzH-functionalized recombination layers extended to submicron-pyramid texture SHJ to fabricate P/S-TSCs, achieving an impressive efficiency of 32.19% at an active area of 1 cm2 (certified 31.54%) while maintaining excellent photostability. This work offers guidance for designing multidentate-anchored SAMs to realize record PCE and excellent stability in P/S-TSCs.

求助全文
通过发布文献求助,成功后即可免费获取论文全文。 去求助
来源期刊
CiteScore
26.60
自引率
6.60%
发文量
3549
审稿时长
1.5 months
期刊介绍: Angewandte Chemie, a journal of the German Chemical Society (GDCh), maintains a leading position among scholarly journals in general chemistry with an impressive Impact Factor of 16.6 (2022 Journal Citation Reports, Clarivate, 2023). Published weekly in a reader-friendly format, it features new articles almost every day. Established in 1887, Angewandte Chemie is a prominent chemistry journal, offering a dynamic blend of Review-type articles, Highlights, Communications, and Research Articles on a weekly basis, making it unique in the field.
