A sprayable H-bonding coumarin-containing compound for photoalignment of liquid crystals on a curved surface†

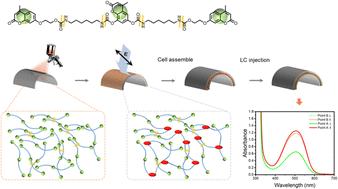

The success of the photoalignment of liquid crystals provides displays and other optical applications with more possibilities, compared with the surface rubbing technique. Especially, it is highly required for applications requiring liquid crystal alignment on curved surfaces, for which surface rubbing is hard to apply. Photodimerization of photoactive species coated on the substrate under linearly polarized light irradiation is one of the photoalignment methods. In this work, we present a study on the photoalignment behaviors of a novel low-molecular-weight, H-bond donor, acceptor, and coumarin-containing compound that can be spray-coated on curved surfaces. The photoalignment of liquid crystals using this coumarin-containing compound is investigated by monitoring the polarized absorption of a dichroic dye-doped nematic liquid crystal. It is found that the order parameter can reach about 0.5 by adjusting the thickness of the spray-coated layer and the polarized light intensity. In addition to liquid crystal alignment on a curved surface, the reversible photoreaction of coumarin is explored to reprogram the photoalignment layer to achieve control in either the degree or direction of the liquid crystal alignment. The results show that the novel structure of the coumarin-containing compound is promising for photoalignment of liquid crystals.
