Measurement of Ambient Dose Equivalent in Compact Proton Therapy using In-house Neutron Moderator-based Poly Allyl Diglycol Carbonate.

Abstract

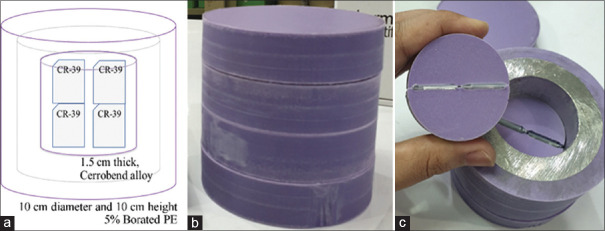

Purpose: The high-energy proton produces the unwanted dose contribution from the secondary neutron. The main purpose of this study is to report the validation results of in-house neutron moderator based on poly allyl diglycol carbonate (CR-39) detector, Chulalongkorn University Neutron Moderator (CUMOD) through the ambient dose equivalent, H*(10) measurement.

Materials and methods: The Particle and Heavy Ion Transport code System (PHITS) Monte Carlo code was used to simulate the neutron response function. The CUMOD was calibrated with ²⁴¹AmBe source calibrator in the range of 100-1000 μSv. The variation of neutron fields was generated employing different proton treatment plans covering most of the clinical scenarios. The ambient dose equivalents, H*(10), evaluated employing CUMOD were compared to those obtained with WENDI-II dosimeter.

Results: The linear relationship between CUMOD and WENDI-II responses showed an R² value close to 1. The H*(10) per Gy delivered dose was in the range of 22-105 μSv for a 10 cm × 10 cm field.

Conclusion: The in-house CUMOD neutron moderator can expand the neutron detection dose range of CR-39 detector for ambient dose equivalent. The advantage of CUMODs is its capability to evaluate H*(10) in various positions simultaneously.
