Effect of Heat Treatment on Gradient Microstructure and Tensile Property of Laser Powder Bed Fusion Fabricated 15-5 Precipitation Hardening Stainless Steel
Sheng Cao, Hongyu Liu, Jin Jiang, Ke He, Binghua Lv, Hao Zhang, Lujie Zhang, Jingrong Meng, Hao Deng, Xiaodong Niu
{"title":"Effect of Heat Treatment on Gradient Microstructure and Tensile Property of Laser Powder Bed Fusion Fabricated 15-5 Precipitation Hardening Stainless Steel","authors":"Sheng Cao, Hongyu Liu, Jin Jiang, Ke He, Binghua Lv, Hao Zhang, Lujie Zhang, Jingrong Meng, Hao Deng, Xiaodong Niu","doi":"10.1007/s40195-023-01635-3","DOIUrl":null,"url":null,"abstract":"<p>This work investigated the gradient microstructure evolution and tensile property of LPBF fabricated 15-5 precipitation hardening stainless steel in post-process direct ageing (DA) and solution treating & ageing (STA). The varied microstructures for austenite and small-sized oxide inclusions at different sample heights in the as-built (AB) condition was generally preserved after DA treatment. However, austenite was almost disappeared, and oxide particle grew significantly after the STA treatment. As a result, the tensile property differences in sample top and bottom for AB and DA conditions did not occur in the STA samples. For the influence of post-process heat treatment, the STA condition had the highest yield strength due to the highest volume fraction of nano-sized Cu precipitates. However, the DA specimen had the highest ultimate tensile strength and elongation owing to the considerable amount of austenite phase and associated transformation induced plasticity effect.</p>","PeriodicalId":457,"journal":{"name":"Acta Metallurgica Sinica-English Letters","volume":null,"pages":null},"PeriodicalIF":2.9000,"publicationDate":"2023-12-05","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Acta Metallurgica Sinica-English Letters","FirstCategoryId":"1","ListUrlMain":"https://doi.org/10.1007/s40195-023-01635-3","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"METALLURGY & METALLURGICAL ENGINEERING","Score":null,"Total":0}
引用次数: 0
Abstract

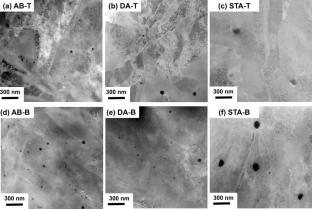

This work investigated the gradient microstructure evolution and tensile property of LPBF fabricated 15-5 precipitation hardening stainless steel in post-process direct ageing (DA) and solution treating & ageing (STA). The varied microstructures for austenite and small-sized oxide inclusions at different sample heights in the as-built (AB) condition was generally preserved after DA treatment. However, austenite was almost disappeared, and oxide particle grew significantly after the STA treatment. As a result, the tensile property differences in sample top and bottom for AB and DA conditions did not occur in the STA samples. For the influence of post-process heat treatment, the STA condition had the highest yield strength due to the highest volume fraction of nano-sized Cu precipitates. However, the DA specimen had the highest ultimate tensile strength and elongation owing to the considerable amount of austenite phase and associated transformation induced plasticity effect.
期刊介绍:
This international journal presents compact reports of significant, original and timely research reflecting progress in metallurgy, materials science and engineering, including materials physics, physical metallurgy, and process metallurgy.
